QT4-25 Interlocking Block Making Machine Price -Factory Direct

QT4-25 Interlocking Block Making Machine Price -Factory Direct photo-1
US$ 42,000 - 43,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Interlock Block Making Machine, QT4-25
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Interlock Block Making Machine, QT4-25
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 25000Pcs/8h
Place of Origin Henan, China
Brand Name Teng Fei
Model Number QT4-25
Voltage 380v
Power 50/60HZ
Dimension(L*W*H) as shown in table
Certification BV
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

QT4-25 interlocking block making machine price
1.BV
2.Machine power:19kw
3.Molding cycle:15-20s
4.Vibration frequency:2800~

QT4-25 interlocking block making machine price -Factory direct





Product Description

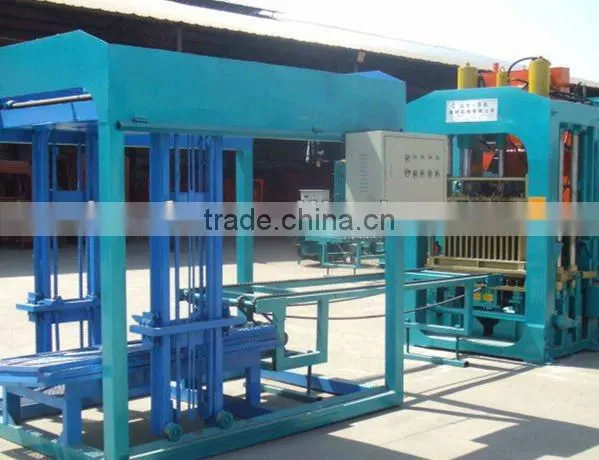

1. Brief Introduction of Our QT4-25 interlocking block making machine price

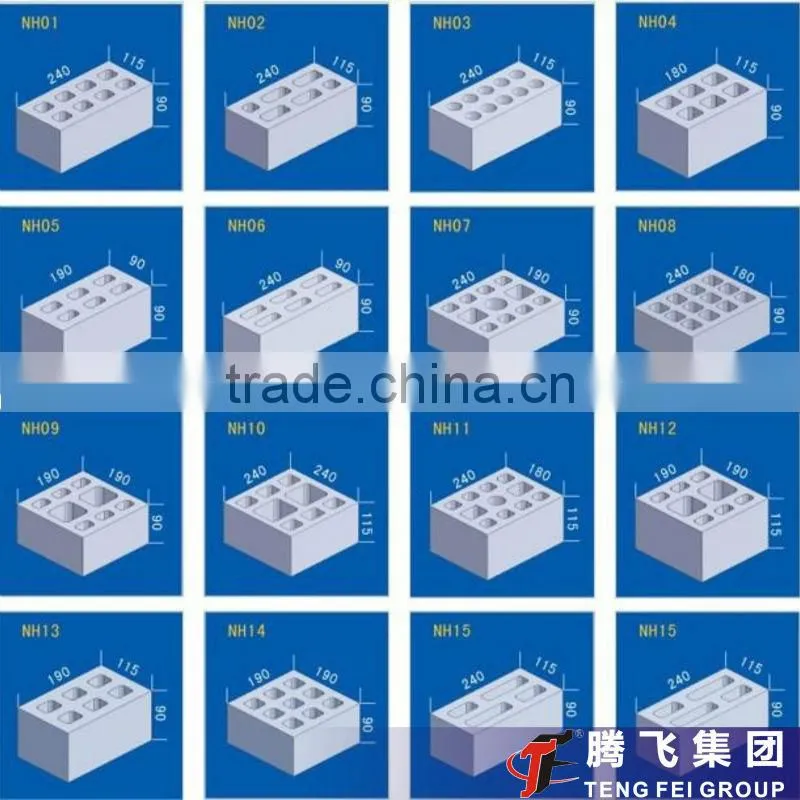

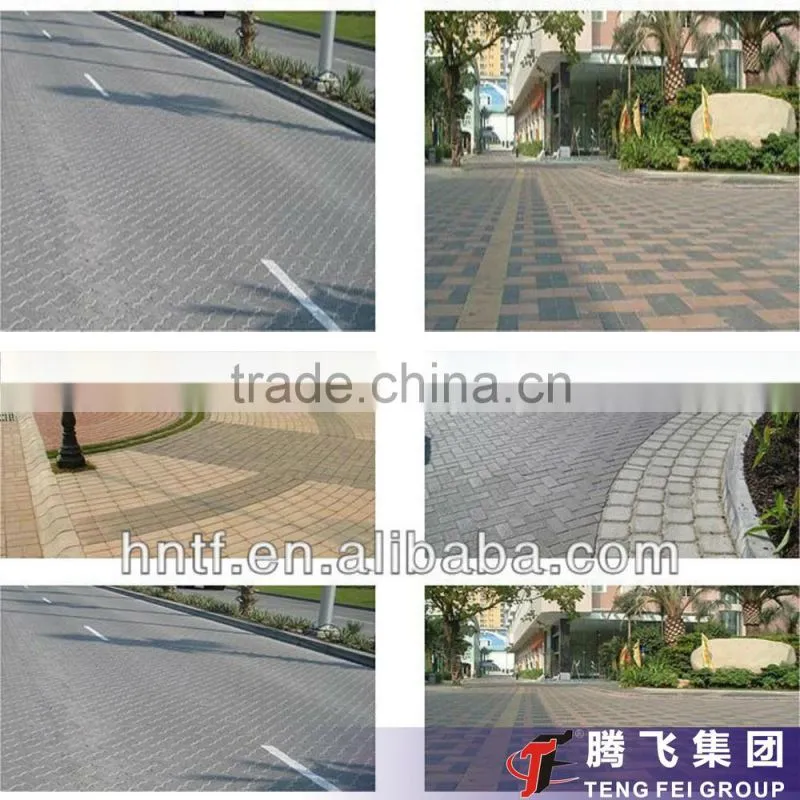

Our well-sold QT series of concrete block making machine is used to produce cement brick, hollow block and colorful paving brick. The raw materials can be: slag, fly ash, stone powder, sand, pebble, cement etc. This equipment is also called free-baking brick machine, that’s to say the final products need not to be sintered, only short time sun drying is ok.
QT4-25 interlocking block making machine price -Factory direct
2. Application of QT4-25 interlocking block making machine price
QT4-25semi-automatic block making machine(semi-automatic means that the machine is operated by one worker through some handles.But all processes are finished by the machine itself.) The moulds can be customized according the demand of customers.
QT4-25(4 stands for the production of hollow blocks like 400*200*200 is 4pieces every mould,and 25stands for every cycle needs 23-25 seconds).
QT4-25 interlocking block making machine price -Factory direct

































































3. Features of Our QT4-25 interlocking block making machine price

  • QT4-25 block machine is one of our newly designed block making machines. With less power, it achieves super strong vibration.
  • It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.
  • It uses 350 type speed reducer to raise and lower the mold, so it greatly increased the usage life of the speed reducer.
  • It combines pressure and super vibration. The lower vibration adopts two 3 KW vibrators and the upper vibration adopts two 1.5 KW vibrators, so the blocks made by this machine has high strength and nice shape. Its performance and product quality are comparable to the large equipment.

QT4-25 interlocking block making machine price -Factory direct



4. Main technical parameters of QT4-25 interlocking block making machine price

Dimension of host machine

3700*2100*23000mm

Host machine power

16.35kw

Molding period

20s

Viberation force

35.5kn

The size of the pallet

850*550*30mm

Power of host machine

23.7kw

Weight of the machine

3t

Mixer model

JDC350



5. Theoretical production capacity of QT4-25 interlocking block making machine price

Size (L*W*H)

Pcs/Mould

Pcs/ Hr

Pcs/ 8Hr

400*100*200

7

1008

8064

400*150*200

5

720

5760

400*200*200

4

576

4608

400*250*200

3

432

3456

230*110*70

20

2880

23040



QT4-25 interlocking block making machine price -Factory directQT4-25 interlocking block making machine price -Factory direct

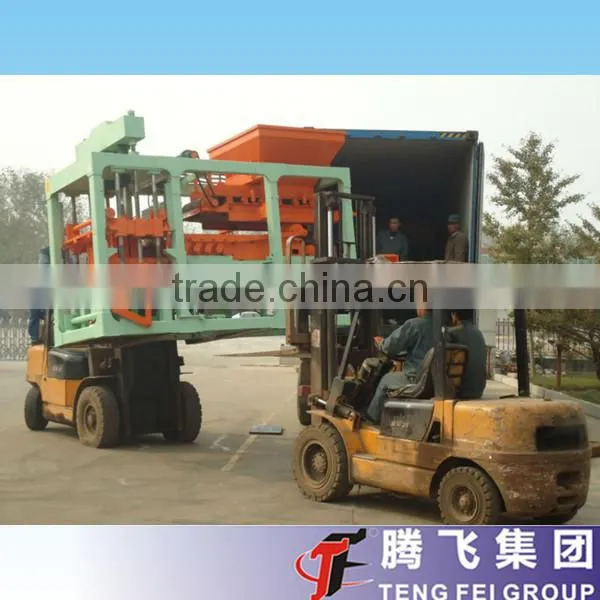

Packaging & Shipping



1.Delivery time: 15 days after receipt of your deposit.

2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.

3.Package:

1).Wire cables are used for fastening the machine on the trailer or inside the container.

2).Cork wood are placed in front or behind the machine to protect it.

3).Plastic film is covered on the machine as a rain-roof.

4).Crane is used during the whole loading.


Our Services



1.Pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.

2.On-purchase service: our company can solve professional technical problems and other related issues for you.

3.After-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.

QT4-25 interlocking block making machine price -Factory direct



FAQ



Why chose Henan Teng Fei?

1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.

2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project

3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.



How long is the warranty?

The warranty period is 12 months.



What services does it provide?

1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.

2.on-purchase service: our company can solve professional technical problems and other related issues for you.

3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.



What is the Teng Fei’s basic philosophy?

Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
