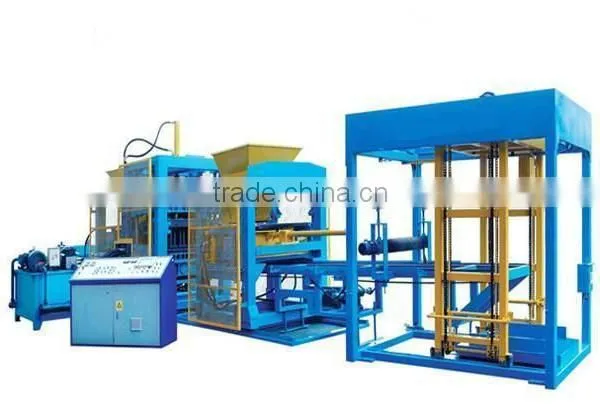

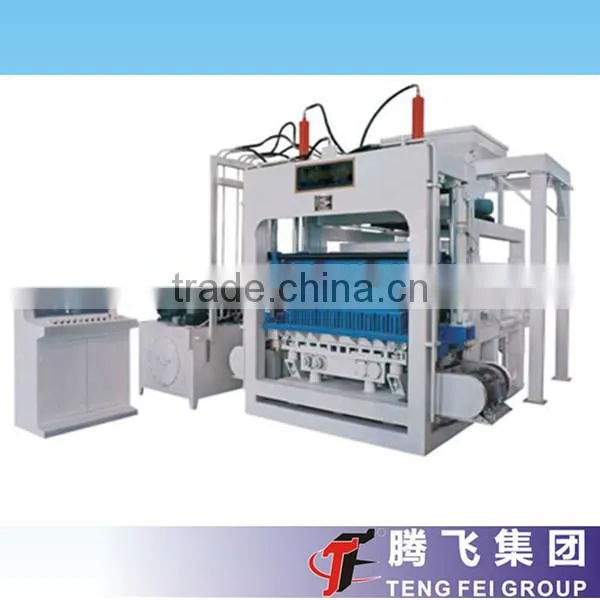

Help CenterNEW Qt5 20 Color Paver Block Making Machine for Sale
Related Products
-
QT10-15 Used Mobile Concrete Block Making Machine for SaleUS$ 78,000 - 79,800MOQ: 1 Set -
QT5-15 Manual Compressed Earth Brick Block Making Machine for SaleUS$ 25,000 - 33,000MOQ: 1 Set
-
QT4-25 Interlocking Block Making Machine Price -Factory DirectUS$ 42,000 - 43,000MOQ: 1 Set
-
QT8-15A Foam Concrete Block Making Machine -Top SellingUS$ 59,000 - 60,000MOQ: 1 Set
-
QT8-15B Diesel Power Block Making MachineUS$ 59,000 - 60,000MOQ: 1 Set
Specifications
new qt5 20 color paver block making machine1.Power:380V
2.Type:QT5-20
3.Machine power:19KW
4.Molding cycle:15-20

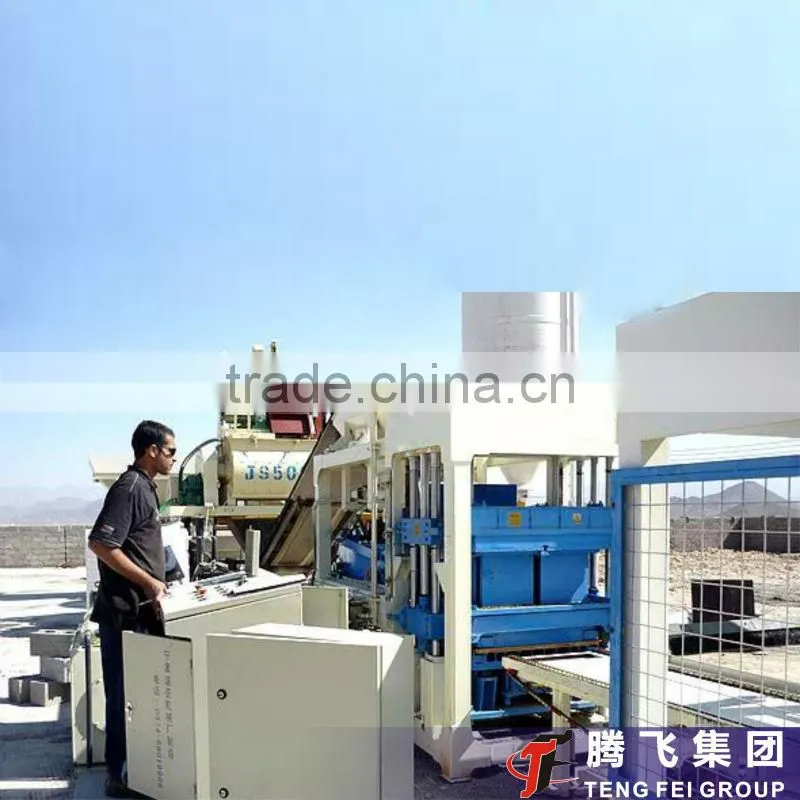

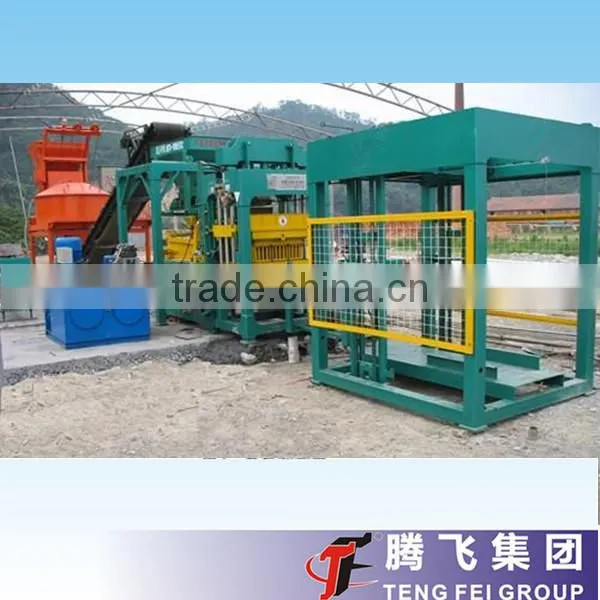

3. Working Principle of new qt5 20 color paver block making machine
- The sand and gravel and other raw materials will be conveyed by the loader into batching machine, measured by electronic meter and burdening according to the computer storage formula (or random adjustment). After measurement, the material will be conveyed by the conveyor into the hopper of concrete mixer machine, and be conveyed into concrete mixer.
- The cement and flyash will be sconveyed by the screw conveyor into cenment and fly ash measure system severally, and be conveyed into concrete mixer in the end. Then water enter in concrete mixer according to the water cement ratio design.
- After mxing corresponding period, the mixing material will be conveyed into storage hopper of block machine by belt conveyor. Then the mixing material will be sent to the mould by the distributing device.
- Centrifugal force produced by the rotation of distributing shaft fabric would send the material to feeding box forcibly, the distributing device returned after feeding. discharge head goes down and at the same time start the vibrator vibration, and vibration compression.
- After moulding, lifting the molding box and the finished product will be extruded and sent to the brick conveyor, after cleaned by the brick face sweeper cleaning machine, the finshed product will be sent to palletizing machine, curing chamber by the forklift in the end.
4. Equipments List of new qt5 20 color paver block making machine
| Item | Description of the configurated equipments | Qty |
| 1 | Hoist machine | 1set |
| 2 | Concrete mixer JS750 | 1set |
| 3 | Belt coneyor | 1set |
| 4 | Block sweeper | 1set |
| 5 | Batching machine PLD1200 | 1set |
| 6 | Cement silo 50T | 1set |
| 7 | Screw conveyor | 1set |
| 8 | Hydarlic station | 1set |
| 9 | Controller | 1set |
| 10 | Mould | 1set |
| 11 | Nylon caps | 16pcs |
| 12 | Tension springs | 8pcs |
| 13 | Barrow | 2pcs |
| 14 | Fittings | 1box |
| 15 | Tools | 1set |

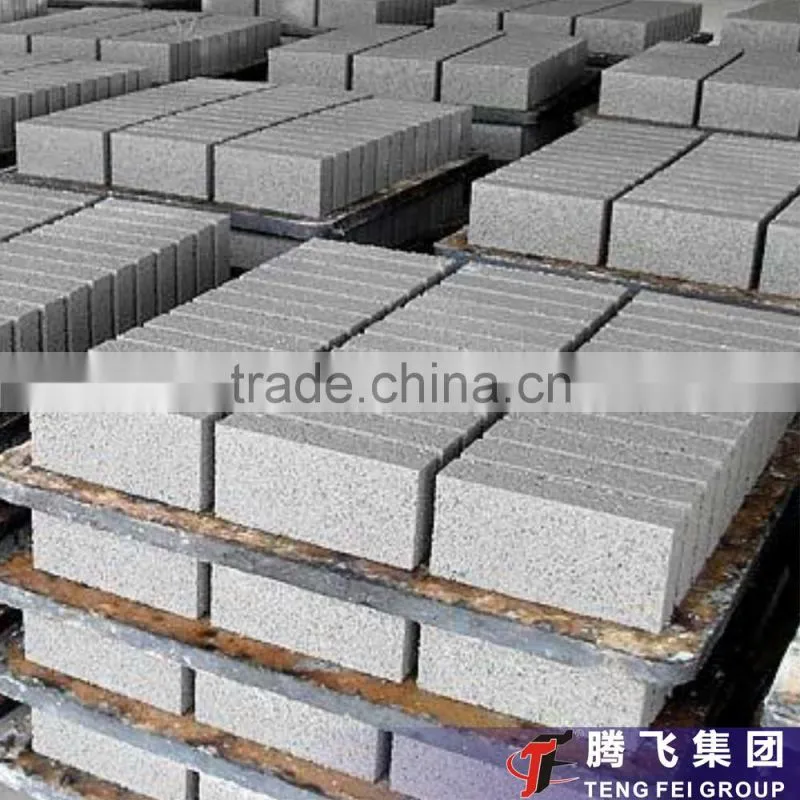

| Mould no. | Block type | Block size and output capacity | Block picture | Pallet pictue |
| 1 | Hollow | 400mm×200mm×200mm 5 pieces/mould 5500 pcs/8h |
|
|
| 2 | Hollow | 400mm×120mm×190mm pieces/mould 10080 pcs/8h |
|
|

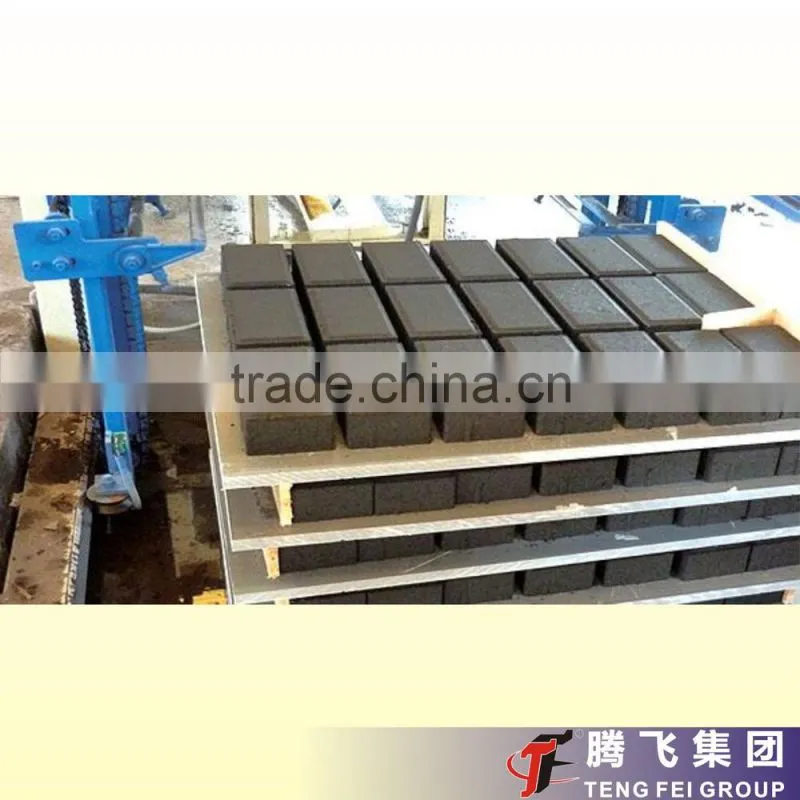

| 3 | Standard | 200mm×100mm×60mm 20 pieces/mould 28800 pcs/8h |
|
|
Note: fully-automatic concrete brick making machine can be customerized.
| 1.Delivery time: 15 days after receipt of your deposit. |
| 2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery. |
|
3.Package: 1).Wire cables are used for fastening the machine on the trailer or inside the container. 2).Cork wood are placed in front or behind the machine to protect it. 3).Plastic film is covered on the machine as a rain-roof. 4).Crane is used during the whole loading. |
| 1.Pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements. |
| 2.On-purchase service: our company can solve professional technical problems and other related issues for you. |
| 3.After-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance. |
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
