Home > Products > Dc Planetary gear motor > 45 mm dc gear motor with encoder and 24v dc motor

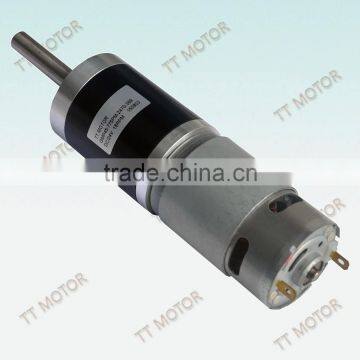

45 mm dc gear motor with encoder and 24v dc motor
- 30000 Piece / Pieces per Month
- HK
- T/T Credit Card
You May Like
Product Details
| Gearing Arrangement | Planetary | Output Torque | 500 Kg.cm | |
| Rated Power | 20 W max | Input Speed | 3500--25000 RPM | |
| Output Speed | 10--550 RPM | Place of Origin | Guangdong, China | |
| Model Number | GMP45-770PM | Brand Name | TT MOTOR |
Product Description
45mm planetary gear motor,
electric motor dc 24v,24v dc motor
1.Automatic curtain machines.Medical equipment,Rotary machine advertising lights
2.Voltage:6.0-24V
3.Speed:as customers' needs
4.Stall Torque: 90kg.cm
5.Low noise,low current no spark
6.Motor with encoder,16 pulse signal
7.Reduction Ratio:1/3.7-3730
8.size:45.0*140.0 mm,140 mm length mini planetary gear motor
9.We can offer the samples first ,the MOQ is 100 pieces ,and the delivery time is 20-25 days.
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GMP45-770PM | 8022-77 | 3.0-8.0 | 6.0 | 120.0 | 2.5 | 100.0 | 15.0 | 2.94 | 30.0 | 100.0 | 24.51 | 250.0 | 100.0 |
27100-168 | 6.0-30.0 | 24.0 | 25.0 | 0.3 | 20.0 | 1.5 | 5.59 | 57.0 | 18.9 | 44.61 | 455.0 | 16.0 | |
7038-5.2 | 8.0-15.0 | 12.0 | 2000.0 | 1.8 | 1600.0 | 10.4 | 0.32 | 3.2 | 82.0 | 2.50 | 25.0 | 84.0 | |
