Product Details
Condition | New | Type | Drying Oven | |
Place of Origin | Henan, China | Brand Name | mingyang | |
Model Number | GT1500 | Voltage | 380V | |
Power(W) | 15kw | Dimension(L*W*H) | 10m | |
Weight | 5000kg, 5000kg | Certification | CE ISO, ISO&CE | |
Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CE approved Best sale wood sawdust dryer | wood chip dryer with factory price 008615039052280

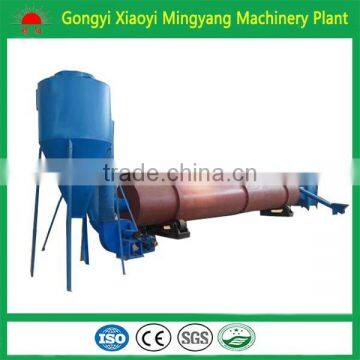

Introduction of wood dryer
Wood sawdust powder drum drying machine adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, sawdsut drying system is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering .
Parameter of wood dryer
Model | GT650 | GT800 | GT1000 | GT1200 | GT1500 |
Capacity kg/h | 600-800 | 800-1000 | 1200-1500 | 1500-2000 | 2000-2500 |
Main Power | 5.5kw | 7.5kw | 7.5kw | 11kw | 15kw |
Air lock power | 1.1kw | 1.5kw | 2.2kw | 2.2kw | 2.2kw |
Weight | 2600kg | 2800kg | 3800kg | 4500kg | 5000kg |
Diameter of roller | 0.68m | 0.8m | 1m | 1.2m | 1.5m |
Length of roller | 9m | 10m | 10m | 10m | 10m |
Speed of roller | 3-5t/m | ||||
Fuel consumption | 80-100kg firewood per hour | ||||
Moisture | From 40-70% to 8-12% |
Features of wood dryer
high efficiency and easy control of drying. high output rotary drum drying system takes advantage of the stability of roller and homogeneity of air. suitable for drying materials of moisture 30-60% It has the larger capacity , can meet the high capacity need
Working principle of wood dryer
The function of the dryer is to dry the excess moisture from the raw material and to be the suitable moisture material that we needed. The firebox produces heat(and the heat producer could be all kinds of fuel except the poisonous materials) ,through the power of the exhaust fan and through the full contacts between the rotary drum and raw material, make the raw material to be heated and then dry the excess moisture. there is a spiral feeding device which is in regular order in the rotary drum, through the fall height of the rotary drum and the full mix of the heat and the raw material, dry the raw material, then the raw material is drawn by the exhaust blower to the pulse pipe and after the pipe, it will be sent to the cyclone to be separated, then the dried raw material will come out.
The Structure of wood dryer :
The structure of the dryer include : firebox, flame path, screw conveyor, rotary drum,
pulse pipe, exhaust blower(fan) and cyclone.
The feature of the dryer: by controlling the heat from the firebox according to the water content of the raw material to achieve the purpose of drying, it also can dry the raw
material which has a big moisture.
We also have other types of dryer for you to choose
Model | Power | Capacity | Drying theMoisture | Weight | The area of land occupied |
HJ-4 | 4kw | 0.3-0.4t/h | 35% | 1t | 8*1.5*3.5m³ |
HJ-6 | 5.5kw | 0.4-0.5t/h | 40% | 1.5t | 10*1.5*3.5m³ |
HJ-8 | 11kw | 0.5-1.8t/h | 40-50% | 2.5t | 14*1.5*4.8m³ |
HJ-10 | 15+0.75kw | 0.6-0.7t/h | 50% | 1.8t | 14*2*3.2m³ |
For the single machine, we use the plywood cases for packing, and for the whole
container machine, we will ask the shipping company send one container to our
factory and we will loading ourself, to make sure the machine are carefully loading
and delivery
Pre-sale Service
1. Free site investigation for clients, provide project consulting, drawings design, project budget and relevant technical data.
2. Customer focus, providing a variety solutions for clients reference to get the most satisfaction option.
On-sale service
1. Strictly conforming to the relevant national standards to process professional installation and debugging. Complete clients using,maintenance and general troubles clearance of technical guidance.
2. After installation, ask for clients to check and accept, solicit clients opinions to fill in the quality acceptance form.
After-sale service
1.Warranty service : The Equipment have one year warranty and long life maintenance, prompt provide the required service to clients after warranty period
2.Telephone service : Set customer hot line ,dealing the problems at once when they in process of working line,dealing the problems at once when they in process of using equipment.
3.Software service : Provide relevant project consultant and software version upgrades for free.
4.after service guarantee : Create customer files, implement the tracking service to customers, provide free annual inspection and regular maintenance.
