Specifications
1.Widely useing in mining .2.Large air-absorption capacity.
3.Low energy consumption.
4.Power operating.
5.CE&ISO9001
Introduction:

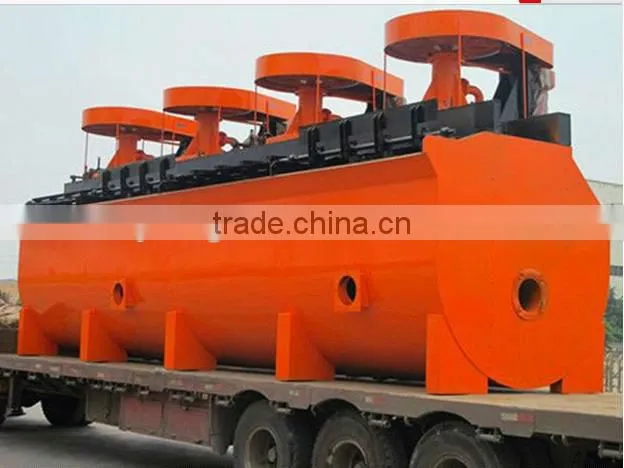

Flotation machine is used to separate non-ferrous metals, ferrous metals, precious metals, non-metallic minerals and chemical raw materials, recycle the useful minerals. The device has the following characteristics: the giant inspiratory volume, low power consumption. Each slot has three features, that’s inhale, absorb the pulp and flotation. It’s automatic flotation circuit; there is no need of any auxiliary equipment. The configuration is horizontal, which can ease the changes of process. Slurry circulation is reasonable; it can reduce the coarse sand deposits to the greatest degree. With pulp surface-controlled device, it’s convenient to adjust.
Features of Flotation Machine:
1.The advantages of large air-absorption capacity.
2.Low energy consumption.
3.Every cell owns three functions: air absorption, slurry absorption, and floatation separation.
4.The cells form a floatation separation loop by itself without any auxiliary equipment.
5.It is allocated horizontally, which favors the change of flow.
6.The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent.
7.There is self-control device on the surface of mineral slurry, that easy to adjust.
8.The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.
Flotation Machine working principle:
The impeller is rotated by V-belt of motor and produces centrifugal effect with negative pressure. Enough air is inhaled into mixed pulp, and pulp mixes with drug at the same time. Mineral sticks on bubble completely and floats on the surface of pulp to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface

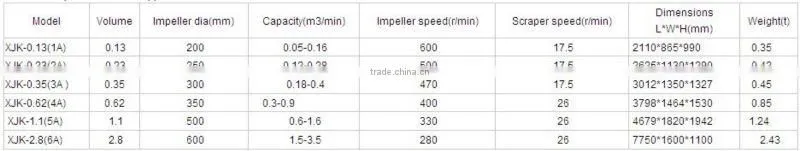

Technical Parameters:
Please feel free to contact me for more details , the prompt reply will be back.
