Specifications
Wet Magnetic Separators :1.large capacity:8-200t/h
2.high magnet intensity:100-600mt
3. 20 years experience
4.CE& ISO900

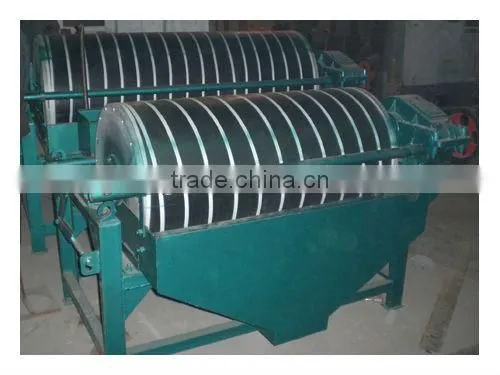

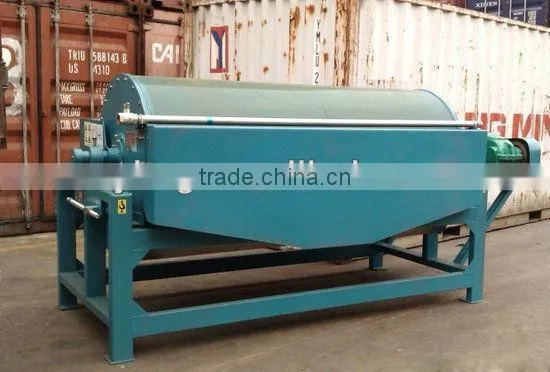

Yuhong 10-200TPH Wet Type Magnetic Separators 20 Years Experience
1. Wet Type Magnetic Separator Introduction:
Magnetic separator machine is designated for wet magnetic separating of material with granularity below 3mm, such as magnetite, magnetic pyrite, roasted ore and ilmenite. It can also be used to remove iron for coal, nonmetal materials, building materials, etc. Our Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications.
2. Wet Type Magnetic Separator Features:
1. Simple structure and easy to maintain.
2. Short magnetic circuit.
3. Little magnetic flux leakage.
4. High magnetic intensity, low energy consumption.
5. Fine beneficiating results.
3. Wet Type Magnetic Separator Principle:
When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and nonmagnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
4. Wet Type Magnetic Separator Parameter:
Model |
Magnetic intensity |
Capacity (t/h) |
Power (kw) |
Weight (kg) |
CTB600×1200 |
1450 |
8-15 |
1.5 |
910 |
CTB600×1800 |
1500 |
15-25 |
2.2 |
1340 |
CTB750×1800 |
1550 |
30-45 |
3 |
2050 |
CTB900×1800 |
1650 |
35-60 |
4 |
3000 |
CTB1050×2400 |
1650 |
60-95 |
5.5 |
5020 |
CTB1200×3000 |
1650 |
80-150 |
7.5 |
7800 |
CTB1500×3000 |
1650 |
120-200 |
11 |
9600 |
