Specifications
Forth Flotation Machine:1.Easy and safe operation
2.Stable performance
3.High efficiency
4.ISO9001:2000

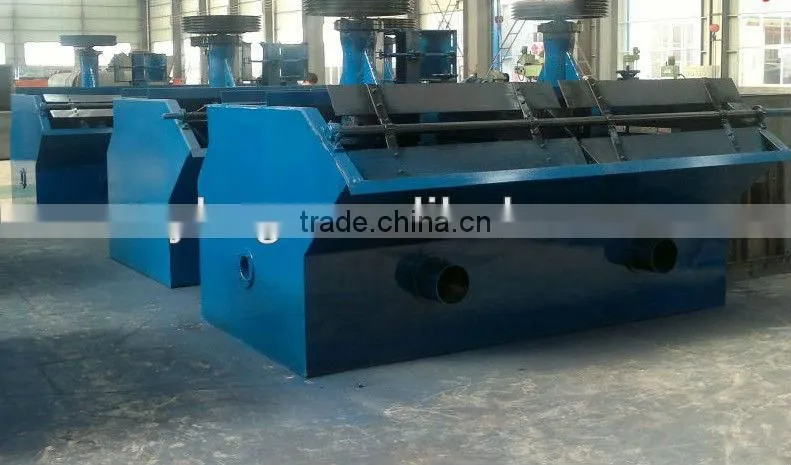

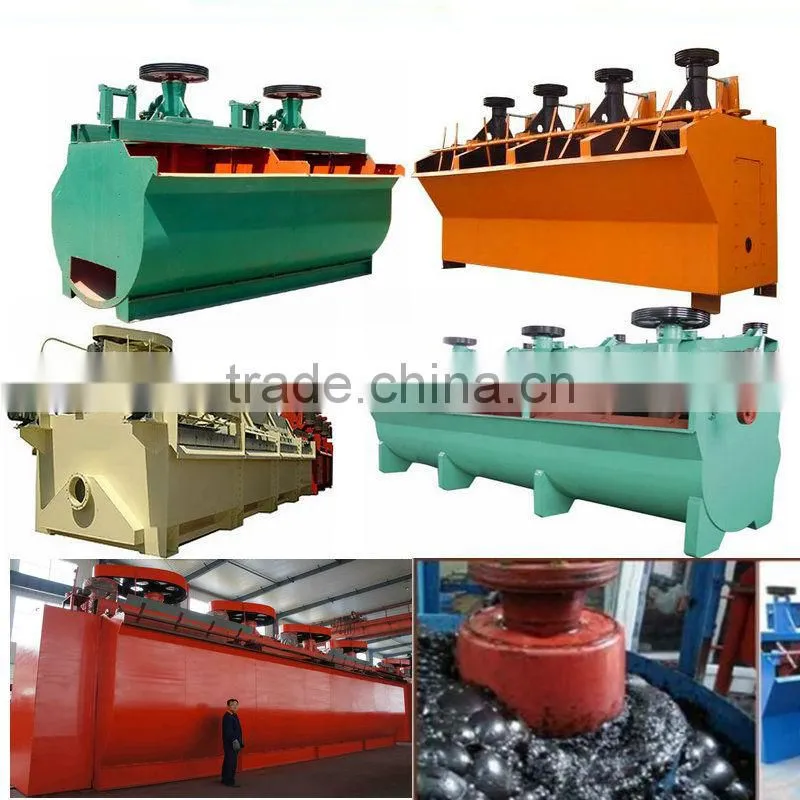

Forth Flotation Machine Introduction:
This machine is used for separating ferrous and non-ferrous metals.It can also be used for separating non-metals like coal and fluorite.The impeller of the principal axis rotates by the driven of electric motor through the V-belt and then produces centrifugal function resulting in negative pressure.On one hand,it intakes enough air to mix with slurry.On the other hand,it mixers slurry and medicine,fine the foam in order that the mineral can stick on the foam,and then it turns into mineral foam after flotating on the slurry.Adjust the height of stopper to control fluid level in order that the available foam can be scrapped out by scrappers
Features of Flotation Machine:
1. Large inhaling capacity and low consumption.
2. Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3. Process is easy to be changed.
4. Reasonable circulation of slurry decreases coarse sand sedimentation.
5. Automatic controlling device makes adjustment more convenient.
Flotation Machine working principle:
When it works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

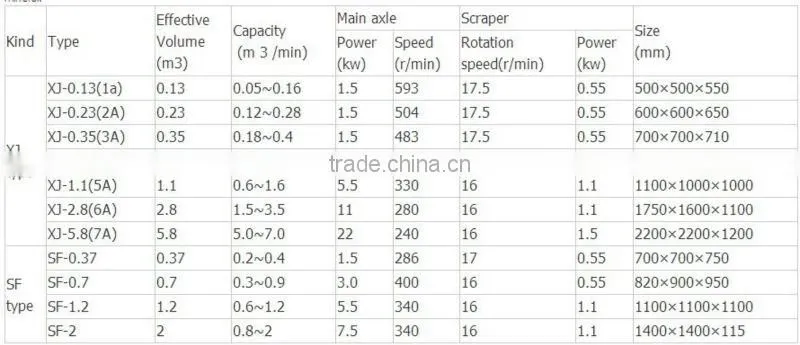

Flotation Machine Technical Parameters:
Send Inquiry to This Supplier
