Specifications
Iron Ore Plant Equipment:1. Crusher
2. Ball Mill
3. Magnetic Separator
YUHONG Manganese Ore Processing Equipment
1. Iron Ore Dressing Equipment Introduction:
Magnetic separation separates the minerals according to magnetic intensity differences in Non-uniform magnetic field. the following are the main application of magnetic separation. The separation of ferrous minerals: magnetic separation is the main processing way of iron ore, after the iron ore being processed, the ore grade will be improved,and the content of detrimental impurity will be reduced, which has a good effect on metallurgy smelting.
The separation of nonferrous and rare minerals: many nonferrous and rare minerals have different magnetic intensity, only gravity separation or only flotation separation can not have the good beneficiation effect, the combination of magnetic separation and gravity, flotation separation can have a good grade minerals.
The recovering of gravity separation medium, the magnetite and the ferrosilicon is the medium during the gravity separation.
Removing iron impurities from nonmetallic mineral raw materials, iron removing can protect crushers and other equipment,theiron removing is very commen during nonmetallic mineral processing. Kyanite, quartz, red tourmaline, feldspar, nepheline diorite applies dry magnetic separation for a lone time.
2. Iron Ore Dressing Equipment Application:
1.Iron Ore (Magnetite/Martite/Hematite)
2. Tin (cassiterite)
3. Chromium (chromite)
4. Manganese (pyrolusite, psilomelane, wad)
5. Niobium and tantalum (columbite/tantalite/coltan)
6.Rare earth (monazite/xenotime)
7. Industrial minerals (quartz/feldspar/nepheline syenite etc.)
8. Heavy mineral sands (ilmenite/rutile)
9. Garnet
10. Phosphate (apatite)
11. Heavy media separation
12. Recycling
3.100TPD Iron Ore Production Equipment :
Item |
Model |
Quantity (set) |
Power (KW) |
Remarks |

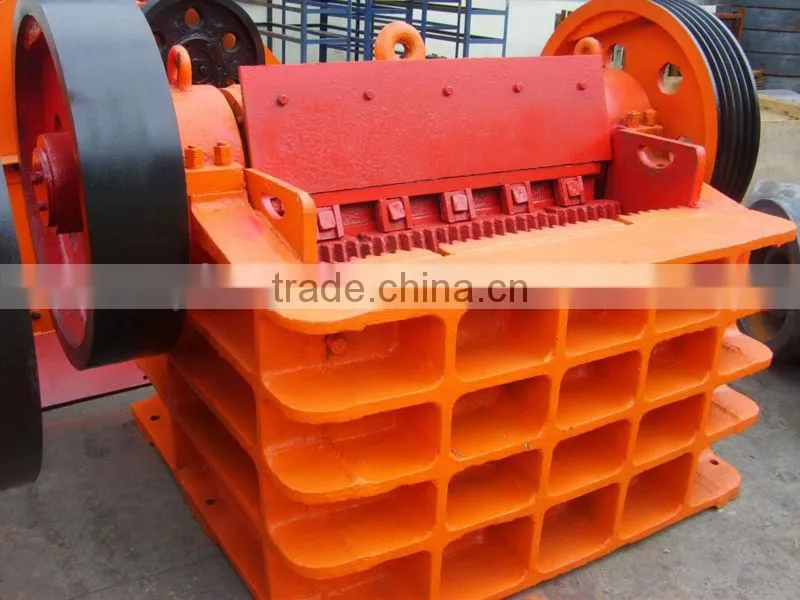

Jaw crusher |
PE400×600 |
1 |
30 |
|
Jaw crusher |
PEX250×1000 |
1 |
37 |
|
Feeder |
Φ600×600 or GZ 1 |
1 |
2.2 |
|
Ball mill |
Φ1500×3500 |
1 |
75 |
|
Classifier |
Φ750 |
1 |
5.5 |
Replacable |
|
High frequency screen |
GPS6 |
2 |
1.5×2 |
|
Magnetic separator |
CTB918 |
1 |
4 |
|
Magnetic separator |
CTB718 |
1 |
3 |
|
