Stainless Steel Ball Valves
- NINGBO
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | High Pressure | Power | Hydraulic | |
| Material | Stainless Steel | Temperature of Media | High Temperature | |
| Media | Water | Port Size | 1/2-4" | |
| Place of Origin | Zhejiang, China | Model Number | Stainless Steel Ball Valves | |
| Brand Name | Stainless Steel Ball Valves |
Product Description
Product name: Stainless Steel Ball Valves
Parameter:

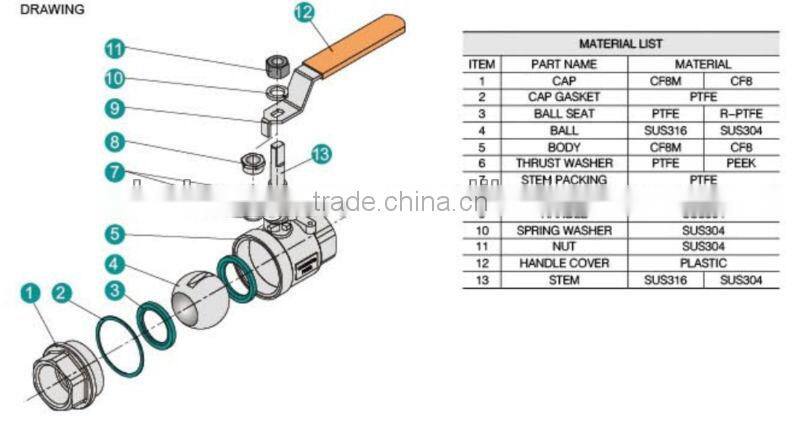

Material |
Body:ss Fixed end : ss Stem: ss Ball: ss Seat:P.T.F.E. Packing Ring:P.T.F.E Handle:ss Nut:ss Packing Nut: ss |
Color | Metal colour |
Standard | ASME B16.34 |
Standard temperature | 1000PSI |
Shell pressure testing | 10.4Mpa |
Water seal testing | 7.6Mpa |

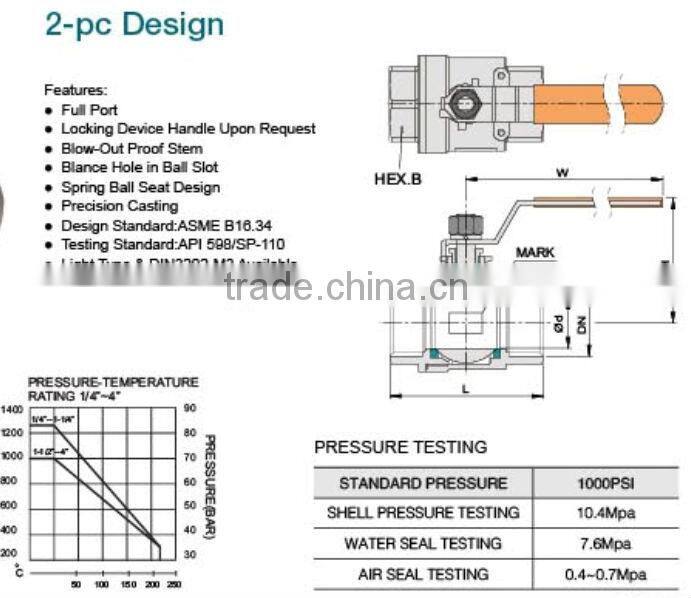

Product description:
1) Full Port
2) Locking device handle upon request
3) Blow-out proof stem
4) Blance hole in ball slot
5) Spring Ball seat design
6) Precision casting
7)Design Standard:ASME B16.34
8)Testing standard:API 598/SP-110

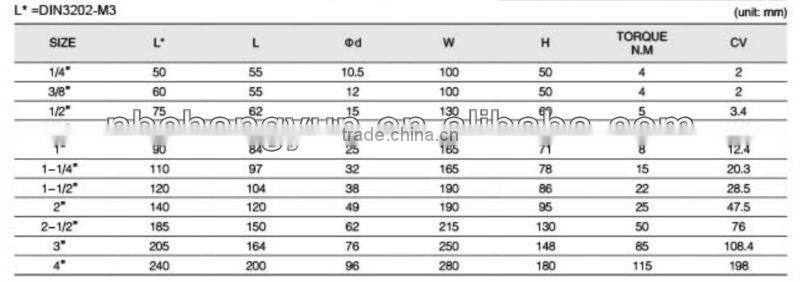

9)Light type&DIN3202-M3 available
Product detail:
Packaging:
1. Normal packing
2. As per customer's request
Shipping:
Sea shipment
Air shipment
Courier shipment
Service Advantage:
1. 10 years manufacturing and exporting experience in agriculture field.
2. Professional technical support and solution by Chief Engineer.
3. Strict quality control system & team, high reputation in the market.
4. Quick, efficient and professional response within 24 hours, 14 hours online services.
5. Multilingual communication services (English, Spanish, French, Portuguese, Japanese etc.)
6. Full range of irrigation products for choice.
7. Accept sample order before Mass Order.
8. OEM/ODM services.
