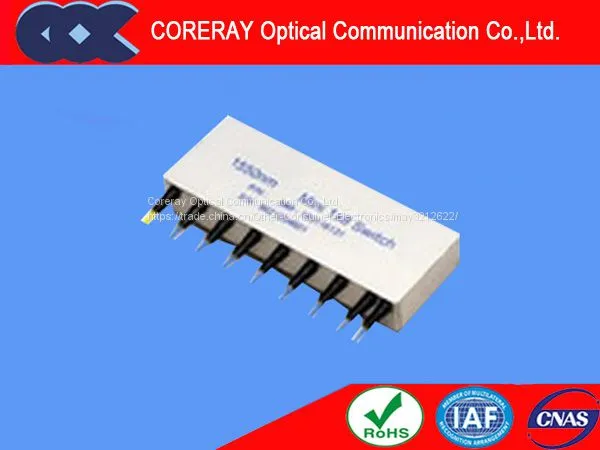

Mini 1×8 Optical Switch
professional supplier of fiber optical component
◇Feature:
lUnmatched Low Cost
lLow Insertion Loss
lHigh Channel Isolation
lHighly Stable and Reliable lEpoxy-Free Optical path
lLatching or Non-Latching
◇ Application:
lOptical Netrwork Protection/Restoration
lOptical Signal Routing
lConfigurable Optical Add/Drop
lTransmitter and Receiver Protection
lNetwork Test Systems
lInstrumentation
◇ Performance
Parameter |
Specification |
||||
Operating Wavelength (nm) |
850&1310±40 |
1260~1650 |
|||
Insertion Loss (dB) |
≤1.0 |
≤1.2 |
|||
WDL (dB) |
≤0.25 |
≤0.30 |
|||
PDL (dB) |
≤0.1 |
||||
Channel Cross Talk (dB) |
≥40 |
≥55 |
|||
Repeatability (dB) |
±0.02 |
||||
Return loss (dB) |
≥35 |
≥55 |
|||
Switching Speed (ms) |
≤10 |
||||
Drive Voltage (V) |
5 |
||||
Power Handing (mW) |
500 |
||||
Durability (Cycles) |
10 Million |
||||
Operating Temperature (℃) |
0～70 |
||||
Storage Temperature (℃) |
-40～85 |
||||
Fiber Type |
SMF-28 |
||||
Fiber Length (m) |
Customer Specify |
||||
Dimension (L×W×H) (mm) |
36×33×11.5 |
||||
