Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > MEMS 2X2 Optical Switch

MEMS 2X2 Optical Switch

Name: MEMS 2X2 Optical Switch
Brand: CORERAY
SKU: 138929969
Availability: InStock

US$ 1 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

CORERAY

Place of Origin:

China

Model Number:

2501

Contact Supplier Request Quote Chat Now

Coreray Optical Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Brand Name CORERAY

Place of Origin China

Model Number 2501

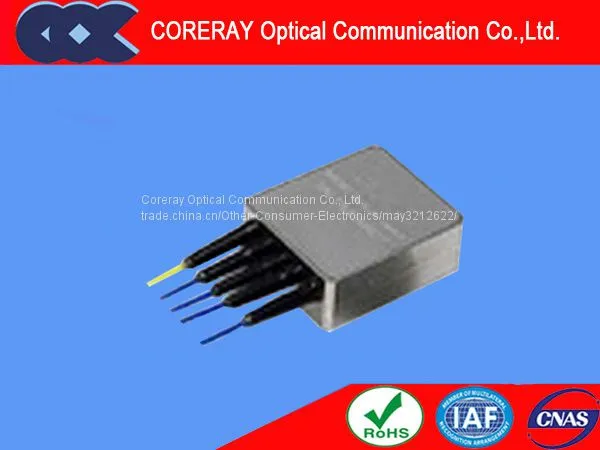

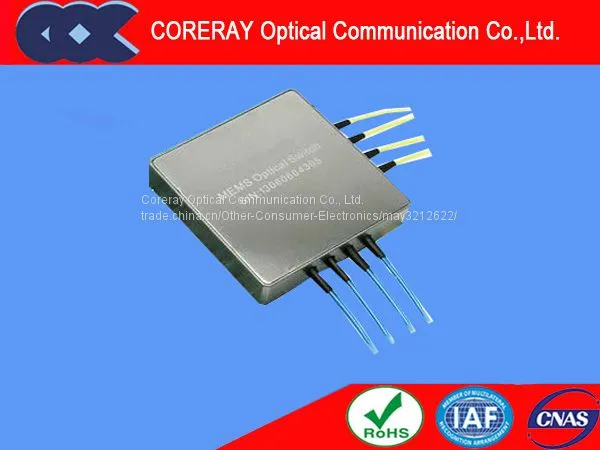

MEMS 2×2 Optical Switch

professional supplier of fiber optical component

The MEMS Latch Series 2x2 Fiber optic switch connects optical channels by redirecting

incoming optical signals into selected output fibers. This is achieved using a patent pending MEMS configuration and activated via an electrical control signal. It uniquely features rugged thermal activated micro-mirror movements instead of rotation, and latches to preserve the selected optical path after the drive signal has been removed.

This novel design significantly reduces packaging requirement, and simplifies driving electronics, offering unprecedented high stability as well as an unmatched low cost.

Features

• High Reliability

• Latching

• Intrinsic tolerance to ESD

Applications

• Channel Blocking

• System Monitoring

• Instrumentation

◇ Performance

Parameters		MSW-2×2
Wavelength Range	nm	1260～1620

Testing Wavelength	nm	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.8 ,Max:1.2
Return Loss	dB	≥50
Crosstalk	dB	≥50
PDL	dB	≤0.10
WDL	dB	≤0.25
TDL	dB	≤0.20
Repeatability	dB	≤±0.05
Repeatability Rate	Hz	20
Lifetime	Cycle	≥109
Switch Time	ms	≤5
Transmission Power	mW	≤500
Operation Temperature	℃	-5～+70
Storage Temperature	℃	-40～+85
Switching type		Latching
