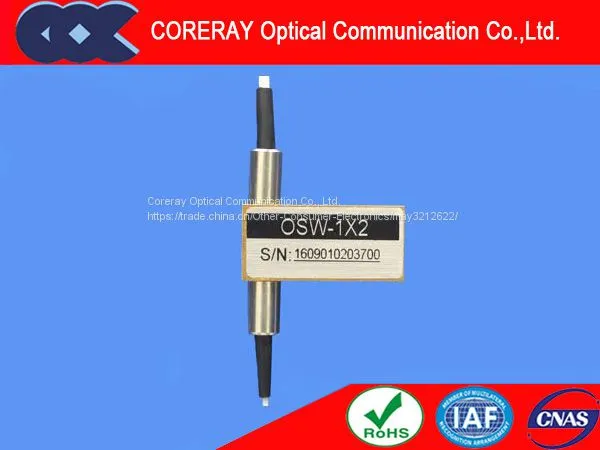

1X2 Optical Switch CORERAYUS$ 1 - 50MOQ: 1 Piece -
2X2 Bypass Optical SwitchUS$ 1 - 50MOQ: 1 Piece
-
MEMS1×8 Optical SwitchUS$ 1 - 50MOQ: 1 Piece
-
D2X2B Optical Switch Low Insertion LossUS$ 1 - 50MOQ: 1 Piece
-

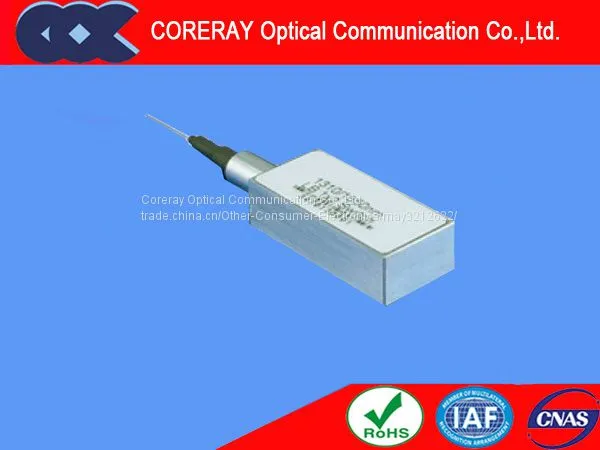

CORERAY 1X1 Optical Switch / 1x1,1xn Optical Switch Low CrosstalkUS$ 1 - 50MOQ: 1 Piece
MEMS4×4 Optical Switch
professional supplier of fiber optical component
The MEMS Latch Series 4x4 Fiber optic switch connects optical channels by redirecting
incoming optical signals into selected output fibers. This is achieved using a patent pending MEMS configuration and activated via an electrical control signal. It uniquely features rugged thermal activated micro-mirror movements instead of rotation, and latches to preserve the selected optical path after the drive signal has been removed.
This novel design significantly reduces packaging requirement, and simplifies driving electronics, offering unprecedented high stability as well as an unmatched low cost.
Features
• High Reliability
• Latching
• Intrinsic tolerance to ESD
Applications
• Channel Blocking
• Configurable Add/Drop
• System Monitoring
• Instrumentation
◇ Performance
Parameters |
MSW-4×4 |
|||
Wavelength Range |
nm |
1260～1620 |
||
Testing Wavelength |
nm |
1310/1490/1550/1625/1650 |
||
Insertion Loss |
dB |
Typ:1.2,Max:2.0 |
||
Return Loss |
dB |
≥50 |
||
Crosstalk |
dB |
≥50 |
||
PDL |
dB |
≤0.10 |
||
WDL |
dB |
≤0.25 |
||
TDL |
dB |
≤0.20 |
||
Repeatability |
dB |
≤±0.05 |
||
Repeatability Rate |
Hz |
20 |
||
Lifetime |
Cycle |
≥109 |
||
Switch Time |
ms |
≤5 |
||
Transmission Power |
mW |
≤300 |
||
Operation Temperature |
℃ |
-5～+70 |
||
Storage Temperature |
℃ |
-40～+85 |
||
Switching type |
Latching |
|||
Dimension |
mm |
(L)38×(W)38×(H)7.5 |
||
Send Inquiry to This Supplier
You May Also Like
-
Coreray 2X2 Optical Switch / 2x2 Fiber Optical SwitchUS$ 1 - 50MOQ: 1 Piece
-
Dual2X2 Optical SwitchUS$ 1 - 50MOQ: 1 Piece
-
CORERAY 2x2BA Optical SwitchUS$ 1 - 50MOQ: 1 Piece
-
2x2A Optical SwitchUS$ 1 - 50MOQ: 1 Piece
-
MEMS 2X2 Optical SwitchUS$ 1 - 50MOQ: 1 Piece
-

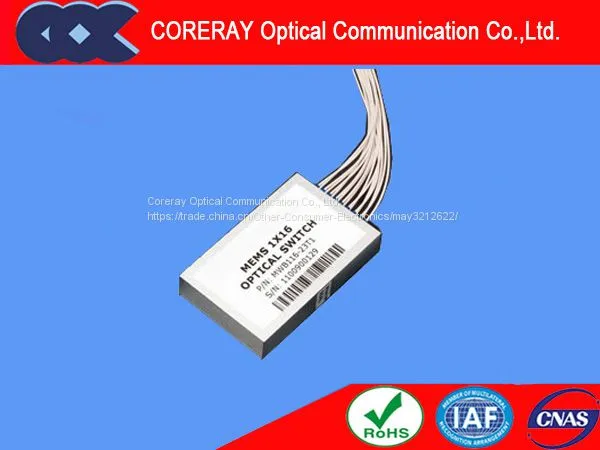

MEMS 1×16 Optical SwitchUS$ 1 - 50MOQ: 1 Piece
-
