Wet Magnetic Separator Used in Africa, Tanzania, Zambia, Southeast Asia
Description of Magnetic Separator:
1. CTB Series half upstream wet drum permanent is usually used for separating fine-grained iron magnetite from non-magnetic materials. Its composite magnetic system consists of high performance rare earth permanent magnet (main magnetic source) and ferrite permanent magnet.
Structure for Magnetic Separator :

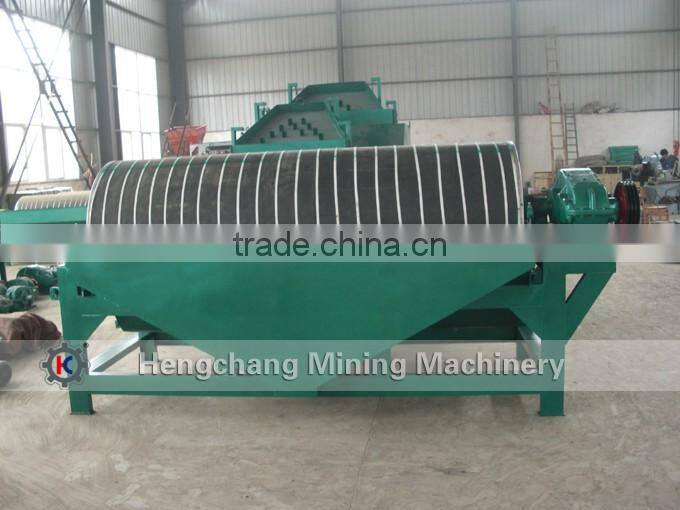

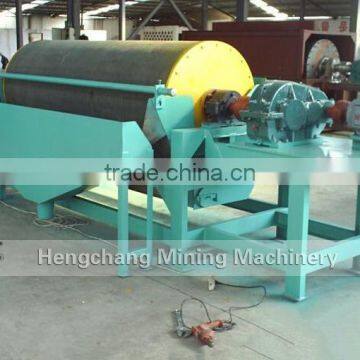

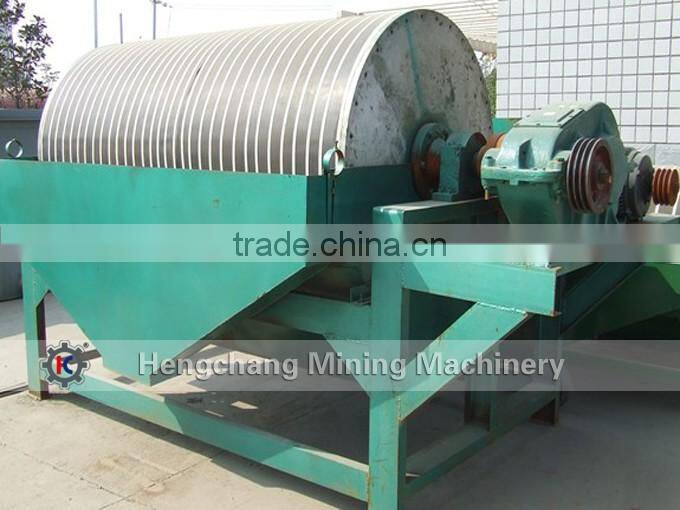

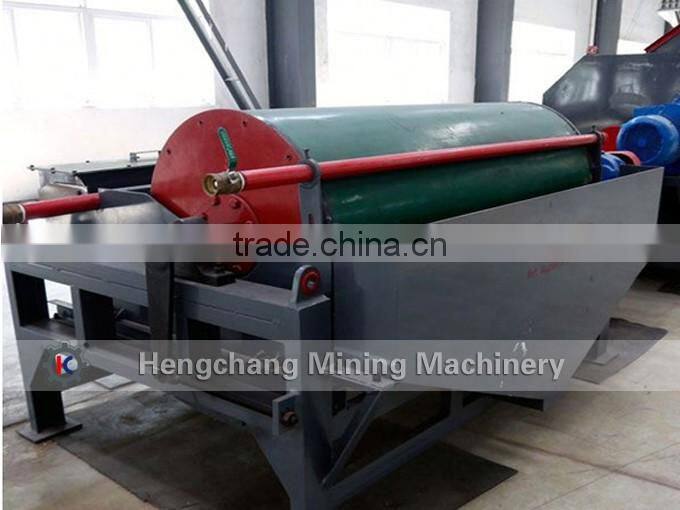

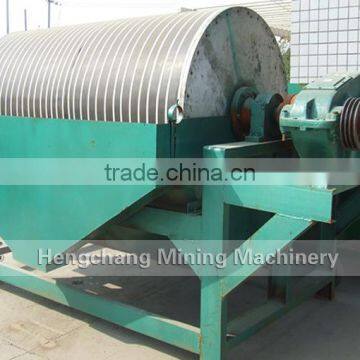

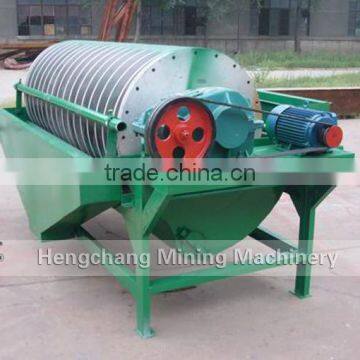

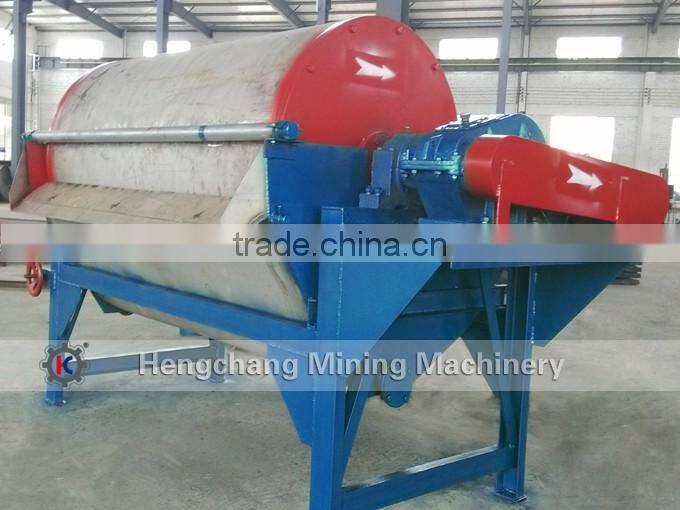

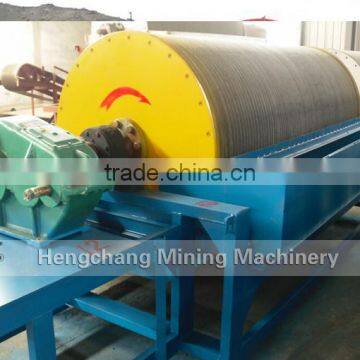

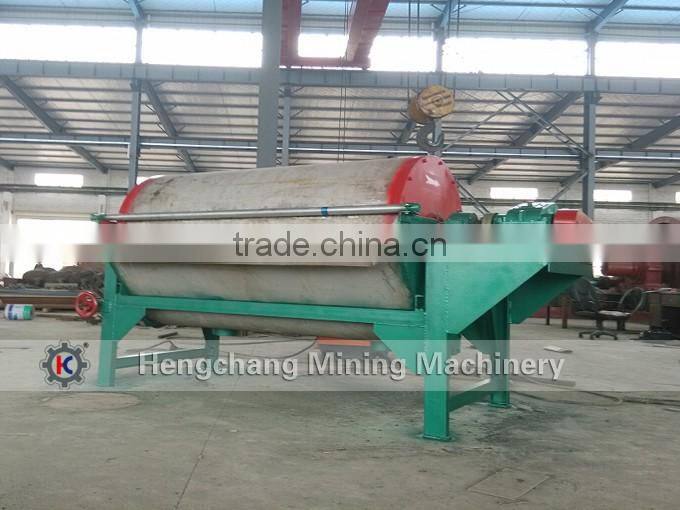

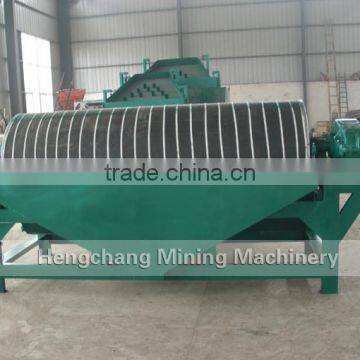

CTB Series wet drum permanent Magnetic Separator consists of magnetic drum, tank body, support, feed box, discharge box (ore concentrate box), drive motor, motor reducer, control box, etc.
The Magnetic Separator drum is made of stainless steel (thickness: 3mm) and covered with wear resistant rubber.
Working principle for Magnetic Separator:
1. When the raw materials flow into the tank body of the wet drum Magnetic Separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum.
2. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation.
3. This time the flowing direction of the raw materials is oppo site to the rotary direction of the magnetic drum.
4. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity.
5. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.

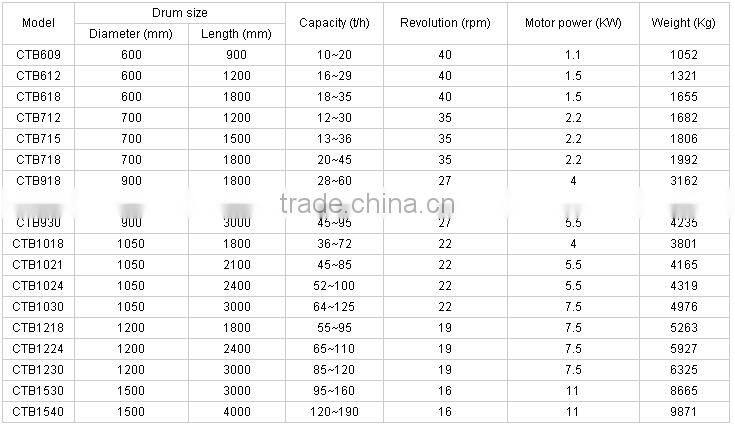

Magnetic Separator of technical parameters
