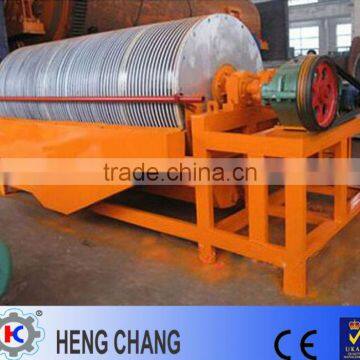

Hot sale Wet drum magnetic separator machine for iron ore concentration with low price
Introduction of Wet drum magnetic separator machine :
Magnetic separator is a device which is designed to assist with the purification and separation of process streams. It is used in industries like mining, and smaller versions are utilized in scientific labs to process some types of samples. The magnetic separator can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force.
Application of Wet drum magnetic separator machine :
Magnetic separator is the mining equipment of weak magnetism, which is applicable for the strong magnetism mineral less than 5mm. It is widely used to separate sand in rivers, lakes and in mineral separation factory. it can remove the iron in the coal, non-metal and construction industries. Magnetic separator applied to the tailing discarding or purification process of fine grained weak magnetic minerals such as limonite, hematite, manganese ore, titanium ore, etc. or de-ironing processing of non-metallic minerals such as andalusite, sillimanite, kyanite, garnet, feldspar, quartz, zircon, corundum, diamond, etc. as well as to eliminate weak magnetic harmful impurities of other materials.

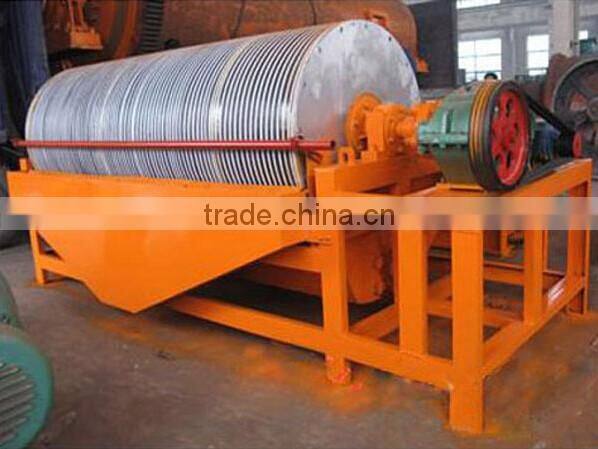

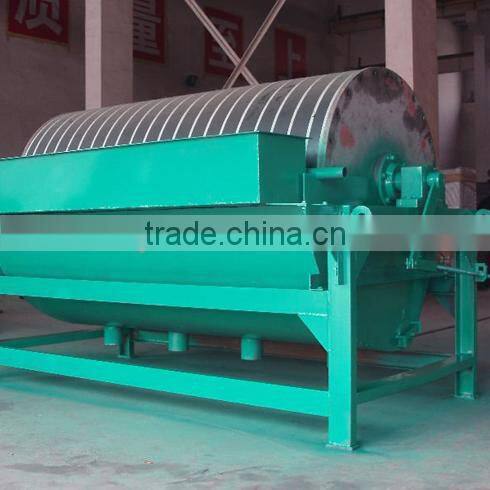

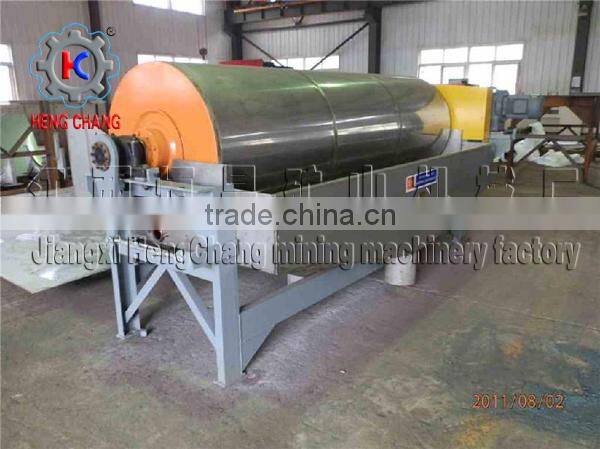

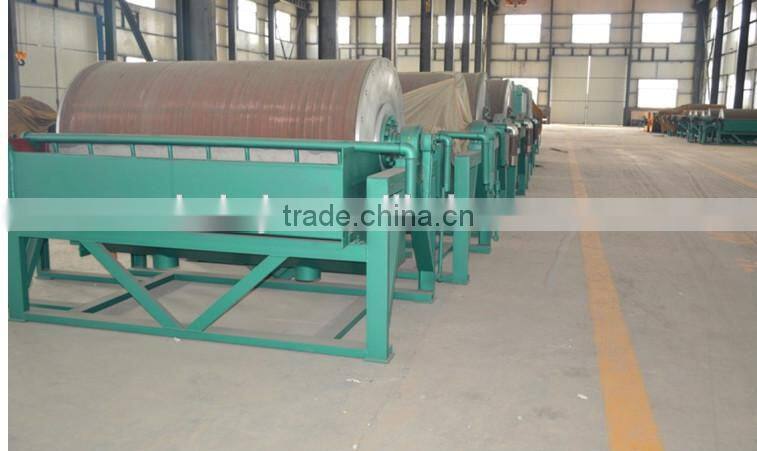

The Wet drum magnetic separator machine in our workshop
Working principle of Wet drum magnetic separator machine
1.When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum.
2.This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation.
3.This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum.
4.Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity.
5.Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
The structure of Wet drum magnetic separator machine
Features of Wet drum magnetic separator machine :
1.special magnetic for mining industry.
2.the most advanced magnetic system design in mining industry.
3.closed magnetic system keep no magnetic block drop out.
4.double-row self-adjustable ball journal bearing to keep maintenance easy.
5.stainless cell body and wear resistant coatings.
6.low running cost.
:combined magnetic field intensity and magnetic field strength.
The Main Technical parameter of Wet drum magnetic separator machine
| Model |
Roller size (diameter length mT) |
Roller surface magnetic induction density (mT) | Processing capacity |
Motor power kw |
Roller rotating speed r/min |
Total weight kg |
|||
| Pole geometric center value | Sweeping and separarting area average value | Highest magnetic induction density | t/h | m3/h | |||||
| CTB-718 | 750*1800 | 120 | 155 | 180 | 20~45 | 72 | 3 | 35 | 2100 |
| CTB-918 | 900*1800 | 148 | 165 | 190 | 25~55 | 90 | 4 | 28 | 2900 |
| CTB-924 | 900*2400 | 148 | 165 | 190 | 35~70 | 110 | 4 | 28 | 3600 |
| CTB-1018 | 1050*1800 | 148 | 165 | 190 | 40~75 | 120 | 5.5 | 22 | 4000 |
| CTB-1021 | 1050*2100 | 160 | 240 | 180 | 45~88 | 140 | 5.5 | 22 | 4500 |
| CTB-1024 | 1050*2400 | 148 | 165 | 190 | 52~100 | 160 | 5.5 | 22 | 5000 |
| CTB-1030 | 1050*3000 | 160 | 240 | 280 | 65~125 | 200 | 7.5 | 22 | 6200 |
| CTB-1218 | 1200*1800 | 160 | 240 | 240 | 47~90 | 140 | 5.5 | 19 | 5800 |
| CTB-1224 | 1200*2400 | 148 | 165 | 165 | 82~120 | 192 | 7.5 | 19 | 6200 |
| CTB-1230 | 1200*3000 | 148 | 165 | 165 | 80~150 | 240 | 7.5 | 19 | 7200 |
| CTB-1530 | 1500*3000 | 180 | 240 | 240 | 90~170 | 270 | 11 | 14 | 8900 |
| CTB-1540 | 1500*4000 | 180 | 240 | 240 | 115~220 | 350 | 11 | 14 | 9900 |

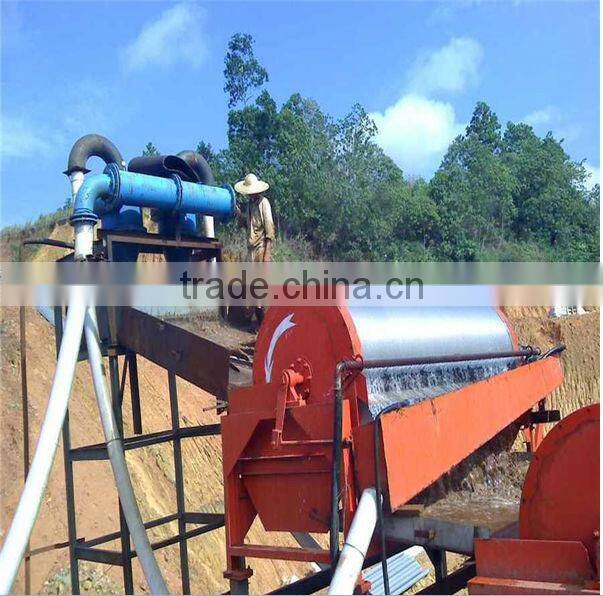

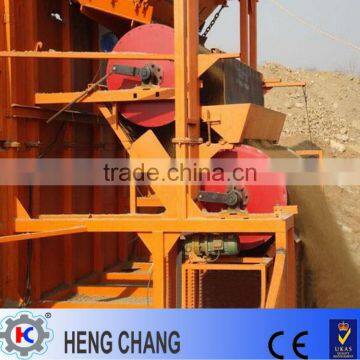

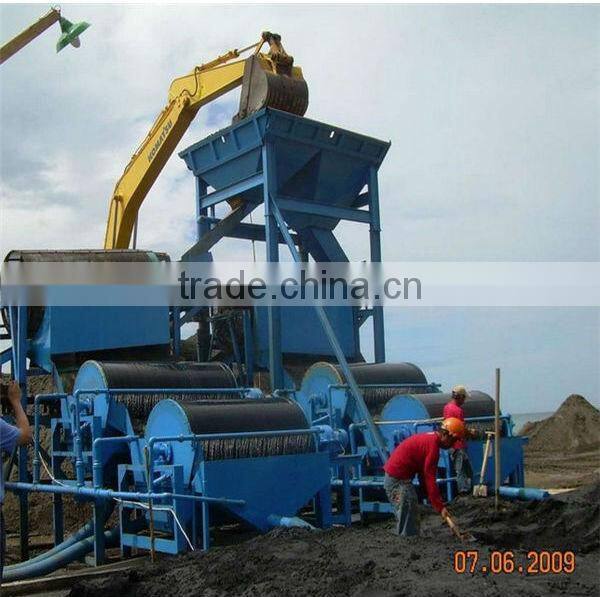

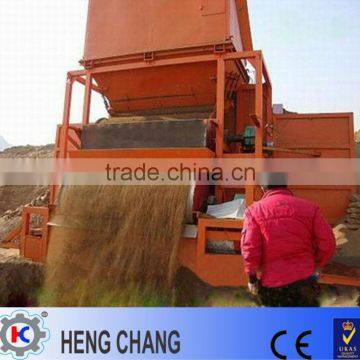

The Wet drum magnetic separator machine in the site
