De-iron wet magnetic separator Price for Indonesia
Wet magnetic separator of description:
1. CTB Series half upstream wet drum permanent Wet magnetic separator is usually used for separating fine-grained iron magnetite from non-magnetic materials. Its composite magnetic system consists of high performance rare earth permanent magnet (main magnetic source) and ferrite permanent magnet.
2. With a high magnetic field intensity, Wet magnetic separator can make a continuous row of ore feed and discharge. It also has enough working clearance and high processing capacity.
3.Series CTB half upstream wet drum permanent Wet magnetic separator is widely applied in the separation of various kinds of iron ores and gold ore. 4. In order to increase the grade or capacity, several sets of iron ore equipment can be installed in series connection or parallel connection. All our iron ore equioment comply with JB/T7895-2002 standard.
Structure for Wet magnetic separator
CTB Series wet drum permanent Wet magnetic separator consists of magnetic drum, tank body, support, feed box, discharge box (ore concentrate box), drive motor, motor reducer, control box, etc.
The magnetic drum is made of stainless steel (thickness: 3mm) and covered with wear resistant rubber.
Working principle for Wet magnetic separator :
1. When the raw materials flow into the tank body of the wet drum Wet magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum.
2. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation.
3. This time the flowing direction of the raw materials is oppo site to the rotary direction of the magnetic drum.
4. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity.
5. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
technical parameters of Wet magnetic separator
Standard model |
Specifications(mm) |
Barrel speed(r/min) |
Capacity(t/h) |
Power (kw) |
Standard size(mm) |
Weight(kg) |
|
T/h |
M3/h |
||||||
CT(G,N,B,S)-759 |
750*900 |
35 |
10~25 |
30~75 |
2.2 |
2160*1480*1220 |
740 |
CT(G,N,B,S)-7512 |
750*1200 |
35 |
15~30 |
49~90 |
2.2 |
2460*1480*1220 |
920 |
CT(G,N,B,S)-7515 |
750*1500 |
35 |
18~40 |
54~120 |
2.2 |
2760*1480*1220 |
1100 |
CT(G,N,B,S)-7518 |
750*1800 |
35 |
20~45 |
60~135 |
3 |
3060*1480*1220 |
1280 |
CT(G,N,B,S)-7521 |
750*2100 |
35 |
25~50 |
75~150 |
3 |
3360*1480*1220 |
1470 |

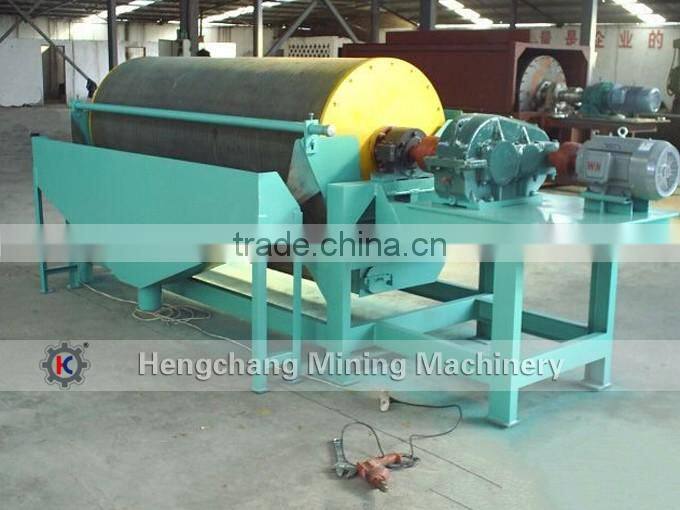

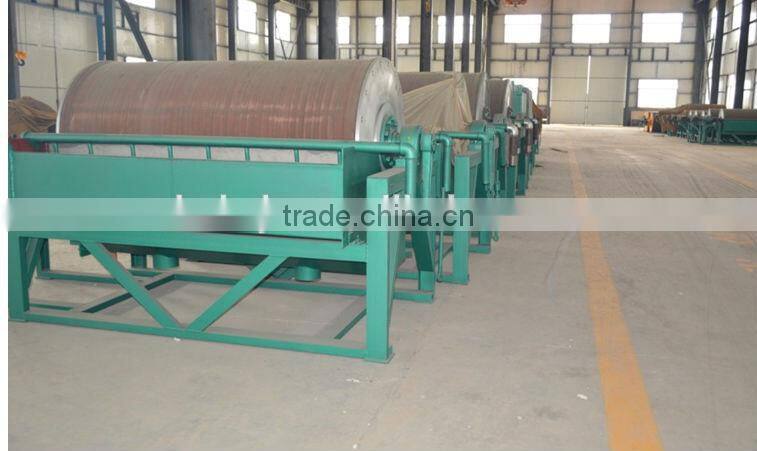

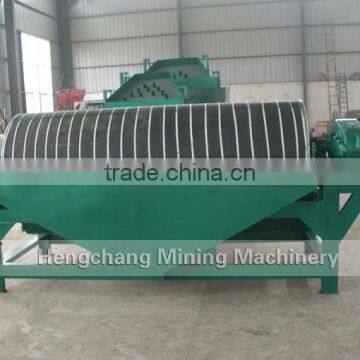

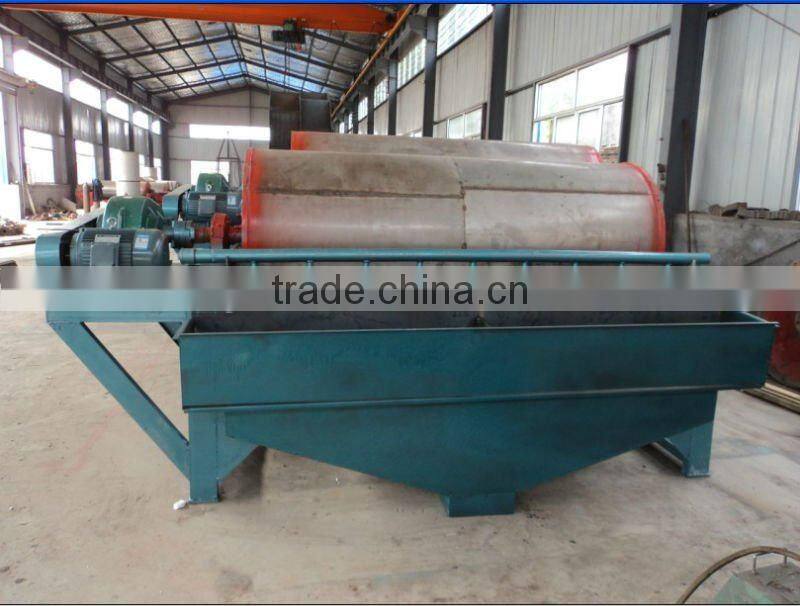

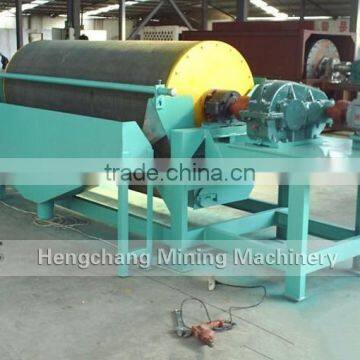

Wet magnetic separator in our workshop
Wet magnetic separator structure drawing

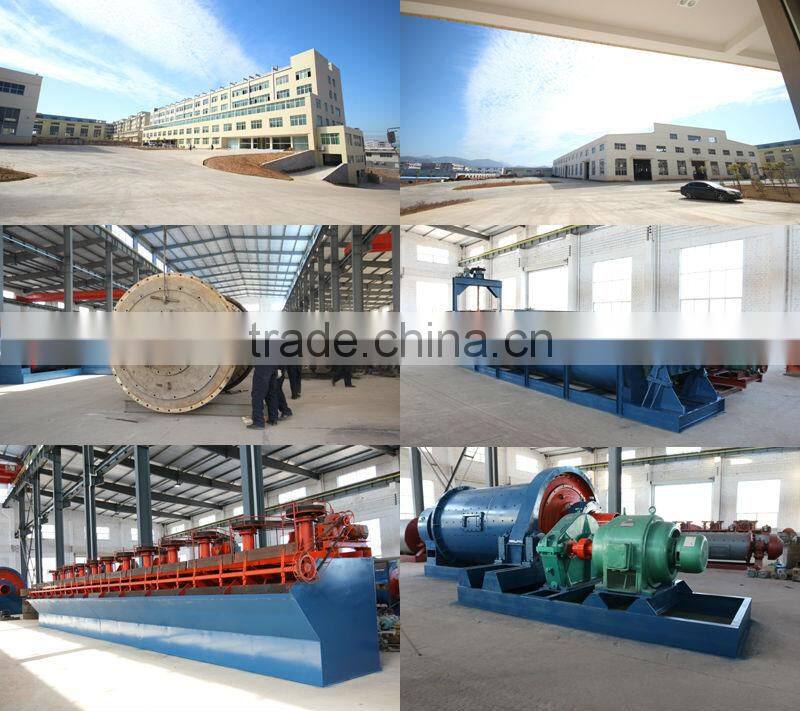

Welcome to visit our factory in your free time.
