700CY Metal Gauze Packing Media

Specifications

700CY Metal Gauze Packing Media:
1.Large Surface area
2. Large treatment ability
3.apply to vaccum tower
4.ISO9001:2008





















700CY Metal  Gauze Packing Media:

1.material: Carbon Steel, 304.316 Stainless Steel

2.increase the transfer efficiency

3.change the distribution liquid



700CY Metal  Gauze Packing Media

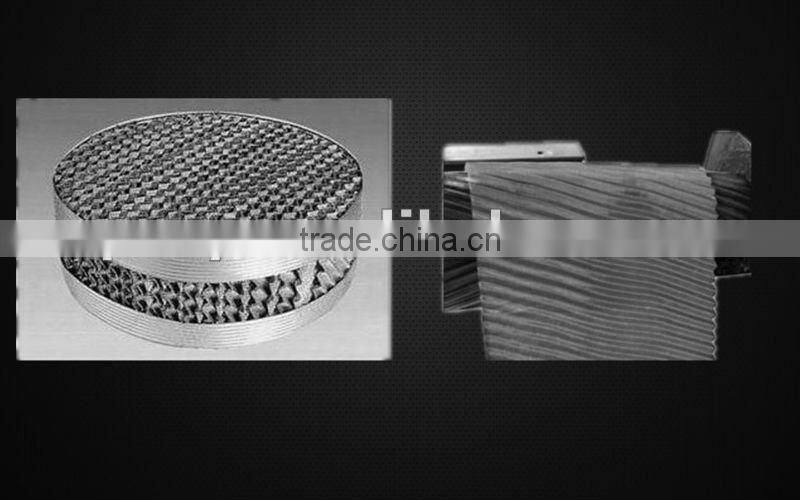

     Screen corrugated Packing made it by the wave screen pressure , and which it leads a 30 ° Angle or 45 °. The two ripples are in opposite directions, when fill in tower, fluctuation two dish packing with  90 ° crisscross stacked. With efficiency and pressure drop and flux of the big advantages, the products have BX, CY, used for difficult type heat-sensitive material separation and the vacuum distillation, atmospheric distillation and absorption process.





700CY Metal Gauze Packing Media Technical data

Model	Wave height mm	Surface area m²/m³	Bulk density (kg/m3)	Void volume %	Inclination angle	Pressure Drop(Pa/m3)
700CY	0.15	700	350	85	45	600-700
