Metal Packing

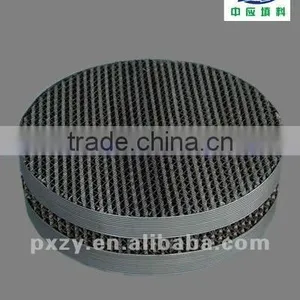

Metal Packing thumbnail-1

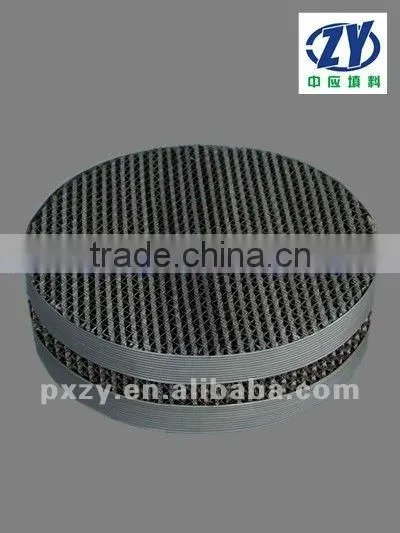

Metal Packing photo-1
US$ 1,079.5 - 1,599.9 MOQ: 1 Cubic Meter
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
ZY
Model Number:
500BX
Contact Supplier Request Quote Chat Now
Pingxiang Zhongying Packing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai and any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name ZY
Model Number 500BX

Specifications

1.acid&alkali function,long service life
2.Uniform contacting surface area
3.large void space, thin wall,small resistance

Main Specification of Metal Structured Packings  (Stainless steel 304)
Name Type Surface Area m2/m3 Void Fraction  % Height     mm Bulk Density kg/m3 Max Factor m/s(kg/m3)0.5 Theoretical Plate      M-1 Pressure Drop    (p)
Perforated & Corrugated Plate 125 125 98 25.4 85~100 3 1~2 150
250 250 97 12.5 170~200 2.6 2~3 200
350 350 94 9 240~280 2 2.0~2.5 300
500 500 92 6.3 360~400 1.8 4~5 180

Pricked & Corrugated Plate 250Y 250 97 12.5 85~100 2.6 5~7 900
500Y 500 93 6.3 170~200 2.1 3~4 200
700Y 700 85 4.5 240~280 1.6 2.5~3 300

Corrugated Plate Gauze SW-1 650 91.6 4.5 140 1.4~2.2 6~8 260~460
SW-2 450 95.5 6.5 360 1.6~1.8 4~5 220~240

Corrugated Wire Gauze 250(AX) 250 97 12.5 70 2.5~3.5 2.5~3 25~120
500(BX) 500 95 6.3 140 2.0~2.4 4~5 200
700(CY) 700 87 4.5 180 1.5~2.0

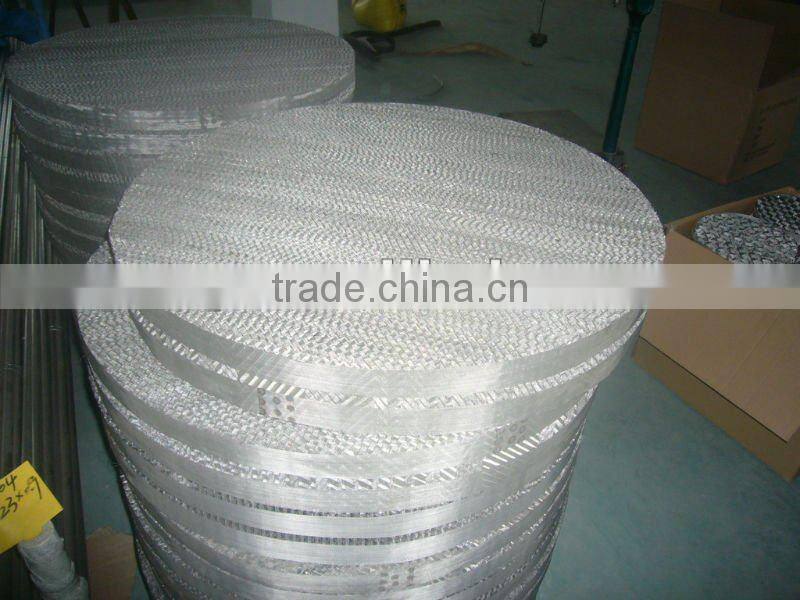

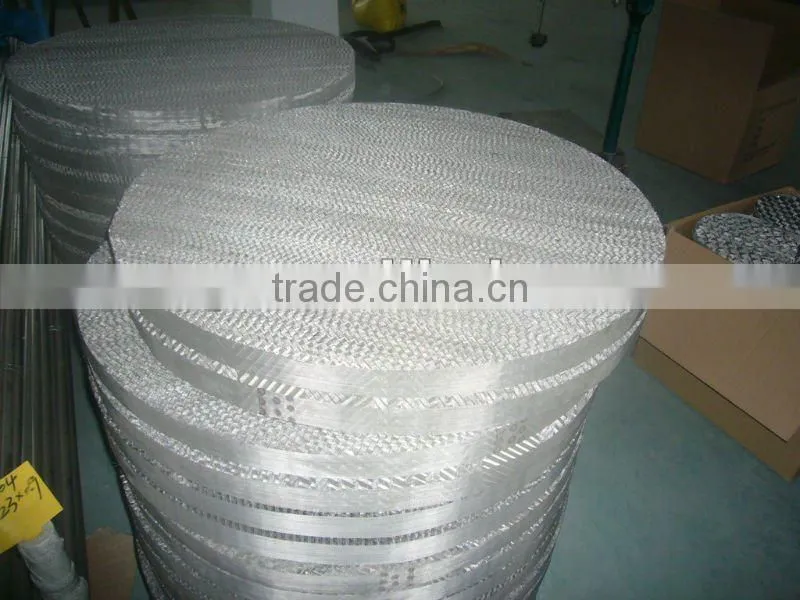

 Sample photo:

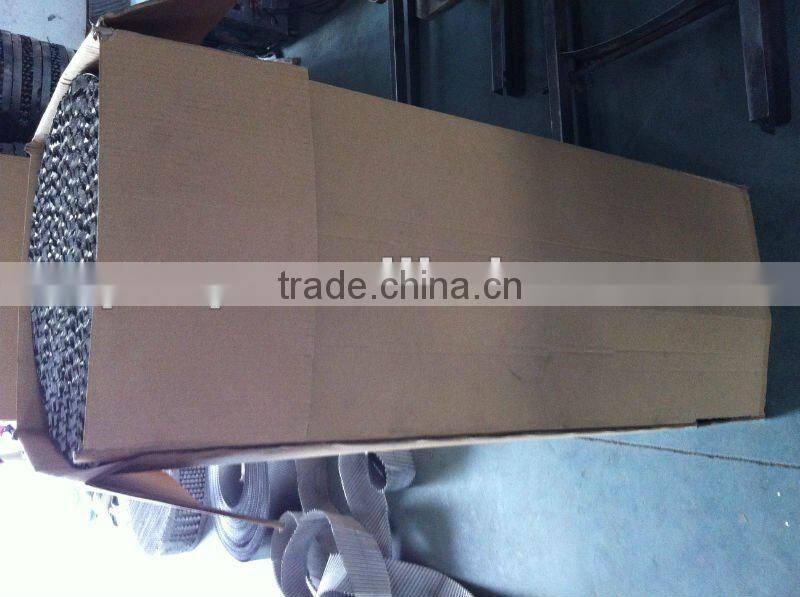

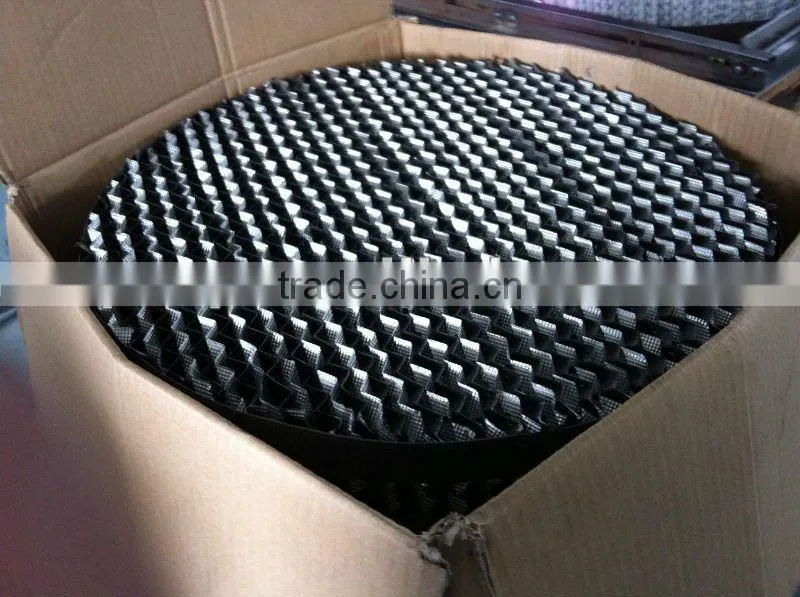

Exported package photo:

Metal Packing

Metal Packing



Our advantage:

1. We will supply with the best price in 24 hours.

2. We will supply with all information to u ,about package, weight,

3. Except the size we have now , We also can produce special size as u need

4. We can communicate with u by Fluently and professional Enlish .

5. If u are urgent, U can add my Skype: zhouzhoufen ,  or Call me at any time: 8613979955589

6. For all products u buy, Our product's warranty is for 2 years. For product problem, u can contact with us any time.
