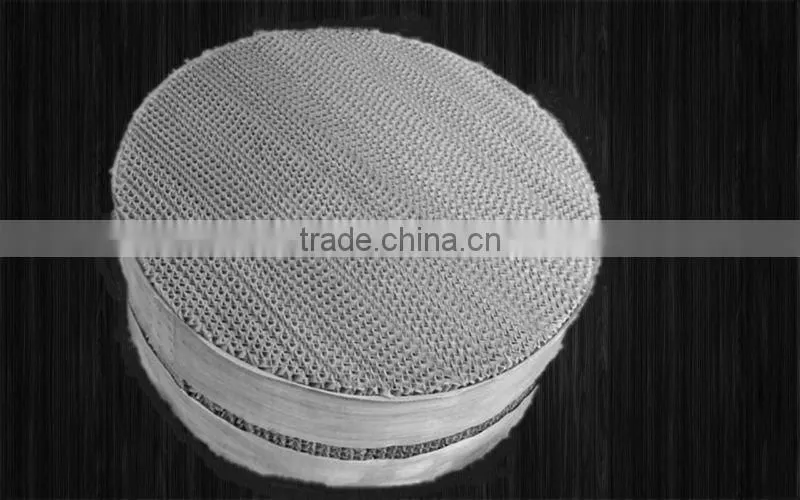

Metal Structure packing (304ss)
USD $1,079.5 - $1,599.9
/ Cubic Meter
1 Cubic Meter(Min.Order)
- 100 Cubic Meter / Cubic Meters per Month
- Shenzhen Shanghai and any port in China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | ZY | |
| Model Number | 250.500.700 |
Product Description
Specifications
1.special paremeter. thin wall, Big surface area2. High seperation rate, small resistance
3.ISO9001:2008
4.304.316.410 ss
| Main Specification of Metal Structured Packings (Stainless steel 304) | ||||||||
| Name | Type | Surface Area m2/m3 | Void Fraction % | Height mm | Bulk Density kg/m3 | Max Factor m/s(kg/m3)0.5 | Theoretical Plate M-1 | Pressure Drop (p) |
| Perforated & Corrugated Plate | 125 | 125 | 98 | 25.4 | 85~100 | 3 | 1~2 | 150 |
| 250 | 250 | 97 | 12.5 | 170~200 | 2.6 | 2~3 | 200 | |
| 350 | 350 | 94 | 9 | 240~280 | 2 | 2.0~2.5 | 300 | |
| 500 | 500 | 92 | 6.3 | 360~400 | 1.8 | 4~5 | 180 | |
| Pricked & Corrugated Plate | 250Y | 250 | 97 | 12.5 | 85~100 | 2.6 | 5~7 | 900 |
| 500Y | 500 | 93 | 6.3 | 170~200 | 2.1 | 3~4 | 200 | |
| 700Y | 700 | 85 | 4.5 | 240~280 | 1.6 | 2.5~3 | 300 | |
| Corrugated Plate Gauze | SW-1 | 650 | 91.6 | 4.5 | 140 | 1.4~2.2 | 6~8 | 260~460 |
| SW-2 | 450 | 95.5 | 6.5 | 360 | 1.6~1.8 | 4~5 | 220~240 | |
| Corrugated Wire Gauze | 250(AX) | 250 | 97 | 12.5 | 70 | 2.5~3.5 | 2.5~3 | 25~120 |
| 500(BX) | 500 | 95 | 6.3 | 140 | 2.0~2.4 | 4~5 | 200 | |
| 700(CY) | 700 | 87 | 4.5 | 180 | 1.5~2.0 | |||
Metal Corrugated Gauze packing informations:
protruded corrugated sheet packing forming by the following way that first press forming small intensity 0.4-0.5 hole, then stamp sheet with multi-thorn orifice plate form into corrugated combination regular packing, Because the special orifice structure of surface to enhance the packing wet ability ,and keep the character of the packings.
Available Materia of metal tower packing : Stainless steel, copper, aluminum and so on.
We can produce according to your tower size .
Welcome to inquiry our products

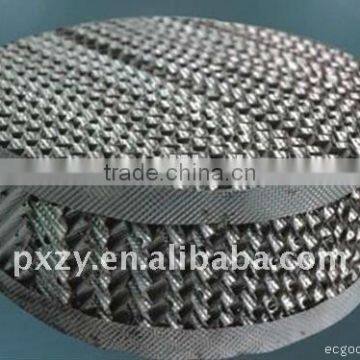

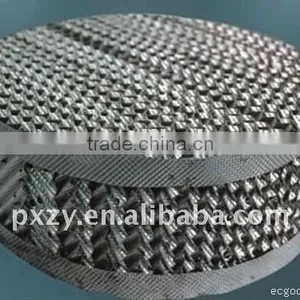

Sample photo:

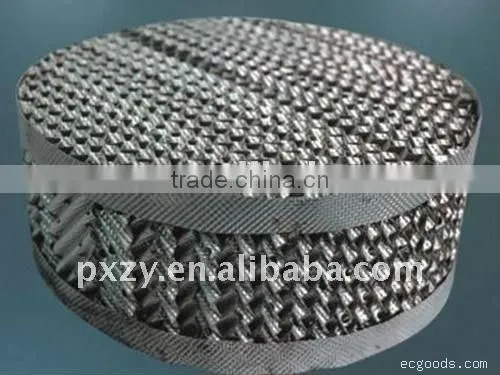

Another sample photo:
