Specifications
1. Anti high temperature, anti high acid and alkail, anti old life2.Long service life, Big void space
3.ISO9001:2008.approve
Packing Ceramic Raschig rings available size: 6.16.10.25.40.50.80. 100.150mm
Ceramic Raschig ring's Progress and Workshop:
Packing Ceramic Rasching Ringis a traditional packing with simple shape and the outside diameter is equal to the height. The large size of the Rasching ring (above 100mm ) generally use the entire masonry filling, the size below 80mm generally use the random packing.
We also can design special size as u need.
Technical data of Packing Ceramic Rasching Ring
|
Specification (mm)
|
Diameter* Height* Thickness |
Surface area (m²/m³) |
Void space |
Number per m³ |
Bulk density (kg/m³) |
Packing factor |
6 |
6*6*2 |
789 |
73 |
3110000 |
737 |
2030 |
|
10 |
10*10*2 |
440 |
70 |
720000 |
700 |
1280 |
|
15 |
15*15*2 |
330 |
70 |
250000 |
690 |
960 |
|
16 |
16*16*2 |
305 |
73 |
192500 |
730 |
784 |
|
25 |
25*25*2.5 |
190 |
78 |
49000 |
505 |
400 |
|
|
40 |
40*40*5 |
136 |
75 |
12700 |
577 |
305 |
50 |
50*50*5 |
93 |
81 |
6000 |
457 |
177 |
|
80 |
80*80*9.5 |
90 |
68 |
1910 |
714 |
234 |
|
100 |
100*100*10 |
70 |
70 |
1000 |
700 |
172 |
|
150 |
150*150*15 |
50 |
68 |
295 |
790 |
142 |
Also Package can design as need
We also can produce special size.

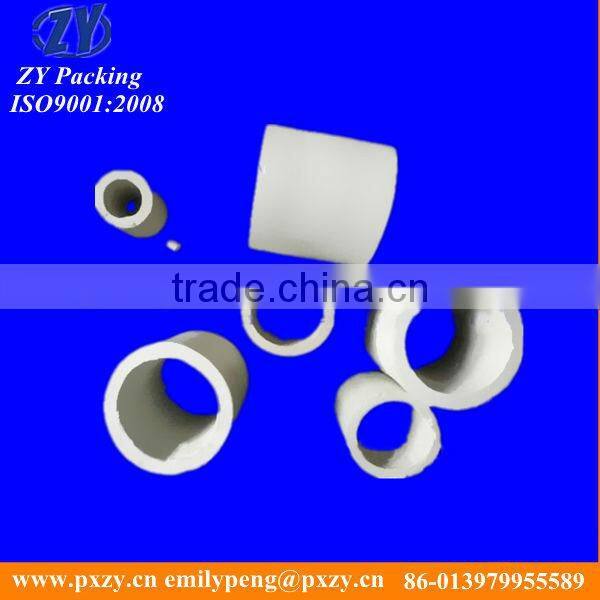

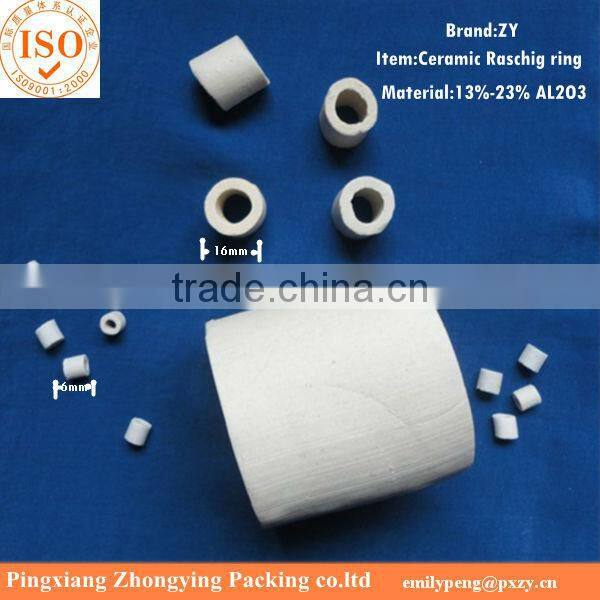

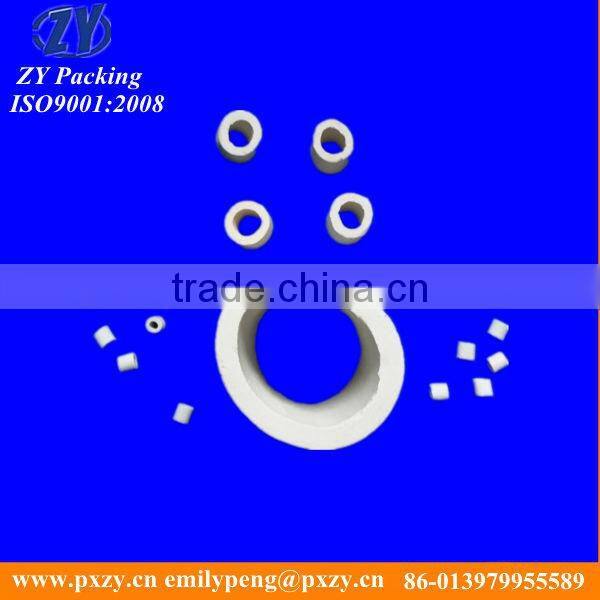

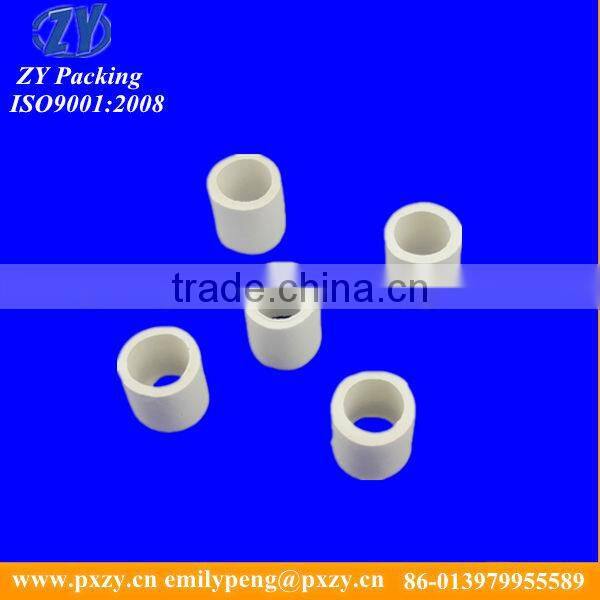

ZY High temperature Ceramic Raschig ring Photo:
ZY High temperature Ceramic Raschig ring package:
