Help CenterCeramic Cross Partition Ring for Absoring, Cooling, Washing and Recovery
Related Products
-
High Quality Ceramic Tri-Y RingUS$ 121 - 345MOQ: 1 Metric Ton -
Ceramic Cross Partition Ring for Tower PackingUS$ 121 - 645MOQ: 1 Metric Ton
-
High Quality Ceramic Cross Partition RingUS$ 121 - 645MOQ: 1 Metric Ton
-
High Quality Ceramic Intalox Saddle RingUS$ 360 - 1,500MOQ: 1 Cubic Meter
-
Factory Sell Ceramic Cascade RingUS$ 360 - 1,500MOQ: 1 Ton
Specifications
1)20 years' professional manufacture2)Good quality and favorable price
3)Fast delivery and best service
4)ISO9001

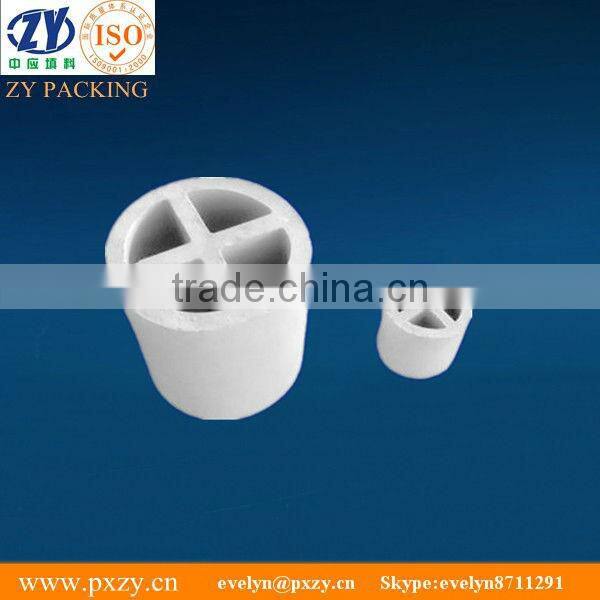

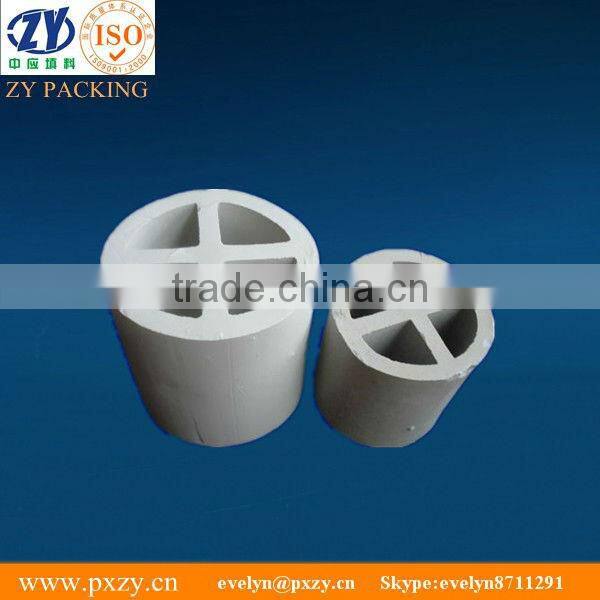

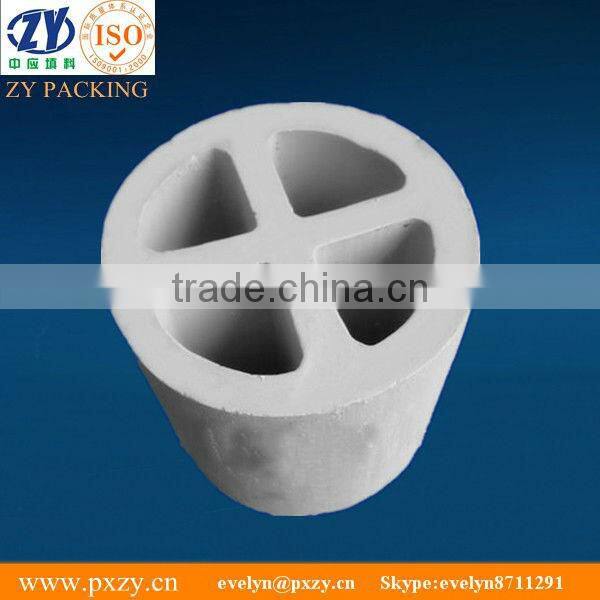

Ceramic Cross partition Ring
Performance features and uses:
Ceramic Cross Partition Ring is a kind of random packing further improved on the basis of Rasching Ring, adding the cross clapboard inside the ring. It increases the ring’s surface area, improving significantly the mass transfer efficiency of vapor and liquid.
Generally, cross partition ring is required to stack orderly in the column due to its big size. Currently, cross partition rings, size between Φ80-Φ150mm, are used as the support material of other random packing at the bottom of column, which accumulation voidage is over 60%.
With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Cross Partition Ring can resist high temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.
Chemical composition
SiO2 |
Al2O3 |
Fe2O3 |
CaO |
K2O+Na2O |
>70% |
23-30% |
<1% |
<1-2% |
<2-4% |
Physical properties
Index |
Value |
Specific gravity(g/cm3) |
2.25-2.35 |
Water absorption(%) |
<0.5 |
Acid-resisting strength, %Wt. Loss (ASTMc279) |
<4 |
Firing temperature(Degree C) |
1280-1320 |
Softening point(Degree C) |
>1400 |
Density(kg/m3) |
2350 |
Technical data of the Ceramic Cross Partition Ring
|
Specifications (mm) |
Diameter* Height* Thickness |
Surface area (m²/m³) |
Void space |
Number per m³ |
Bulk density (kg/m³) |
Packing factor |
50 |
50(40)*50*5 |
145 |
50 |
6400 |
600 |
565 |
80 |
80(64)*80*8 |
120 |
56 |
1950 |
820 |
356 |
100 |
100(80)*100*10 |
110 |
53 |
1000 |
850 |
252 |
120 |
120(96)*120*12 |
75 |
55 |
370 |
860 |
146 |
150 |
150(120)*150*15 |
60 |
58 |
295 |
980 |
101 |
Note: The above data is for reference only. | ||||||
Our advantages:
1. We will supply with the best price in 24 hours.
2. We will supply with all information to u ,about package, weight etc.
3. Except the size we have now , We also can produce special size as u need.
4. We can communicate with u by Fluently and professional English .
5. If u are urgent, U can add my Skype: evelyn8711291 , or Call me at any time: 8615279918717.
6. For all products u buy, our product's warranty is for 2 years.
Our service at promise:
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credit , promise to protect your sales data, design,patent info.
