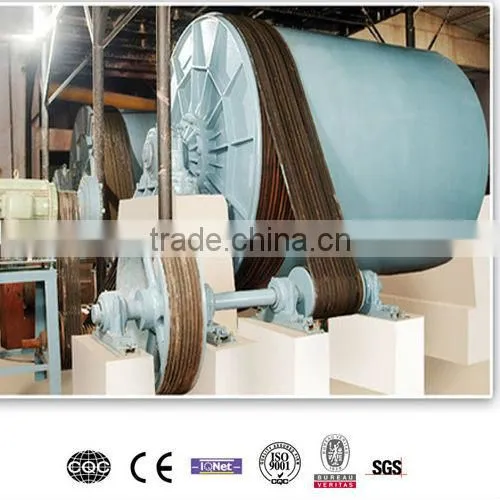

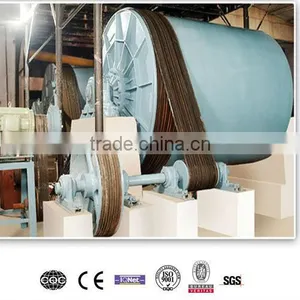

Clay Edge Driving Intermittent Ball Mill

US$ 8,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Ball Mill

Motor Type:

AC Motor

Henan Machinery & Equipment Company Limited

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao tianjin shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Ball Mill

Motor Type AC Motor

Power(W) 245

Capacity(t/h) 7.5-17

Place of Origin Henan, China

Brand Name MS

Model Number 1830X7000

Weight 36T

Certification ISO:9001:2008

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

intermittent ball mill Application:

The Intermittence Ball Mill also named as Ceramic Ball Mill.

It’s widely used for grinding material which can’t contain iron, such as ceramic industry, glass industry, and chemical industry and so on.

Ceramic batch ball mill Features:

1) After finished material is discharged, another raw material can be put in for grinding, cant continuous feeding and discharge material.

2) Different liners and grinding media can be used to meet different requirements.

3) The fineness of grinding material depending on milling time

4) It can be used for wet or dry grinding, finished slurry can pass 1000mesh screen.

Ceramic ball mill technical data

Model	Capacity	Rotation speed(r/min)	Motor power(kw)	Weight(t)	Remarks
TCQ910×1120	0.2	36	5.5-11	3	(ceramic, silica, rubber, metal (mating power is different with different liner material quality and grinding material)
TCQ1200×1400	0.5	32	11-18.5	3.8
TCQ1500×1800	1	28	15-22	4.5
TCQ1800×2100	1.5	26	18.5-30	6
TCQ2100×2100	2.5	22	22-37	7.4
TCQ2200×2400	3	20	28-45	8.2
TCQ2500X2900	5	16	37-55	19
TCQ2800X3700	8	14.5	55-75	26
TCQ3000X3700	10	14	75-90	32
