High Productivity of Stone Raymond Mill For Sale

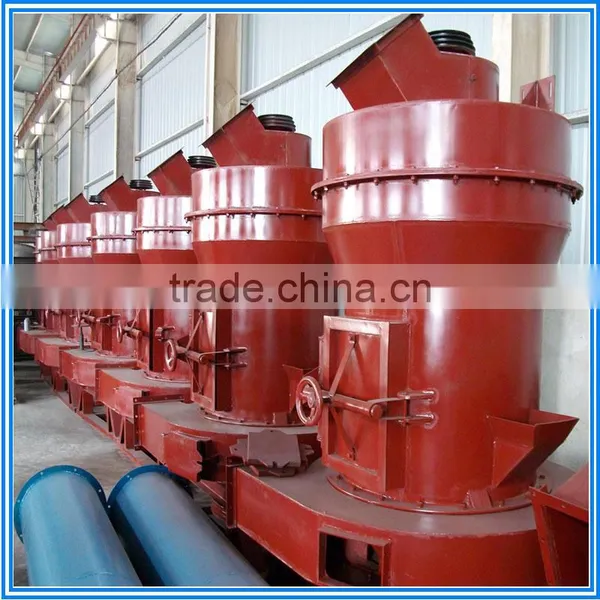

Introduction of Mini Raymond Mill :
Mini Raymond Mill is used in the mining, metallurgical, industrial, chemical engineering and building material industries.
This series, our patent product, is used in grinding the non-inflammable and non-explosive stuff with Moh’s hardness below 9.3 and humidity less than 6%, such as barite, limestone, ceramics, slay, etc.
Fineness of final product can be adjusted between 80 and 425 meshes and part of then can add up to 1000 meshes of final being equipped particular parts, the machine can produce coarse powders ranging from 30 to 80 meshes.
Structure of Mini Raymond Mill :
1. The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
Working Principle of Mini Raymond Mill :
Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.
After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure.
Technical Parameter of Mini Raymond Mill :
Model Data |
3R1410 |
3R2615 |
3R2714 |
4R2714 |
3R3016 |
4R3016 |
4R3216 |
5R4119 |
6R4525 |
Max.Feeding Size (mm) |
5-8 |
20 |
20 |
15-25 |
15-25 |
15-25 |
25 |
30 |
30 |
Fineness Of Product (mm) |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
Capacity/Shift(t/8h) (Range Diff Materials) |
1-10 |
2-25 |
2-28 |
3-30 |
3-34 |
3-36 |
3-38 |
6-76 |
10-120 |
Speed (r/m) |
280 |
170 |
170 |
170 |
178 |
178 |
130 |
105 |
82 |
Inner ring Diameter (mm) |
¢405 |
¢780 |
¢830 |
¢830 |
¢910 |
¢910 |
¢970 |
¢1280 |
¢1770 |
Roller Diameter (mm) |
¢140 |
¢260 |
¢270 |
¢270 |
¢300 |
¢300 |
¢320 |
¢410 |
¢450 |
Height (mm) |
100 |
150 |
140 |
140 |
160 |
160 |
160 |
190 |
250 |
Main Motor Power (kw) |
Y160M-6-7.5 |
Y225S-8-18.5 |
Y255M-8-18.5 |
Y225M-8-22 |
Y225M-8-30 |
Y225M-8-30 |
Y225S-4-37 |
Y280S-4-75 |
Y315M-4-132 |
Fan Motor Model (kw) |
Y132S-4-5.5 |
Y180M-4-15 |
Y180M-4-18.5 |
Y180M-4-18.5 |
Y180L-4-22 |
Y180L-4-22 |
Y220M-4-30 |
Y25M-4-55 |
Y315M-4-132 |
Classifier Motor (kw) |
Y90L-6-2.2 |
Y112M-6-2.2 |
Y112M-6-2.2 |
Y112M-6-2.2 |
Y132S-6-3 |
Y132S-6-3 |
YC1200-4A-5.5 |
YC1200-4B-7.5 |
Y160M-4-11 |
Dimensions (mm) |
3340×2161 ×3246 |
5970×4000 ×5000 |
5970×4000 ×5000 |
5970×4000 ×5000 |
7500×4500 ×6200 |
7500×4500 ×6200 |
9900×5800 ×8500 |
7850×8000 ×9700 |
8850×10500 ×1100 |
Weight (kg) |
2500 |
3800 |
3850 |
3900 |
7000 |
7500 |
14000 |
257000 |
470000 |
About us:
Our certificate:
Service:
Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing th e most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
...
