Micro mill plant description
this plant is widely used in dry powder process of metallic and nonmetallic minerals, and powder size can be adjusted between 30 mesh and 2000mesh, the processed ores include limestone, calcite, marble, kaolin, gypsum, barite, coal ash, slag, carbide, brown aluminia, cement, quartz, feldspar, refractory, etc

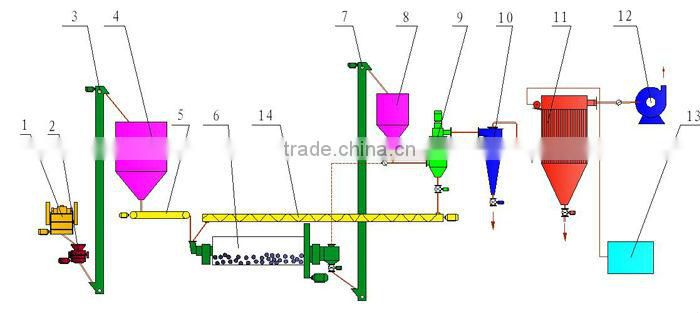

miro mill plant working principle
raw materials are elevated by bucket elevator to ball mill for being ground, materials ground by ball mill are sent to classifier for being separated, so the coarse powder and fine powder are separated, fine powder with suitable size is collected by cyclone collector, coars powder is discharged from bottom part of classifier and sent back by returning sprial to ball mill for being re-ground, this is a closed cycle, the air is discharged by blower after being cleaned by pulse dust collector
Ball Mill Technical Data
Model |
Speed of bucket (r/min) |
Weight of ball (t) |
Size of feed opening (mm) |
size of outputting feed (mm) |
Production (t/h) |
Power (Kw) |
Weight (t) |
Φ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
Φ900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
Φ1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
Φ1200×3000 |
32 |
5 |
≤25 |
0.075-0.4 |
1.6-5 |
45 |
12.8 |
Φ1200×4500 |
32 |
7 |
≤25 |
0.075-0.4 |
1.6-5.8 |
55 |
13.8 |
Φ1500×3000 |
27 |
8 |
≤25 |
0.075-0.4 |
2-5 |
90 |
17 |
Φ1500×4500 |
27 |
14 |
≤25 |
0.075-0.4 |
3-6 |
110 |
21 |
Φ1500×5700 |
27 |
15 |
≤25 |
0.075-0.4 |
3.5-6 |
132 |
24.7 |
Φ1830×3000 |
24 |
11 |
≤25 |
0.075-0.4 |
4-10 |
180 |
28 |
Φ1830×6400 |
24 |
23 |
≤25 |
0.075-0.4 |
6.5-15 |
210 |
34 |
Φ1830×7000 |
24 |
25 |
≤25 |
0.075-0.4 |
7.5-17 |
245 |
36 |
Φ2200×5500 |
21 |
30 |
≤25 |
0.075-0.4 |
10-22 |
370 |
48.5 |
Φ2200×6500 |
21 |
30 |
≤25 |
0.075-0.4 |
14-26 |
280 |
52.8 |
Φ2200×7500 |
21 |
33 |
≤25 |
0.075-0.4 |
16-29 |
475 |
56 |
...
