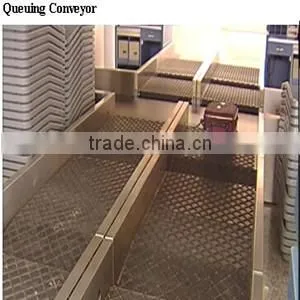

Airport baggage queue conveyor
Sketch Map of queue conveyor
As part of the check-in and ticketing system, the queue conveyor is the front-end equipment of the baggage handling system. The passengers will put the baggage on the weighing/labeling conveyor to measure its weight and size. If the baggage is normal, the operator will label it and have it sent to the queue belt conveyor. At the end of the queue belt conveyor, baggage will automatically stop on the queue belt conveyor to wait for the baggage window. When the baggage window of the collection conveyor appears, the queue belt conveyor will automatically start up and deliver the baggage to the collection conveyor.
Main Technical parameters of queue conveyor
|
Length of the conveyor(L) |
1200mm~3000mm |
Static load |
150kg/m |
Side plate |
GB304 |
|
Height of the belt surface(H1) |
330m~400mm |
Dynamic load |
50kg/m |
Slinding bed
board
|
Q235 |
|
Height of the whole machine(H2) |
400mm~650mm |
Head roller |
Φ60mm |
Fittings |
Q235
|
Belt width(W1) |
450mm~680mm |
Tail roller |
Φ60mm |
Trundle plate |
Q235 |
Side placte spacing(W2) |
480mm~720mm |
Tension roller |
Φ60mm |
Plug pin |
Q235 |
Conveyor width(W3) |
600mm~840mm |
Electric roller |
Φ113mm/Φ135mm/Φ138mm |
||
Speed |
21m/min~30m/min |
Electronic scale |
AccuacyIII GB I4249.2-93 III) |
Belt |
Anit-skid, antiflaming, antistatic |
Noise |
≤65dB(A) (Ground clearance of 1m,1m away from the sound source, environmental noise 50 dB(A)) |
||||
Structural representation
Optional size
Belt width
450mm,500mm,550mm,600mm,650mm,680mm and so on as you like
Conveyor length
1200mm,1300mm,1400m,1500m and so on
Packing & Shipping
Certification
You Ask & I Answer
1.Are you a manufacturer or trader?
A: Factory + trade (mainly factories, at the same time, we operates other related products)
2.Can we visit your factory?
A: Sure,welcome at any time,seeing is believing.
3. Do you provide samples?
A: Yes, samples are available.
4.Which payment terms are you accept?
A: T/T,LC,Western Union,moneygram,Paypal are available for us.
5. Do you accept OEM?
A: Yes, we can do OEM.
6.What's the MOQ of trial order?
A: No limit,We can offer the best suggestions and solutions according to your condition.
7.How long is delivery time?
A: The delivery time will be determined according to the quantity of the order.
8.How are your products’ quality?
A: The products will be strictly inspected before shipment, so the quality could be guaranteed.
9.What is the service life of your bricks?
A: The service life of different bricks is unlike.It also depends on your using condition and method.
10.How to solve the quality problems?
A: If the products are not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
11.How about your company's certification?
A: SGS,ISO9001 and Test Report,also we could apply other necessary certification.Packaging & Shipping
