Airport baggage take away conveyor
1.MTTR < 10 minutes
2.Bearing: NSK Japan
3.Customized is available

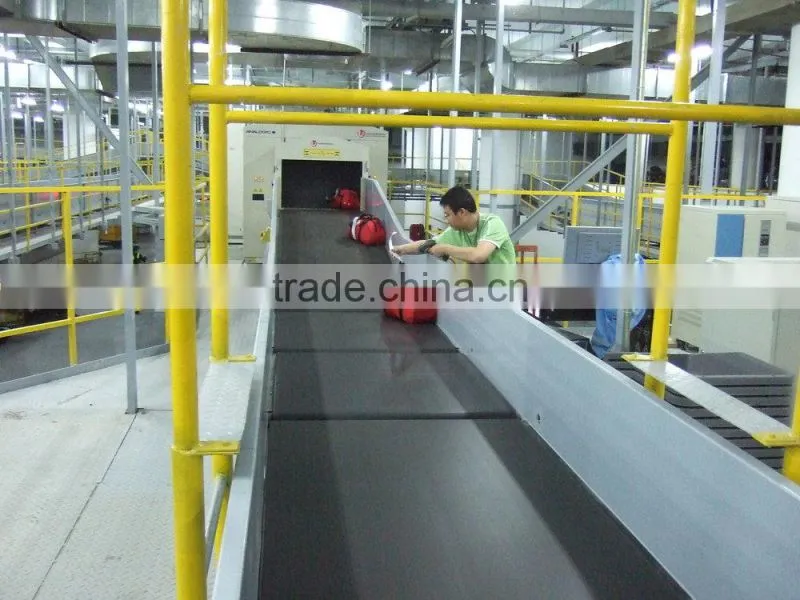

Airport baggage take away conveyor
Sketch Map of Take Away Conveyor
The take away conveyor in the departure hall is the front-end equipment of the baggage handling system. Since the baggage is on the moving belt, it has a high moving capacity. The reliability of the take away conveyor highly influences the reliability of the whole baggage handling system. After weighing and labeling, the baggage will be sent to the end of the queue belt conveyor, where a photoelectric cell will be triggered. The baggage will stop and wait for the window; when the baggage window of the take away conveyor appears, the queue belt conveyor will deliver the baggage to the take away conveyor. The queue belt conveyor has a special belt surface to prevent the baggage from sliding during the conveying process.
Main Technical parameters of take away Conveyor
Main parameters:
l Type BL
l Dimensions Length: 1200mm Height: 350mm Length customized
l Belt Width 1000mm
l Frame width:1040mm
l The maximum length of the slide bed parts:3000mm
l Side guide plate height above the conveyor belt: 200mm
l Roller, roller:φ60×650
l Bearing:NSK Japan
l Power device:Germany SEW
l Control switch, element:The French SCHNEIDER, XB2-BD21C automatic / manual
switch of motor
l The exposed side guide plates, apron hairline stainless steel plate, the thickness of
2mm
l Speed30 m/min~45m/min
l Load capacity Static: 150 kg/m Dynamic: 50~100 kg/m.
l Drive A standardized drive unit of electric roller is applied.
l Belt types Holland AMMERAAL belt, anti-skid, flame retardant, antistatic
l Frame: Q235-C plate, thickness 3mm
l Baffle plate, protective plate: Q235-C plate,, thickness 2mm
Structural representation
Optional size
Belt width
450mm,500mm,550mm,600mm,650mm,680mm,1000mmm and so on as you like
Conveyor length
1200mm,1300mm,1400m,1500m,2000mm and so on
Packing & Shipping
Certification
