Airport Plane Baggage Carousel
1.MTTR<10minutes
2.Lowest industry noise level:Leq 65dB(A)
3.Meets all international standards
Airport Plane Baggage Carousel
The arrival reclaim carousel shall be coated with aluminium or steel bearers and overlapping black slats. They shall form a closed loop. Each bearer shall have 2 low-noise bearing wheels, which will roll along the welded steel frame. When the reclaim carousel is started, the system shall give an audible and visual alarm, and two roller shutters shall open; only when the two roller shutters fully open, the reclaim carousel can operate. The system has an automatic shutdown function for energy saving; when the system is out of action, the roller shutters will automatically close. The reclaim carousel shall use a soft starter to start up.
Main parameters:
Type BO-H
Dimensions width: 1040 mm Height: 360 mm
Slat Width 1000 mm
Chain: Aluminum casting,P=250mm
Frame: Q235-C plate, thickness 3mm
Baffle plate, protective plate: Q235-C plate,Public area adopts stainless steel plate
Speed 25 m/min~30/min
Load capacity Static: 150 kg/m Dynamic: 100 kg/m.
Control switch, element: The French SCHNEIDER, 3DL2103automatic / manual switch of motor
Scale plate:Black reinforced synthetic rubber plateThick 6mm, flame retardant, antistatic, aging resistance
Power device: Germany SEW SSeriesMotor reducer
The exposed side guide plates, apron hairline stainless steel plate, the thickness of 2mm

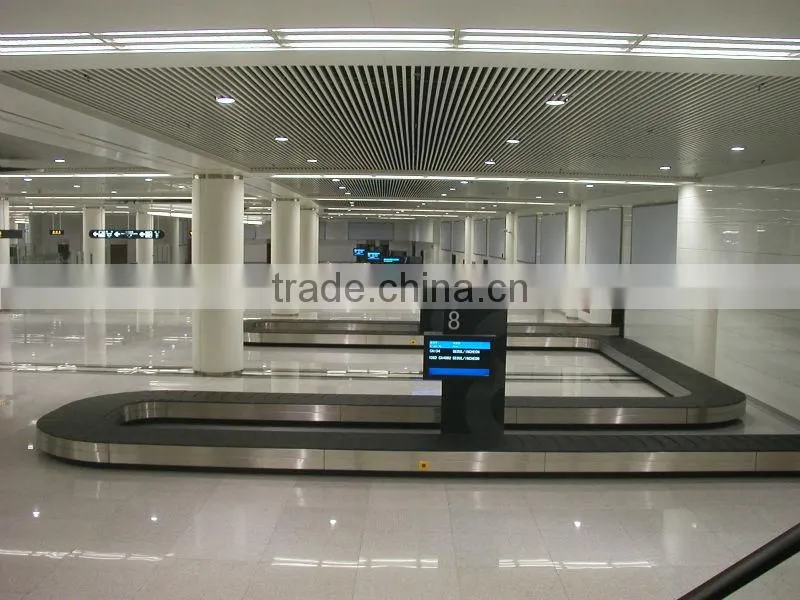

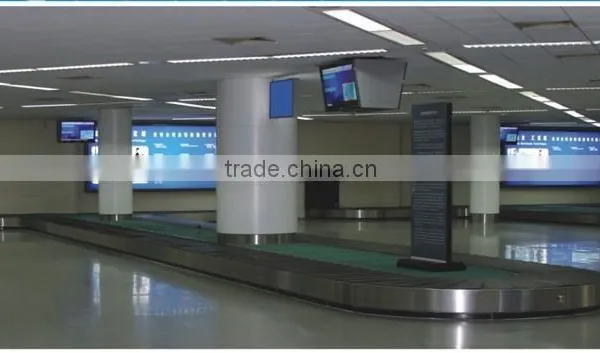

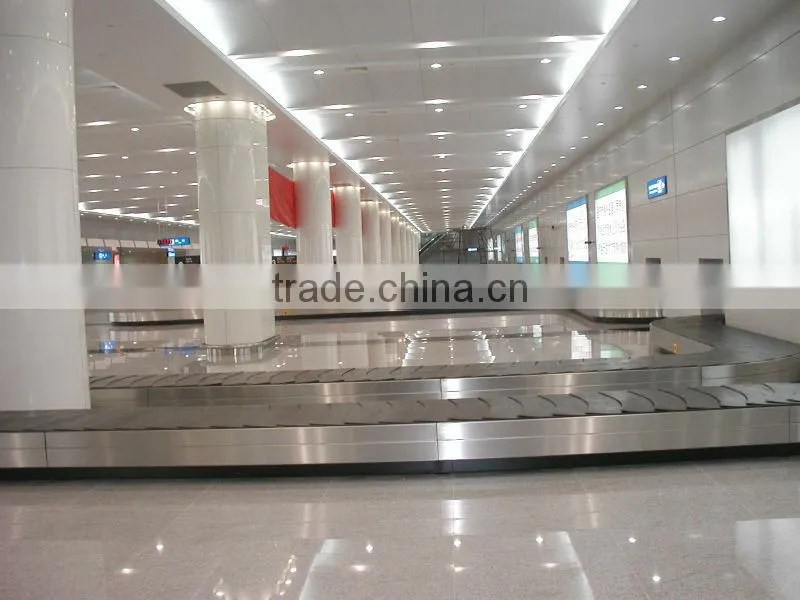

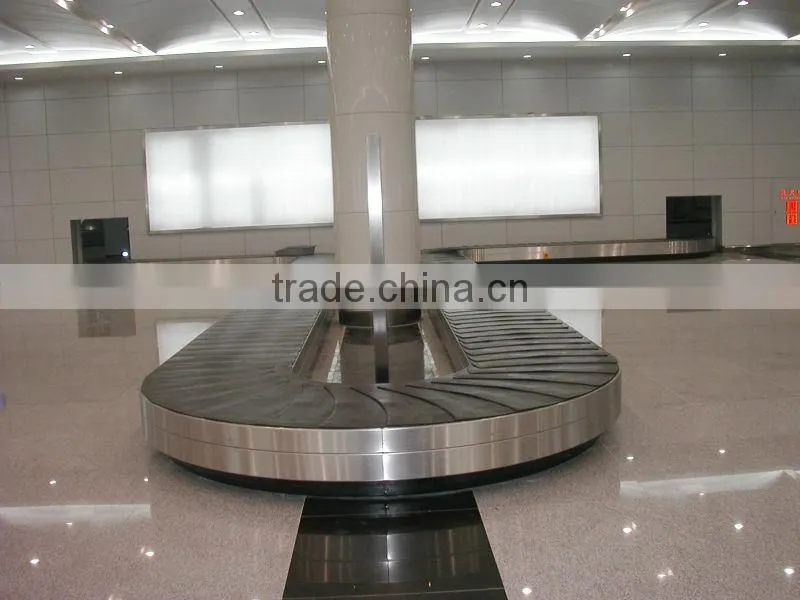

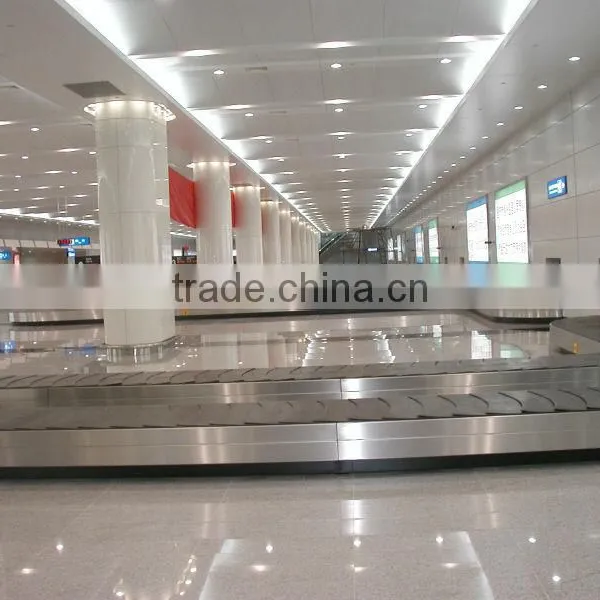

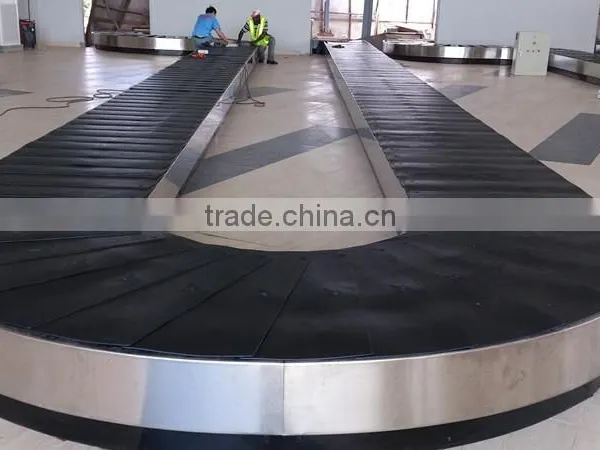

Prodcut Picture
