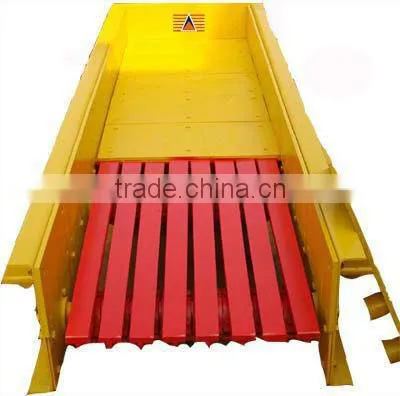

High Quality Vibrating Feeder

High Quality Vibrating Feeder thumbnail-1
High Quality Vibrating Feeder photo-1
US$ 10,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
mining, construction
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Henan Light Industrial Products Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application mining, construction
Power Type Electric
Capacity(t/h) 30~450 t/h
Place of Origin Henan, China
Brand Name YULITE
Model Number GZD/GSW
Power(W) 3~22
Weight 6.5~30T
Certification CE&ISO
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

High Quality Vibrating Feeder





Introduction of vibrating feeder



The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating Feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.





Working Principle of Vibrating Feeder:

There are two   eccentric shafts rotating at high speed at the same time from opposite   directions, thus the strong centrifugal force is formed. The component forces of   centrifugal force along the vibrating direction will always overlap each other,   then counteract with that of vertical force from vibrating direction, then   exciting force along single direction is formed to drive the feeder vibrate   along straight line. When materials are fed into the feeder, they may be thrown   up and move like Para curve, then fall down. The materials will move forward on   the slope surface of the feeder.







Characteristics of Vibrating Feeder:

Smooth vibration,

Reliable operation,

Long service life,

Low noise,

Low power consumption,

Easy to adjust,

Simple structure,

Easy to install,

Light weight,

Small volume,

Simple maintenance.





Technical data of Vibrating Feeder



Model

Max Feed Size (mm)

Capacity (t/h)

Speed of Eccentric Shaft(r/min)

Power  (KW)

Electric Model (r/min)

Overall Dimension (mm)

Weight (t)

GZD180×80

300

30-80

-

2×1.5

970

2200×1100×800

0.8

GZD300×90

500

40-100

-

2×2.2

970

3050×1430×1550

1.5

GZD370×100

700

150-300

-

2×3.2

970

4250×1874×1130

3.64

GZD430×120

800

200-400

-

2×5.5

970

4955×2206×1120

4.2

ZSW380×96

500

90-100

500-174

11

750

3882×2224×2121

3.98

ZSW490×96

500

120-240

500-800

15

1000

4957×2277×2150

5

ZSW490×110

580

120-280

500-800

15

1000

4957×2400×2150

6.32

ZSW590×110

600

350

750

22

1000

6000×2500×2150

6.13

ZSW600×130

750

400-560

400-800

22

1000

6082×2580×2083

7.8
