Biogas Generator 160KW/200KVA/Biomass Power Plant/Waste to Engery 60Hz

Biogas Generator 160KW/200KVA/Biomass Power Plant/Waste to Engery 60Hz thumbnail-1
Biogas Generator 160KW/200KVA/Biomass Power Plant/Waste to Engery 60Hz thumbnail-2
Biogas Generator 160KW/200KVA/Biomass Power Plant/Waste to Engery 60Hz thumbnail-3
Biogas Generator 160KW/200KVA/Biomass Power Plant/Waste to Engery 60Hz photo-1
Biogas Generator 160KW/200KVA/Biomass Power Plant/Waste to Engery 60Hz photo-2
Biogas Generator 160KW/200KVA/Biomass Power Plant/Waste to Engery 60Hz photo-3
US$ 20,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Camda
Model Number:
KDGH160-G
Contact Supplier Request Quote Chat Now
Camda New Energy Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Camda
Model Number KDGH160-G
Output Type AC Three Phase
Speed 1800rpm
Frequency 60HZ
Rated Power 160KW/200KVA
Rated Voltage 220/480
Rated Current 240A

Camda Biogas Power Generator for sale/Biomass generator/Renewable energy/Waste cheatment/CHP generator/Gas engine/Biogas power plant with CE&ISO certificates

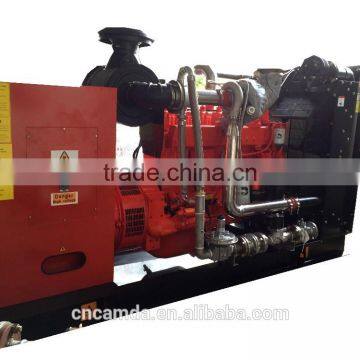

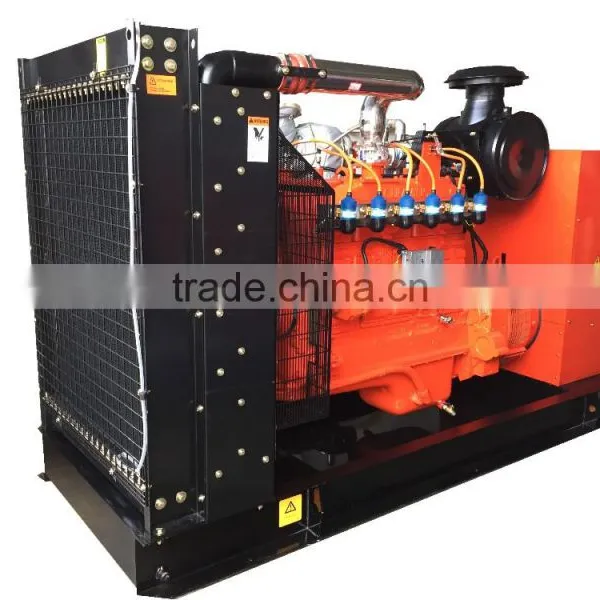

Biogas generator 160KW/200KVA/Biomass power plant/Waste to engery 60Hz

Genset Specification


Gas genset data

Genset model

KDGH160-G

Prime power (kW/KVA)

160/200

Continuous power (kW/KVA)

160/200

Output Voltage (V)

220V/127V, 3 Phases 4 Lines

Power factor cosfi

0.8 lagging

Frequency (Hz)

60

Rated speed (RPM)

1800

Open type Genset Overall

Dimension (mm)

3200x1100x1800

Soundproof type Genset Dimension (mm)

4600x1600x2200

Net weight without canopy(kg)

2500

Gas Engine Data

Model

HGNT14

Brand

CAMDA

Type

4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning

Cylinders& Arrangement

6L

BoreXStroke (mm)

140X152

Displacement(L)

14

Compression ratio

11:1

Aspiration

Intercooled and Turbocharged

Cooling Method

Radiator

Governor type(speed regulating type)

Electronic governing

Starting method

Electric, 24 V motor

The lowest gas consumption(m3/kw.h)

0.6

Idling speed(r/min)

700

Oil recommended

SAE 15W-40 CF4 or above

Oil consumption

≤1.0g/kW.h

Alternator Data

Brand

Leroy Somer

Model

LSA46.2M3

Rated power

176kW / 3 phase

Rated Voltage (V):

220~480 (±0.5%)(AC)

Type

3 phase/4 wire, brushless, automatic voltage regulator, drip proof, protected type.

Frequency (Hz)

60

Efficiency:

93.1%

Voltage regulation

± 0.5 %(adjustable)

Insulation class:

Class H

Protection class:

IP 23

cooling method:

wind-cooling, self-heat-rejection

Voltage regulating mode

Automatic voltage regulator

Compliant with international standards:

IEC 60034-1, NEMA MG1.22, ISO 8528/3, CSA, UL 1446, UL 1004B on request, marine regulations, etc.

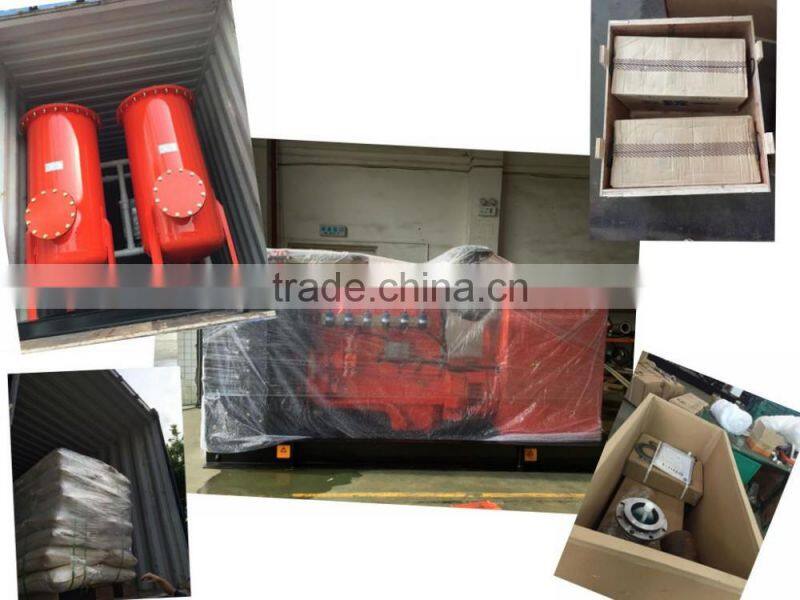

Shipment to Thailand:

 Biogas generator 160KW/200KVA/Biomass power plant/Waste to engery 60Hz

Main Service of Biogas Power Plant



Design of biogas plant.
Drawing books enable customer to do civil work and construction.
Detailed material list enables customer to choose and purchase the right equipments, devices and materials easily.

We offer services of construction and installation guide,project inspection and acceptance.



Application Scope of Biogas Power Plant



1. Farm Waste Management Biogas

2. Food Waste Management Biogas

3. Industry Water Waste Management Biogas

4. Landfill Waste Management Biogas



Product Description

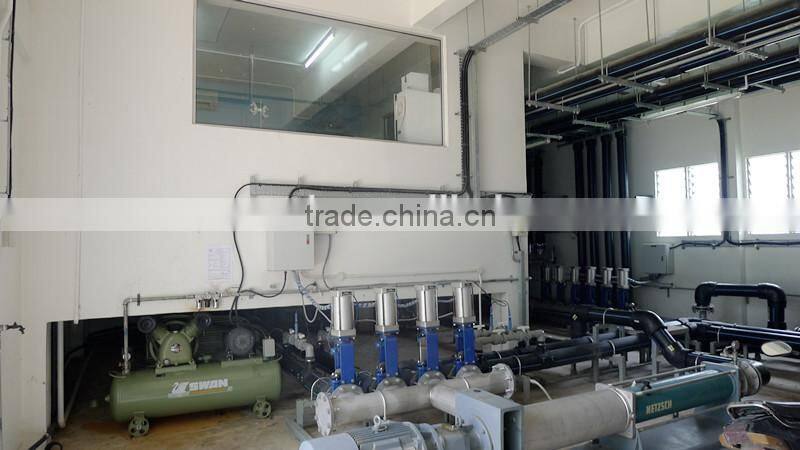

300KW Biogas Genset/ Biogas Generator/ Biogas Waste Power Plant in Malaysia

All biogas equipments as below:

Power Capacity:(300KW)

Install and debuge: 2014

Biogas plant type:  farm waste biogas

Biogas plant destination: Malaysia

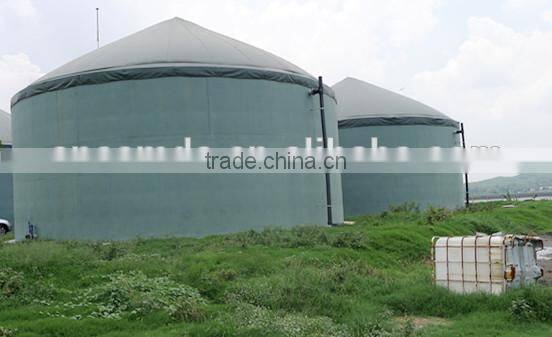

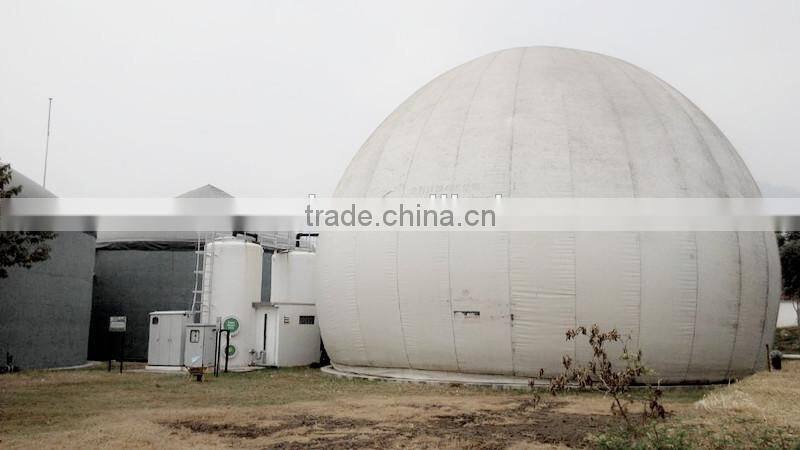

Biogas anaerobic digestor and biogas gas holder

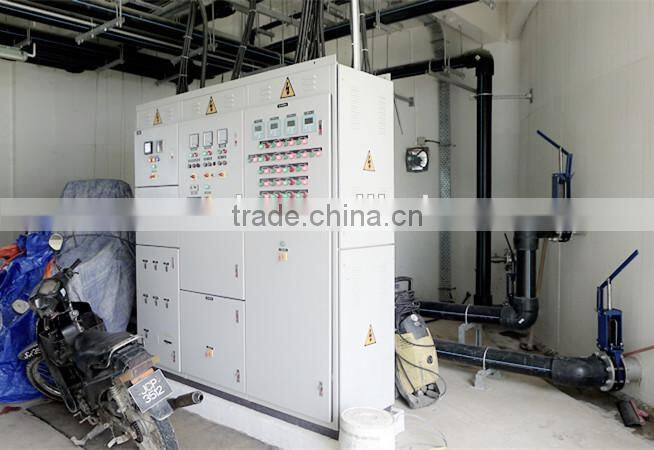

Electric control devices

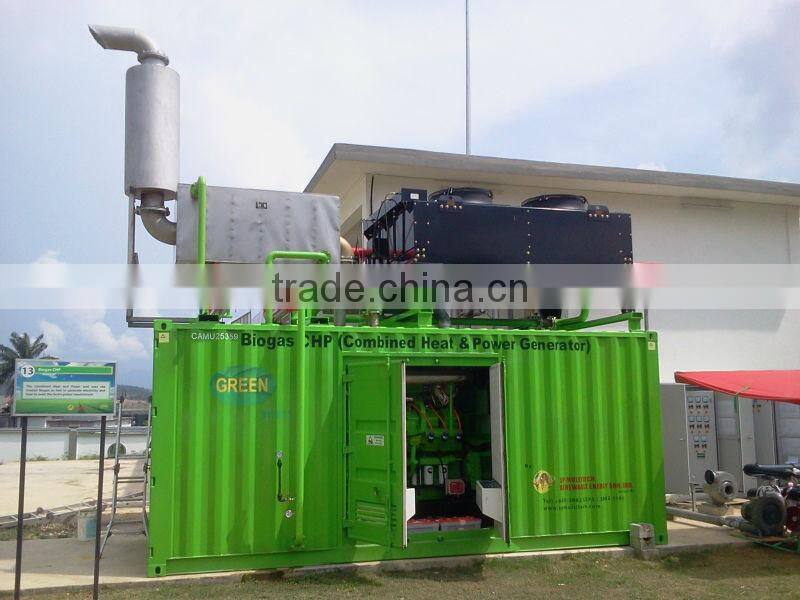

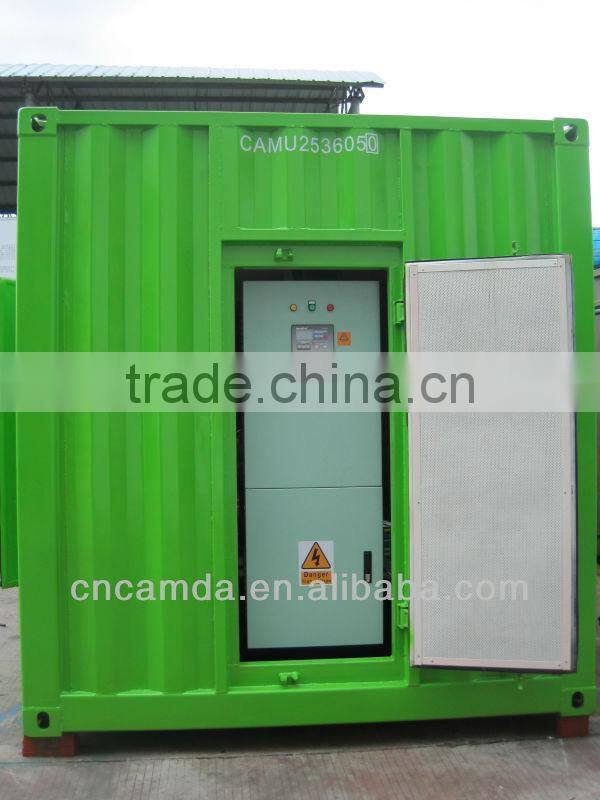

Biogas generator set with sound and water proof container,remote radiator, auto air/gas mixer system,sychronizing grid parallel control system







Auxiliary devices of Biogas Power Plant







Company Information



Camda is established in 1998, located in Dong guan City, with a new industrial park covering 34000m2, dedicated system supplier of energy production,100MW installation capacity annually,anual sales revenue 680 million dollars.

Camda is a dedicated system supplier of energy production by diesel and gas powered generator set, waste treatment projects and solar energy. The company, based in Dongguan of Southern China, is basically a manufacturer of generator set for various kinds of fuel such as diesel, natural gas, biogas coal bed methane (CBM), associated gas and syngas. With decades of development and innovation, it has expanded its business to provide one-stop solution for waste treatment based on landfill, food waste, animal manure and waste water. Meanwhile, its pioneering in solar thermal power enables it to compete both at home and abroad.
