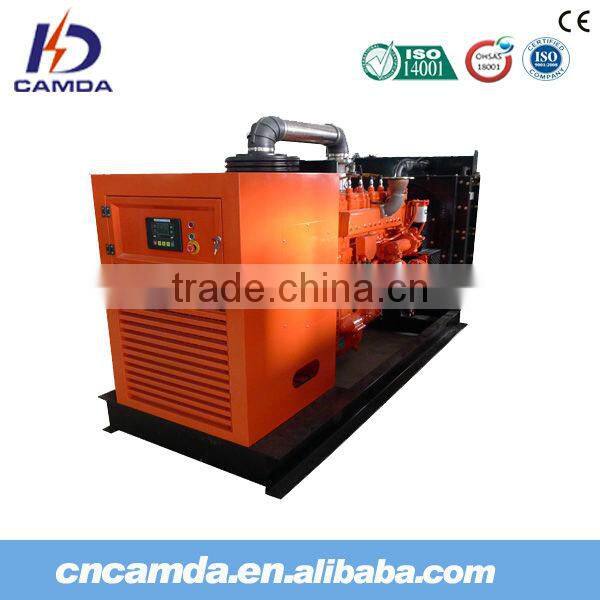

100 KW Camda Biogas Power Generator /Biomass generator/Bio gas engine/Biomass power plant/Biogas Cogeneration with CE&ISO certificates
Advantages For Biomass Electric Generator (import gas engine based)
Natural gas and biogas as fuel
CE,ISO international quality control certificate approval
Low operation cost
Low gas consumption
1.Adopt gas engine block,so the instructure is very strong. Also it is easy for customer to get maintenance spare parts.
2. Adopt advanced Hall ignition sensor and Highly capable USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
3. Adopt ComAp Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
4.The gas inlet pressure is only 2~12kPA,so almost all city pipe gas pressure can be satisfied,not to mention biogas. So there is no need for customer to install blower to increase pressure and save cost for you.
5. Electrical Air/Gas mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
6. Long designed overhaul term: 25000~30000 hours
7. Comply with CE standard, ISO9001:2008 quality management system, ISO14001:2004 and OHSAS 18001:2007.
Product Descriptions:
Genset Specification
Biogas genset data | |
Genset model |
KDGH100-G |
Continuous Power(kW/KVA) |
100/125 |
Connection Type |
3 Phases 4 Wires |
Power factor |
0.8 lagging |
Output Voltage |
400/230V |
Frequency (Hz) |
60 |
Rated speed (RPM) |
1800 |
Steady-state voltage regulating rate |
≤±1.5% |
Voltage recovery time (s) |
≤1 |
Voltage fluctuation rate |
≤1% |
Frequency recovery time (s) |
≤7 |
Frequency fluctuation rate |
≤1% |
Open type Genset Overall Dimension (mm) |
2950x1100x1800 |
Soundproof type Genset Dimension (mm) |
4600x1600x2200 |
Net weight without canopy (kg) |
2525 |
Biogas Engine Data | |
Model |
HGN14 |
Brand |
CAMDA |
Type |
4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning |
Engine output(kWm) |
145 |
Cylinders& Arrangement |
6 in line |
Bore X Stroke(mm) |
140X152 |
Displacement(L) |
14 |
Compression ratio |
11:1 |
Aspiration |
Natural |
Gas mixer |
Venturi type CW-50 |
Gas valves |
Intake 2 & exhaust 2 per cylinder |
Gas inlet pressure |
2 to 10kPa |
Ignition timing |
1-5-3-6-2-4 |
Ignition controller |
Altronic CD1 unit |
Cooling Method |
Water cooled |
Governor type(speed regulating type) |
Electronic governing |
Starting method |
Electric, 24 V motor |
Biogas consumption(MJ/kW.h) |
10.8 |
Idling speed(r/min) |
700 |
Oil recommended |
SAE 15W-40 CF4 or above |
Oil consumption |
≤0.8g/kW.h |

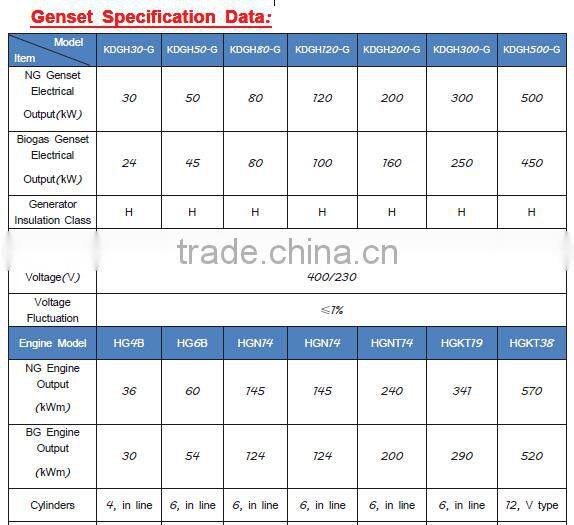

Product list:

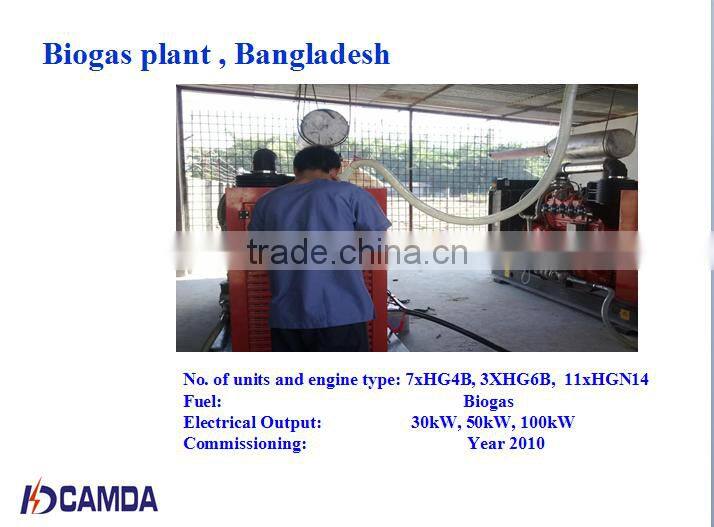

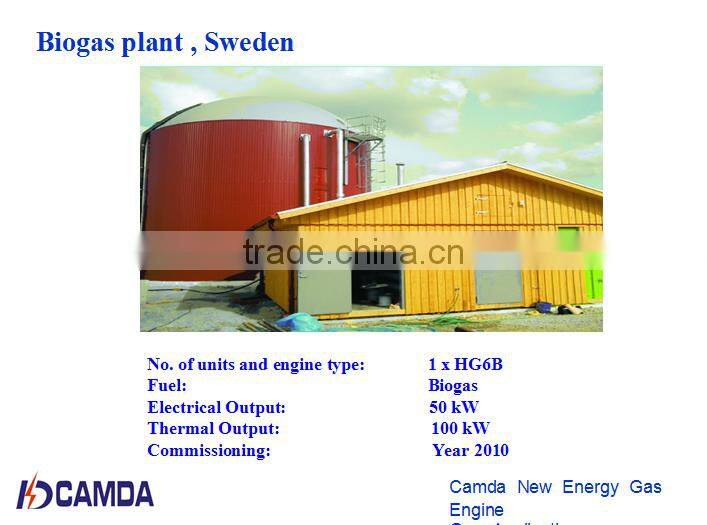

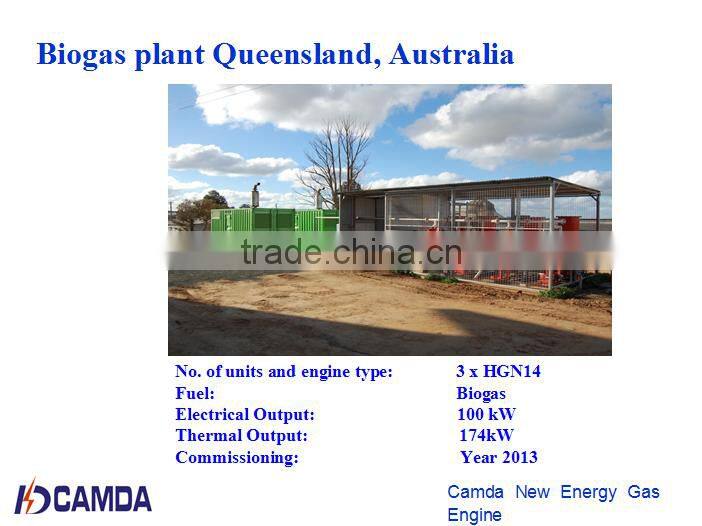

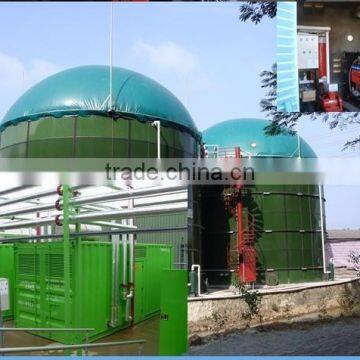

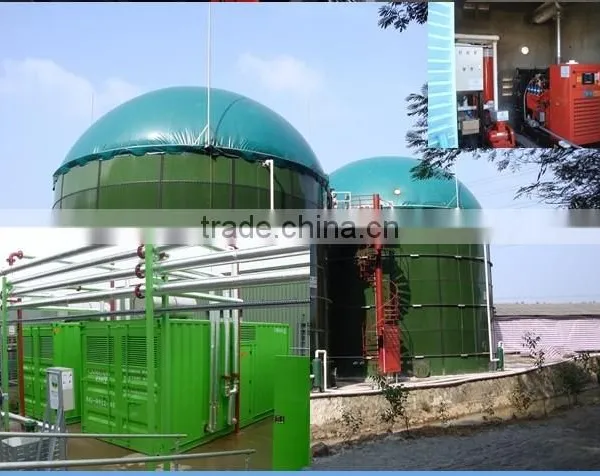

Power plant project around the world:
Production process:
Company and certifications:
Genset lifetime and Warranty
LIFETIME
According to product design and end users' years experience, strictly following our operation manual and make genset load under 85% of prime power, we guarantee the major overhaul terminal more than 15000 hours, and lifetime is over 20 years.
AFTER SERVICE
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since leaving China port, our company provides free easily- damaged parts for the faults caused by the quality of products
or raw material, but exclude the damageable parts of engine due to customer's incorrect man-made operation. After expiration, our company provides spare parts with cost for maintenance forever.
