Home > Products > Gas Generator Sets > small biogas generator 30KW for sale/ waste to energy power plant

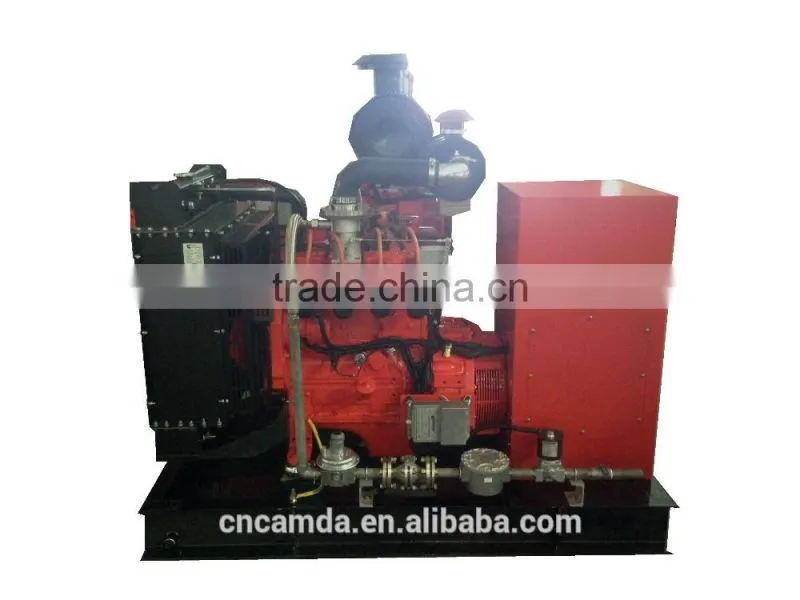

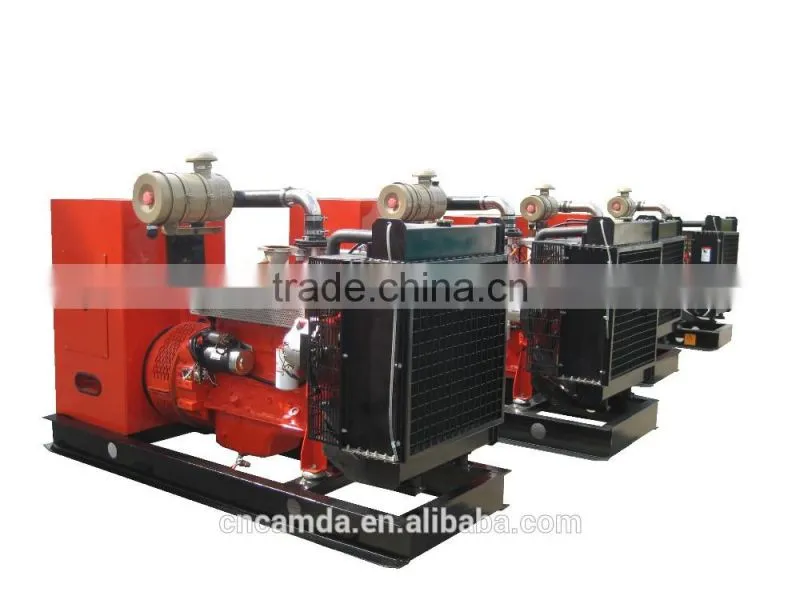

small biogas generator 30KW for sale/ waste to energy power plant
- 3500 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Camda | Model Number: | KDGH30-G |
Output Type: | AC Three Phase | Speed: | 1800rpm | Frequency: | 60Hz |
Rated Power: | 30kw/37.5kva | Rated Voltage: | 220/480V | Rated Current: | 45A |
Product Description
Camda Small Biogas Power Generator for sale /Gas generator/Biogas engine/Gas engine/ Power plant/Cogeneration with CE&ISO certificates
Advantages For Biogas Electric Generator (gas engine)
Natural gas and biogas as fuel
CE,ISO international quality control certificate approval
Low operation cost
Low gas consumption
1.Adopt gas engine block,so the instructure is very strong. Also it is easy for customer to get maintenance spare parts.
2. Adopt advanced Hall ignition sensor and Highly capable USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
3. Adopt ComAp Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
4.The gas inlet pressure is only 2~12kPA,so almost all city pipe gas pressure can be satisfied,not to mention biogas. So there is no need for customer to install blower to increase pressure and save cost for you.
5. Electrical Air/Gas mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
6. Long designed overhaul term: 25000~30000 hours
7. Comply with CE standard, ISO9001:2008 quality management system, ISO14001:2004 and OHSAS 18001:2007.
Product Descriptions:
Model Item | KDGH30-G |
Power (KVA/kWe) | 37/30 |
Rated Voltage (V) | 400/230 |
Frequency (Hz) | 60 |
Speed (RPM) | 1800 |
Engine model | HG4B |
Mechanical Efficiency (%) | 36.5 |
Electrical Efficiency (%) | 34.6 |
Rated current(A) | 45 |
Voltage Stabilized regulation | ≤±1.5% |
Voltage Instantaneous regulation | ≤±20% |
Voltage Recovery time(S) | ≤1 |
Voltage Fluctuation ratio | ≤1% |
Voltage Wave aberration ratio | ≤5% |
Frequency Stabilized regulation | ≤1%(adjustable) |
Frequency Instantaneous regulation | -10%~12% |
Frequency Recovery time(S) | ≤7 |
Frequency Fluctuation ratio | ≤1% |
Generator Insulation class | H |
Noise level(dB) | ≤95 |
Dry weight(kg) | 900 |
Dimension(mm) | 1800x710x1350 |

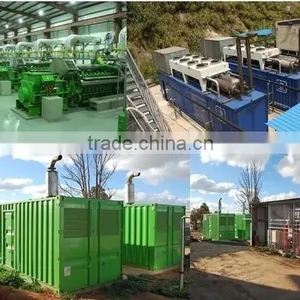

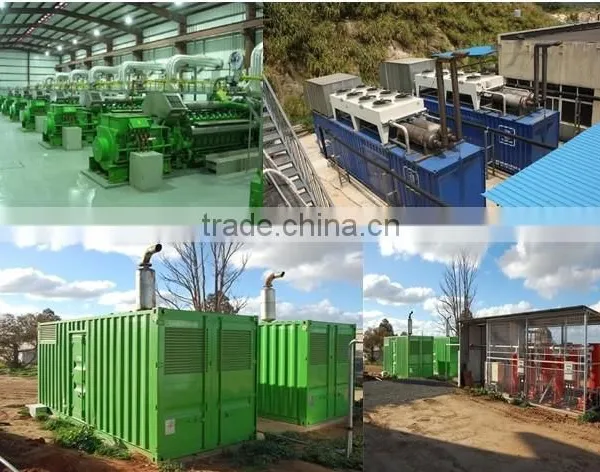

Power plant project around the world:
Company and certifications:
Genset lifetime and Warranty
LIFETIME
According to product design and end users' years experience, strictly following our operation manual and make genset load under 85% of prime power, we guarantee the major overhaul terminal more than 15000 hours, and lifetime is over 20 years.
AFTER SERVICE
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since leaving China port, our company provides free easily- damaged parts for the faults caused by the quality of products
or raw material, but exclude the damageable parts of engine due to customer's incorrect man-made operation. After expiration, our company provides spare parts with cost for maintenance forever.
