Camda Hot Sale Biogas Generator 50kw /Waste to energy generator/CHP generator/Biomass power plant
Advantages For Biogas Electric Generator (DCEC gas engine based)
Natural gas and biogas as fuel
CE,ISO international quality control certificate approval
Low operation cost
Low gas consumption
1.Adopt gas engine block,so the instructure is very strong. Also it is easy for customer to get maintenance spare parts.
2. Adopt advanced Hall ignition sensor and Highly capable USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
3. Adopt ComAp Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
4.The gas inlet pressure is only 2~12kPA,so almost all city pipe gas pressure can be satisfied,not to mention biogas. So there is no need for customer to install blower to increase pressure and save cost for you.
5. Electrical Air/Gas mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
6. Long designed overhaul term: 25000~30000 hours
7. Comply with CE standard, ISO9001:2008 quality management system, ISO14001:2004 and OHSAS 18001:2007.
Product Descriptions:
Gas genset data | |||
Genset model |
KDGH50-G |
||
Maximal power (kW/KVA) |
50/63 |
||
Prime power (kW/KVA) |
45/56.25 |
||
Continuous Power (KW/KVA) |
40/50 |
||
Output Voltage (V) |
220V/127V, 3 Phases 4 Lines |
||
Power factor cosfi |
0.8 lagging |
||
Frequency (Hz) |
60 |
||
Rated speed (RPM) |
1800 |
||
|
Open type Genset Overall Dimension (mm) |
2300x900x1400 |
||
Net weight without canopy(kg) |
1400 |
||
Gas Engine Data | |||
Model |
HG6B |
||
Brand |
CAMDA |
||
Type |
4 stroke, water-cooling, dry cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning |
||
Cylinders& Arrangement |
6L |
||
BoreXStroke(mm) |
102X120 |
||
Displacement(L) |
5.88 |
||
Compression ratio |
11.5:1 |
||
Aspiration |
Natural |
||
Cooling Method |
Radiator fan water cooling |
||
Governor type(speed regulating type) |
Electronic governing |
||
Starting method |
Electric, 24 V motor |
||
The lowest gas consumption(m3/kw.h) |
0.6 |
||
Idling speed(r/min) |
700 |
||
Oil recommended |
SAE 15W-40 CF4 or above |
||
Oil consumption |
≤1.0g/kW.h |
||
Alternator Data | |||
Brand |
Leroy Somer |
||
Model |
LSA42.3L9 |
||
Rated power |
55.2kW / 3 phase |
||
Rated Voltage (V): |
220~480 (±0.5%)(AC) |
||
Type |
3 phase/4 wire, brushless, automatic voltage regulator, drip proof, protected type. |
||
Frequency (Hz) |
60 |
||
Efficiency: |
91.2% |
||
Voltage regulation |
± 0.5 %(adjustable) |
||
Insulation class: |
Class H |
||
Protection class: |
IP 23 |
||
cooling method: |
wind-cooling, self-heat-rejection |
||
Voltage regulating mode |
Automatic voltage regulator |
||
Compliant with international standards: |
IEC 60034-1, NEMA MG1.22, ISO 8528/3, CSA, UL 1446, UL 1004B on request, marine regulations, etc. |
||

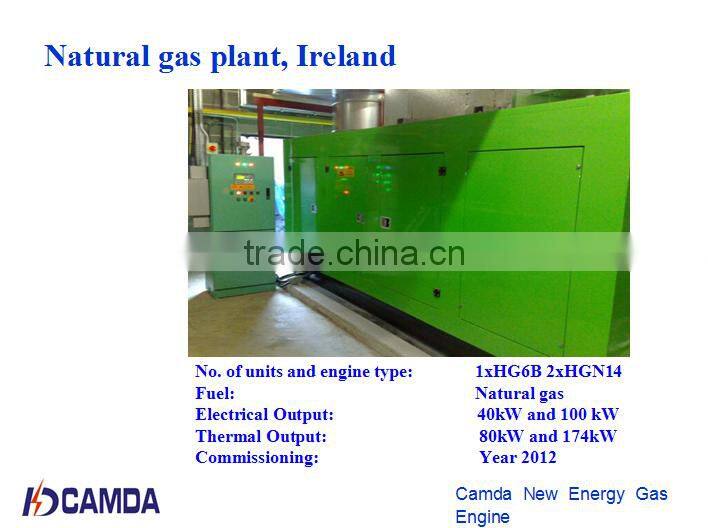

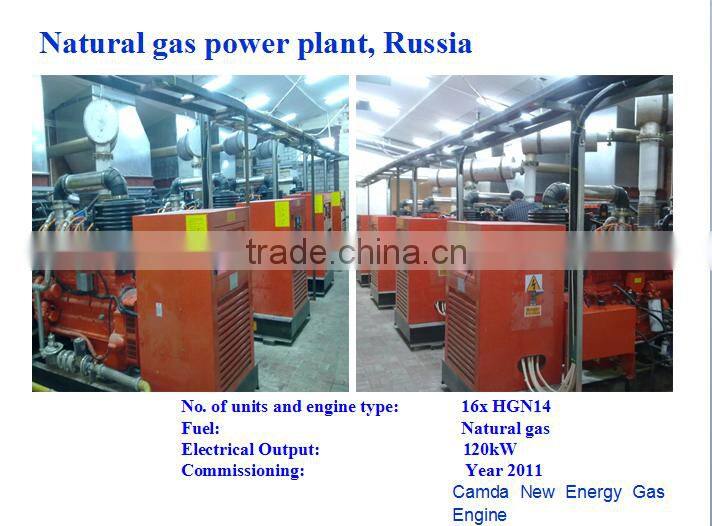

Power plant project around the world:
Product line:
Production process:
Company and certifications:
Genset lifetime and Warranty
AFTER SERVICE
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since leaving China port, our company provides free easily- damaged parts for the faults caused by the quality of products
or raw material, but exclude the damageable parts of engine due to customer's incorrect manmade operation. After expiration, our company provides spare parts with cost for maintenance forever.
