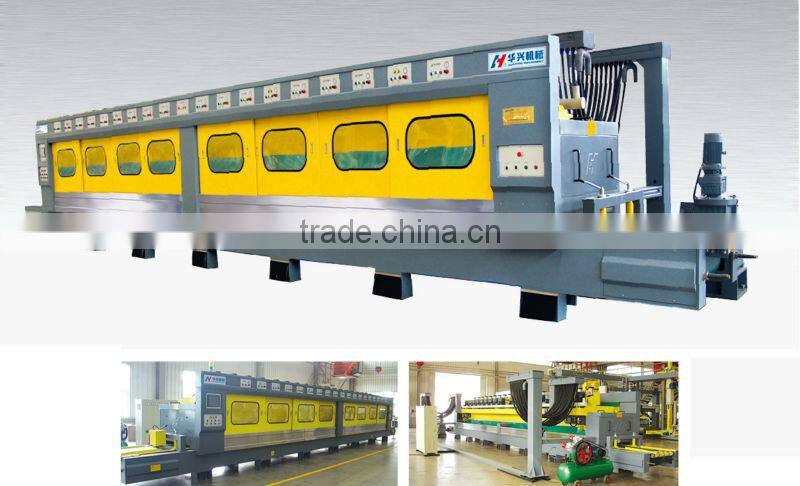

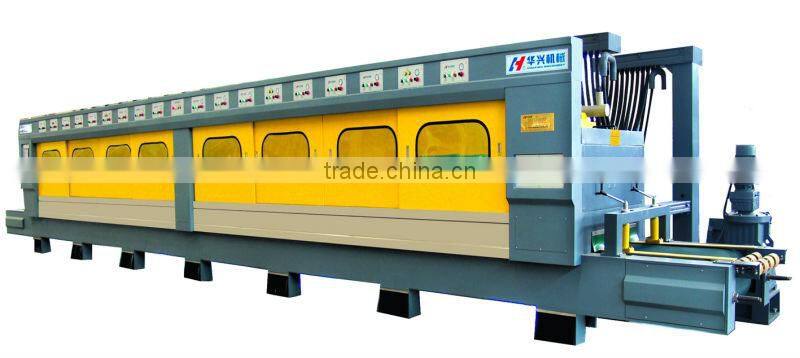

HGM06/18 Multi-head Grinding and Polishing Machine
This machine is mainly used for grinding and polishing granite plate. Updating technology is used in this machine;
.
.
The main technical parameter:
1.The grinder of the machine adopt universal shock attenuation device, have long life, low failure rate, high efficiency and low loss millstone. non-friable board advantage
Machine Type |
HGM06/18 (3+18) |
HGM09/18 (3+18) |
HGM12/18 (2+18) |
HGM14/18 (18) |
HGM16/18 (18) |
HGM20/18 (18) |
|
No. of Calibrators |
3 |
2 |
The wide slab calibrating headss Size is the same as polishing heads. Uasually unload the polishing Abrasives and load the calibrating Abrasives for the front 2 heads. |
||||
Working width |
650mm |
950mm |
1250mm |
||||
Calibrating plate diameter |
680mm |
980mm |
1280mm |
||||
Calibrating up-down movement power |
0.75kw |
||||||
Calibrating main motor |
22kw |
||||||
No. of polishing heads |
18 |
||||||
Diameter of polishing head |
450mm |
||||||
No. of abbrasivves |
6 |
||||||
Main motor power |
11kw |
||||||
Conveyor belt power |
3kw |
||||||
Bridge movement power |
4kw*2 |
||||||
Cleaning brusher motor |
1.5kw |
||||||
Working thickness |
20-50mm |
||||||
Water consumption |
25L/min/heads |
||||||
Vertical stroke of polishing heads |
150mm |
||||||
Cooling water pressure |
0.15-0.3Mpa |
||||||
Processing capacity |
0.6-1m/min |
0.3-0.5m/min |
|||||
Total Power |
278.75 |
278.75 |
256 |
210.5 |
210.5 |
210.5 |
|
