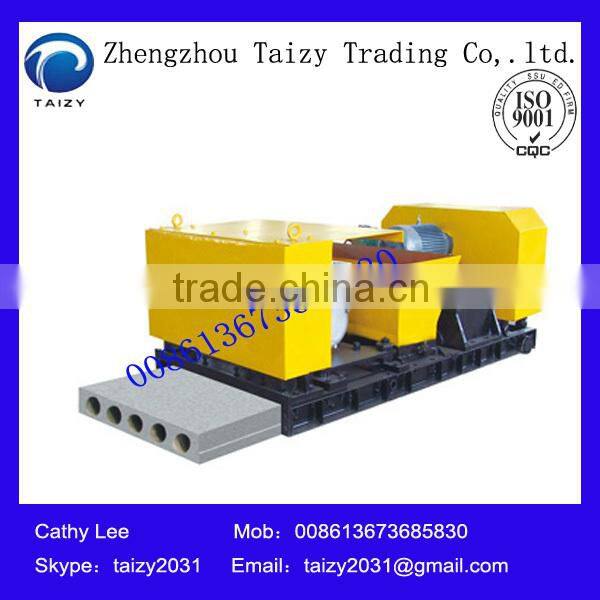

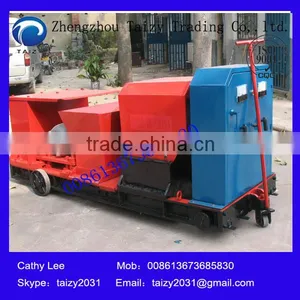

precast concrete hollow core wall panel machinery
Contact Details
Contact Person: Cathy
Skype: Taizy2031
Mobile: 0086-13673685830
Introduction of wall panel machine
a. Our wall panel machine uses hydraulic lifting system, easy to revolve. It can reduce labor intensity and improve production efficiency.
b. Machine body adopts anti-rust technology. Key parts like hopper are welded by stainless steel. Wearing parts like reamers, side form, vibration board, stock guide and other parts are all welded with alloy.
c. Both sides of the wall panels can put reinforcement wires, diameter can reach 6mm.
d. Work area: orbital or no orbital.
e. Panel materials: According to the specialty of the local materials, we provide matching method to insure customer produce standard panels(general materials: fly ash, slag, ceramsite, cinders, cinerite, pumice, vermiculite and so on)
f. Reduce the overall cost of the building, increase indoor usable space.
g. High production efficiency, annual output square meters above 150000m.
Specifications
Lightweight wall making machine take industrial ash and slag, fly ash, coal gangue, pumice, shale, haydite etc of one or more, add a certain proportion of ordinary cement, expanded perlite as raw material, you can add 1.6-4mm low carbon steel wire in the wall panel as support strengthened material.
Technical parameters
Model |
TZ-9*60 |
TZ12*60 |
TZ18*60 |
Width(mm) |
595±2 |
595±2 |
595±2 |
Thickness(mm) |
90±1 |
120±1 |
180±1 |
No. of holes and hole diameter(mm) |
7*58 |
5*85 |
3*132 |
Panel making speed(m/min) |
1.1-1.7 |
1.1-1.7 |
1.1-1.7 |

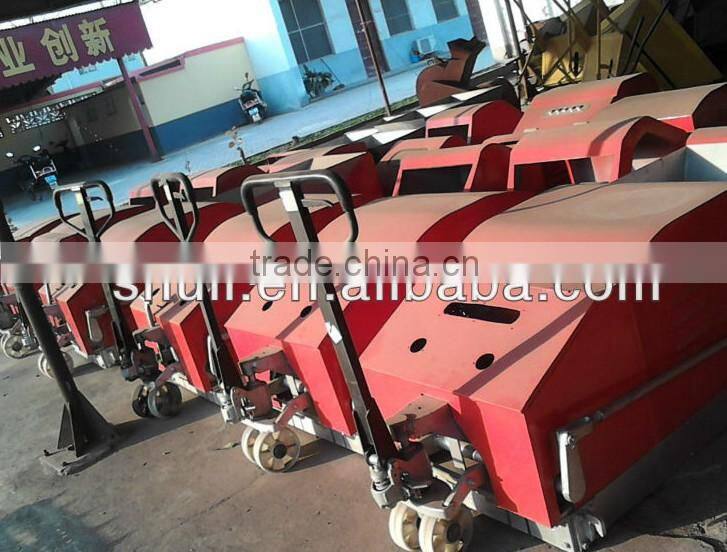

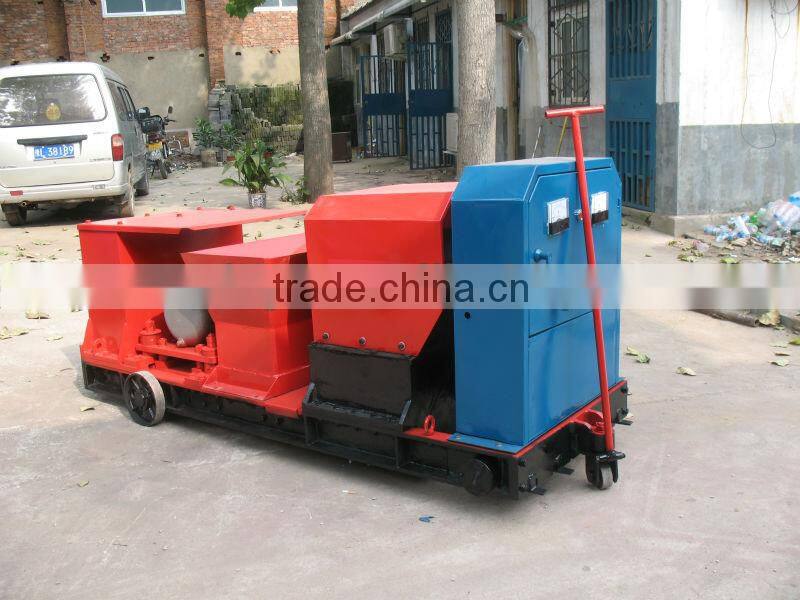

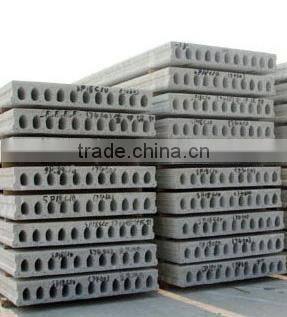

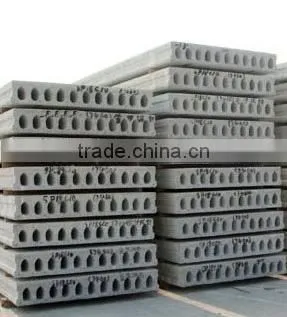

More pictures for your review
