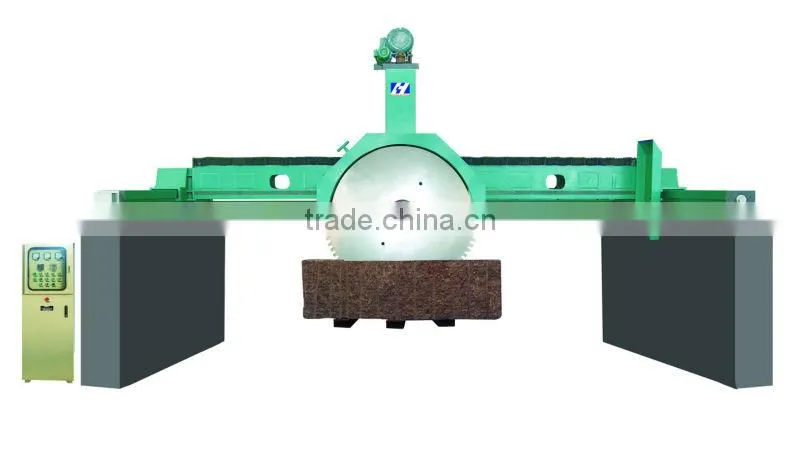

DQJ220End-beam Multi-disc Stone Sawing Machine

                DQJ220 End-beam Multi-disc Stone Sawing Machine

DQJ220 End-beam Multi-disc Stone Sawing Machine adopting the diamond cutlery and high-speed grinding  technique is mainly used in cutting the marblegranite and so on.

This machine has the following features:

Adopting great span bridge type structure, the stone material is cut on the ground, it will improve the stability when cutting and the maintaining cost is free.

The rising and falling of this machine realizes by the cycloid pin rack reducer driving the vertical guide screw. The maintaining is convenient, and the rate of trouble is low.

The machine operating convenientsafereliable and high automaticity.

Technique parameter

1. Maximum diameter of disc                                   Φ2200 mm
2. Vertical stroke of disc                                          1100 mm
3. Maximum cross stroke                                         3800mm
4. Maximum slice-moving stroke                               2200 mm
5. The quantity of setting disK                                   3 piece
6. Total capacity                                                      34.1 Kw
Main motor                                                              30 Kw
Vertical motor                                                          1.1 Kw
Walking motor                                                         1.5 Kw
Slicing motor                                                            1.5 Kw
7. Overall dimension                                      8000mm*4500mm*5500mm
8. Weight                                                                8000 kg
