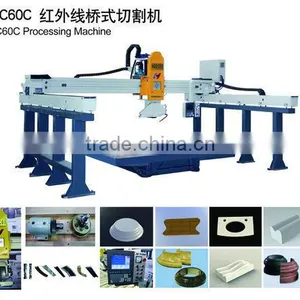

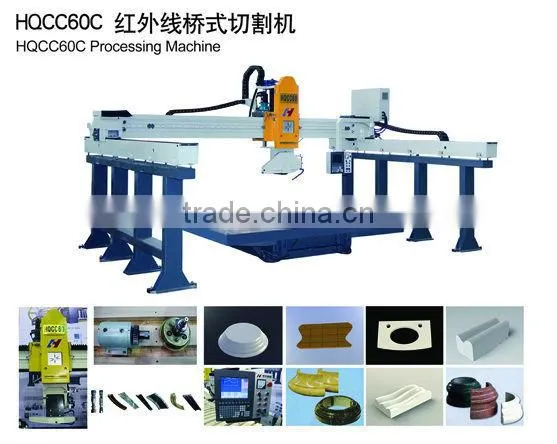

HQCC60 Marble &Granite Slab Stone Cutting Machinery
- Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Stone Cutting Machine | |
| Use | Granite | Place of Origin | Shandong, China | |
| Brand Name | HUAXING | Model Number | HQCC60 | |
| Certification | ce | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HQC40 Series Infrared Ray Bridge Cutters
Main technical parameter:
Type | HQC40A | HQC40L | HQC40E and HQC40B |
max. Cross stroke of blade | 3500mm | ||
max. longitudinal stroke of blade | 3300mm | ||
max.Elevation stroke of blade | 200mm | ||
Max.cross movement speed of blade | 12500mm/min | ||
Max.longitudinal movement speed of blade | 8500mm/min | ||
Max. tipping angle of working table | 85º | ||
Max. angle of swing of working table | 90º | 360º | |
Angle of adjusting of working table | 0º 90º | 0º 30º 45º 60º 90º 120º 135º 150º 240º | |
Dimension of working table | 3240*2000mm | ||
The type of side-beam guiding rail | Straight glide guiding rail | Double V roller guiding rail | Straight glide guiding rail |
Total capacity | 19.1(15.1)kw (according to the requirements) | 15.1KW | |
Main motor | 15(11)kw (according to the requirements) | 11KW | |
walking motor of carriage | 1.5 kw | ||
Woving motor of cross beam | 1.1 kw | ||
Oil pump motor | 1.5 kw | ||
Rated working pressure | 0.7mpa | ||
Overall dimension | 6100*5200*3000 | ||
