High quality microwave dryer sterilizer machine for industruial chopsticks
- 300 Set / Sets per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | ADASEN | Model Number: | JN-60 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

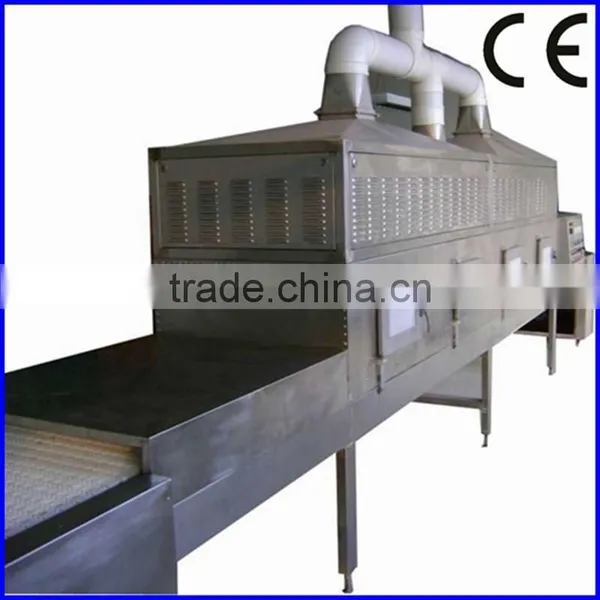

High quality microwave dryer sterilizer machine for industruial chopsticks

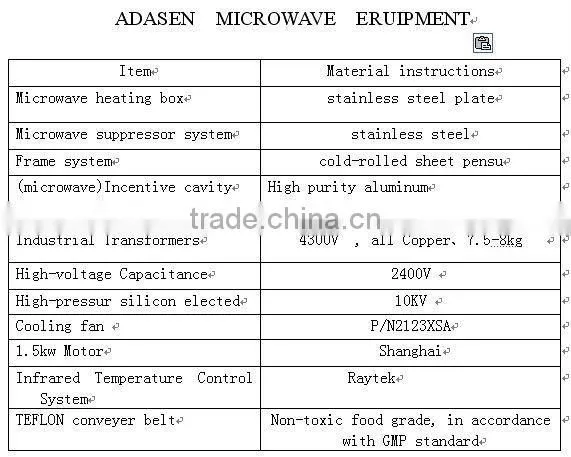

I.Structure
The whole machine consists of stainless steel, and it adopts the combined and removable assembly
module in several parts: A.The main body frame; B.Conveying part; C.Microwave generator part;
D.Microwave heating cabinet parts; E.Microwave preventing leakage parts etc.
II. feature:
Microwave wood&paper drying and sterilization equipment
1.drying fast
2.lower the cost
3.no environment
4.easy to control
III. Application
mainly used for bamboo, wood(pencil board,wood floor, hanger etc), old mahogany, eaony,
cherry wood, basswood,birch, teak, oak, boxwood, pear wood, beech, mulberry, serpentine wood,
birch, maple spruce, pine, hemlock, cercls, jacaranda, sophora japonica, maple wood, paplar,
maple, holly, ginkgo biloba wood, camphor wood, fir drying insecticide.
IV.Reference technical parameters
Power: | 3 phases and 5 wires. 380V±10% 50Hz±1% |
Microwave output frequency: | 2450±50MHZ |
Microwave power input: | ≤84KVA |
Microwave power output: | ≥60KW |
Ambient temperature: | 5-40°C |
Relative humidity: | ≤80% |
Position of input: | At the top of the microwave cabinet |
Microwave system cooling way: | Magnetron (Air cooling) |
Conveying speed: | 0-10m/min(adjustable) |
Temperature control range: | 0-200°C (adjustable) |
Dehydrated efficiency: | 60~84(kg/h) |
Belt width: | 700mm(we can change according your requirement) |
Overall dimensions(L*W*H): | About12700*1440*1750 |
Life of magnetron: | >8000h |
Microwave leak: Accord with the national standard GB10436—89 of China Equipment safety standards:(My company's standard≤1MW/CM2) Equipment safety:accord with GB-5226Electrical safety standardaccord with a country GB16798-1997 Food.
|

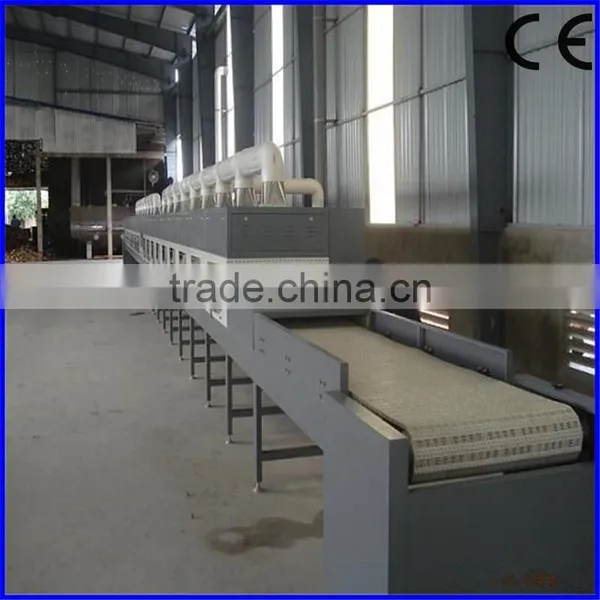

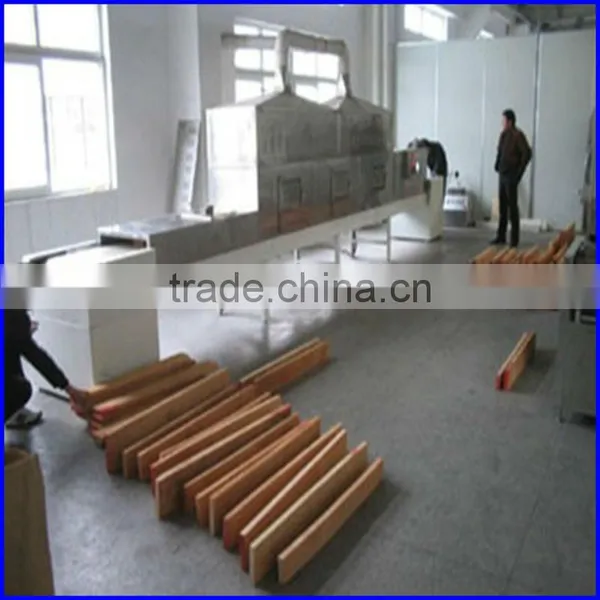

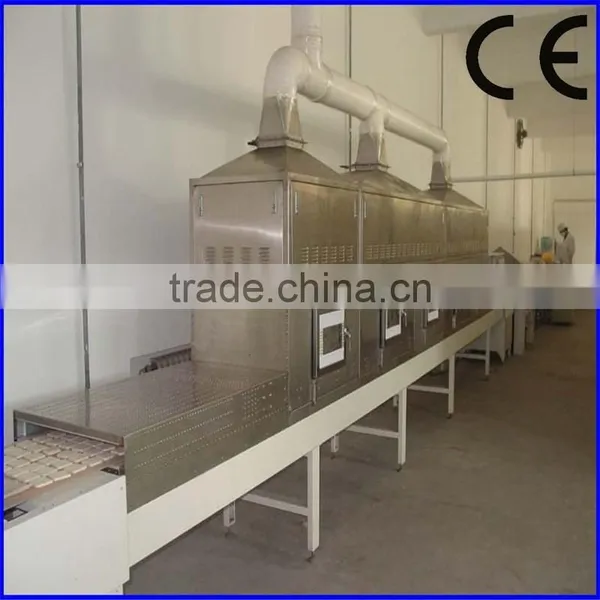

V. Reference picture
backing and shiping:

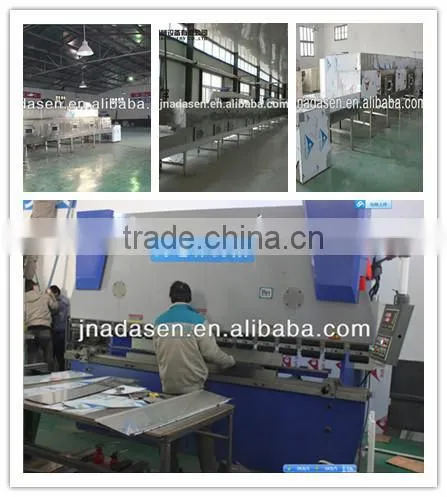

company information:
Adasen company is a hi-tech enterprise that is engaged in professional developing,producing and selling on microwave energy applying equipments,which is one of the biggest scale microwave energy equipments manufacture in china now.
Adopting world-advanced techniques and according to GMP and FAD standard,we manufacture the local new generation "ADASEN" brand 915MHZ and 2450MHZ two big series and more than 40 specifications microwave energy applying equipments,which provide the advanced technique and reliable quality and hi-rech equipment for many domestic and international industry.
ADASEN be famous in china with its superior quality ,main export to Europe ,America,Middle East,Southeast Asian etc countries and regions.
All equipments can be specially designed and manufactured in accordance with the product's features of the clients,so the technical parameters are subject to our technical scheme!
