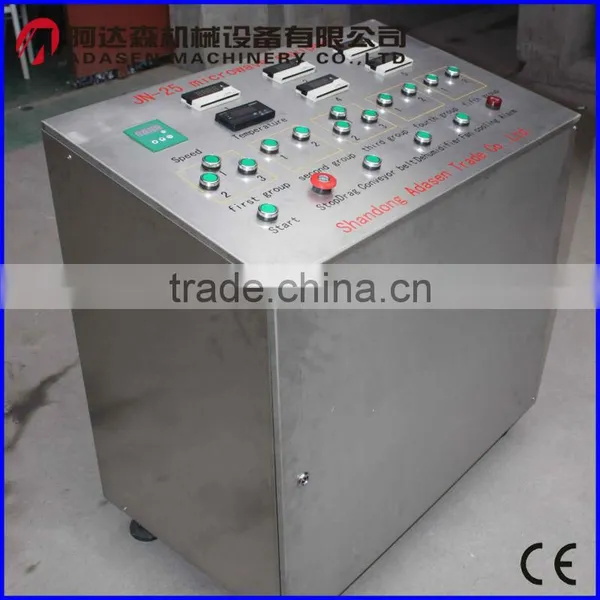

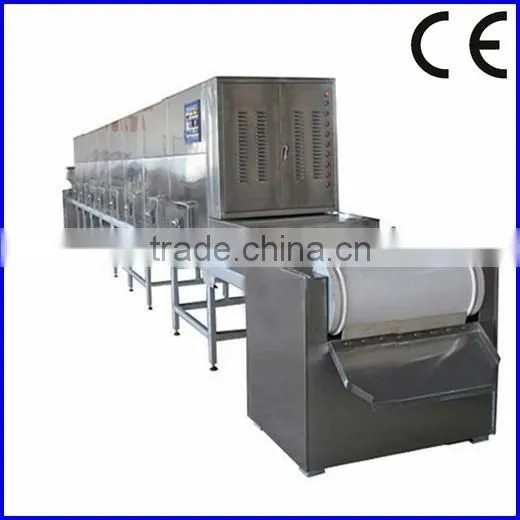

Wooden cork - wine stopper sterilization machine
FEATURES:
Because microwave has rapid heating,uniform heating,save energy/efficient,safety/harmless,work continuously,improve working conditions greatly etc features,it’s widely used in the paper products processing of drying stereotypes bend resin agglutination etc .Apply to paper,paper tube, honeycomb cardboard,environmental protection paper bowl,egg tray,cardboard box, Kraft bag,paper yarn compound bag etc fast drying.Another application in paper products and wood pulp processing is glue adhesion and curing.This not only can use cheap adhesives made into high quality carton box,but also can’t worry about rai and cloudy trouble,and make high quality resin compound board.
Usage:drying paper,paper tube, honeycomb cardboard,environmental protection paper bowl,egg tray,cardboard box, Kraft bag,paper yarn compound bag etc .
principle
Microwave drying is different from the traditional drying methods, the direction of heat transfer and moisture diffusion in the same direction. Compared with the traditional way of drying, the drying rate is large, energy saving, high efficiency, uniform dry, clean production, the advantages of easy to realize automatic control and improve product quality, and in the dry fields more and more be taken seriously.
Technical parameters
| Model | rated input power (KVA) | microwave output power (KW) | expected dehydration(kg/h) | expected sterilization (kg/h) | reference size L*W*H(mm) |
| JN-8 | 11.2 | 8 | 8 | 40 | 6161*840*1750 |
| JN-12 | 16.8 | 12 | 12 | 100 | 7200*840*1750 |
| JN-15 | 21 | 15 | 15 | 150 | 8300*840*1750 |
| JN-20 | 28 | 20 | 20 | 250 | 9550*840*1750 |
| JN-30 | 42 | 30 | 30 | 360 | 10680*1410*1470 |
| JN-40 | 56 | 40 | 40 | 520 | 10680*1440*1750 |
| JN-50 | 70 | 50 | 50 | 700 | 11810*1440*1750 |
| JN-60 | 84 | 60 | 60 | 840 | 12940*1440*1750 |
| JN-70 | 98 | 70 | 70 | 980 | 14070*1440*1750 |
| JN-80 | 112 | 80 | 80 | 1120 | 15200*1665*1750 |
| JN-100 | 140 | 100 | 100 | 1400 | 15200*1665*1750 |
| JN-120 | 168 | 120 | 120 | 1680 | 17460*1665*1750 |
| JN-150 | 210 | 150 | 150 | 2100 | 20850*1750*1750 |
NOTE:We can design according to your requirements!
