High Quality Microwave Wood&paper Drying and Sterilization Simultaneously Equipment

Name: High Quality Microwave Wood&paper Drying and Sterilization Simultaneously Equipment
Brand: ADASEN
SKU: 137683557

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

ADASEN

Model Number:

JN-60

Shandong Adasen Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name ADASEN

Model Number JN-60

Condition New

After-sales Service Provided Engineers available to service machinery overseas

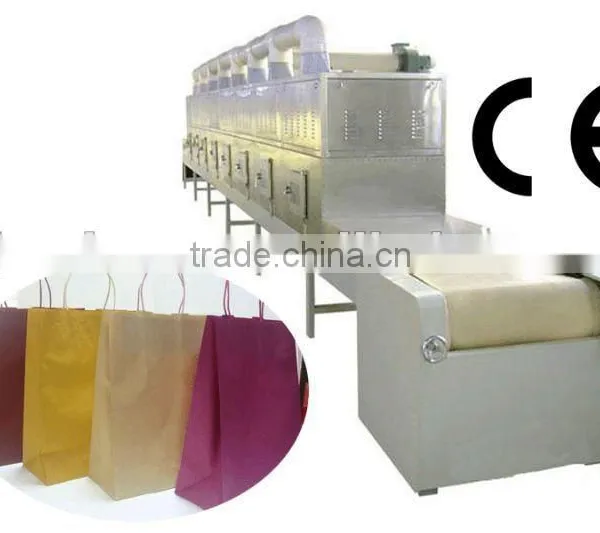

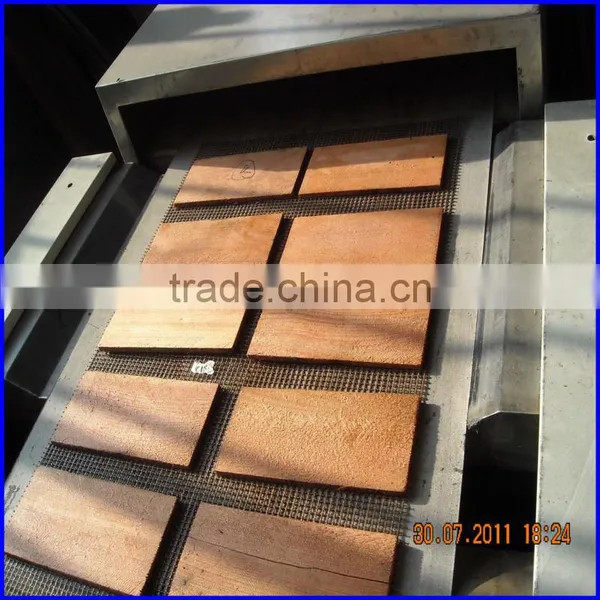

High quality Microwave wood&paper drying and sterilization simultaneously equipment

I.Structure

The whole machine consists of stainless steel, and it adopts the combined and removable assembly

module in several parts: A.The main body frame; B.Conveying part; C.Microwave generator part;

D.Microwave heating cabinet parts; E.Microwave preventing leakage parts etc.

II. feature:

Microwave wood&paper drying and sterilization equipment

1.drying fast

2.lower the cost

3.no environment

4.easy to control

III. Application

mainly used for bamboo, wood(pencil board,wood floor, hanger etc), old mahogany, eaony,

cherry wood, basswood,birch, teak, oak, boxwood, pear wood, beech, mulberry, serpentine wood,

birch, maple spruce, pine, hemlock, cercls, jacaranda, sophora japonica, maple wood, paplar,

maple, holly, ginkgo biloba wood, camphor wood, fir drying insecticide.

IV.Reference technical parameters

Power:	3 phases and 5 wires. 380V±10% 50Hz±1%
Microwave output frequency:	2450±50MHZ
Microwave power input:	≤84KVA
Microwave power output:	≥60KW
Ambient temperature:	5-40°C
Relative humidity:	≤80%
Position of input:	At the top of the microwave cabinet
Microwave system cooling way:	Magnetron (Air cooling)
Conveying speed:	0-10m/min(adjustable)
Temperature control range:	0-200°C (adjustable)
Dehydrated efficiency:	60~84(kg/h)
Belt width:	700mm(we can change according your requirement)
Overall dimensions(LWH):	About1270014401750
Life of magnetron:	>8000h
Microwave leak: Accord with the national standard GB10436—89 of China Equipment safety standards:(My company's standard≤1MW/CM2) Equipment safety:accord with GB-5226Electrical safety standardaccord with a country GB16798-1997 Food.
