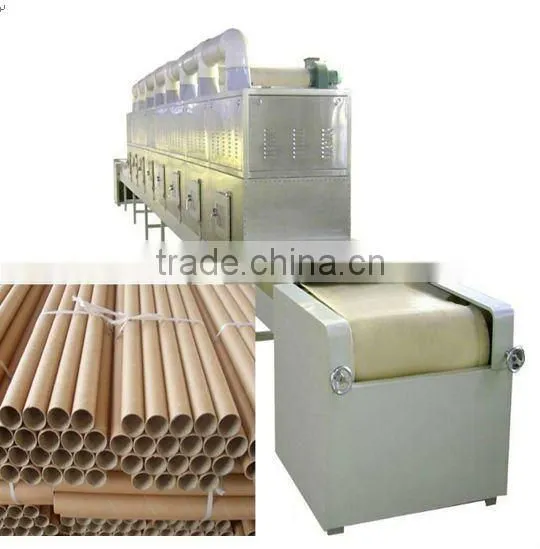

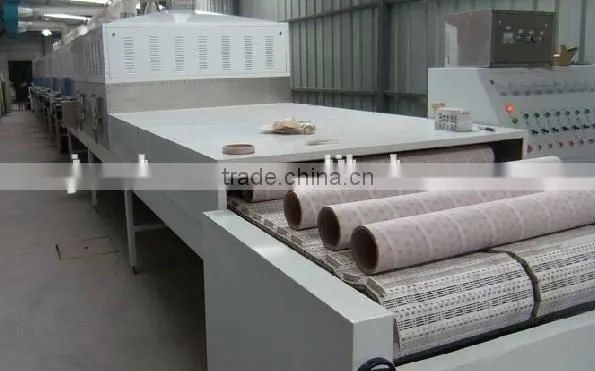

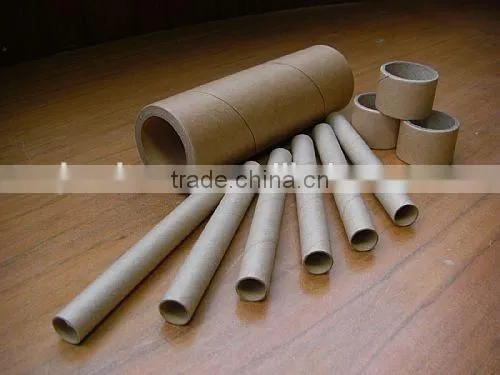

Paper tube industrial microwave dryer machine
I . General Description
1.Dry temperature:adjustable
2.Type of Feeding:continuous
3.Type of Control:control panel
II. The Features of Design
1.Transmission System:
a. Speed of Conveying belt is adjustable.
In the transmission system, it applies frequency-converting control of speed, worm gear reducer.
b. The conveyor belt is Teflon Belt,special for microwave.
c. The deviation of belt is adjusted with Hand-movement.
2. The structure of the Tunnel
a.The body of the microwave tunnel is made of Stainless Steel. In side there is one set of humidity extraction system to extract the humidity after heating.
b. To be safe, there is Automatic Power-off device while open the door of the machine.
c. The protecting case of Magnetic-pipe and transformer is made of stainless steel. On top there is one set of Heat extraction system to extract the heat energy generated by working of machine.
d.One set of infrared thermometric is installed at the outlet of the tunnel to measure the temperature.
3.The controlling system
a. On the outside panel there are frequency converting speed controller, emergency stop button, Start, Stop buttons,
b. All the controlling components will be installed into one controlling box, which is at the entrance of the machine.
c.Ordinary button control system,.
d.The microwave power can be adjusted by choosing in the display text.
e. Every microwave source is an independent unit.If one is broken, the machine will not be prevented from running.
f. Every magnetron has an overheating protection device.
4.Main technical parameters:
Power Supply: |
380V±10% 50HZ±1% three-phase five-wire |
Ambient temperature: |
-5-40°C |
Microwave output frequency: |
2450±50MHz |
Relative humidity: |
80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas.
|
Transmission speed: |
0-10 m/min(adjustable)
|
Microwave leak |
accord with a country GB10436-89 standards |
Equipment safety |
accord with GB-5226Electrical safety standard |
Pls feel free to call me for more details!
If you have any questions, you can feel free to contact me
