Screen Protector Die Cutting Machine China Famous Brand Hand Safe Guard

  screen protector die cutting machine

Series One:

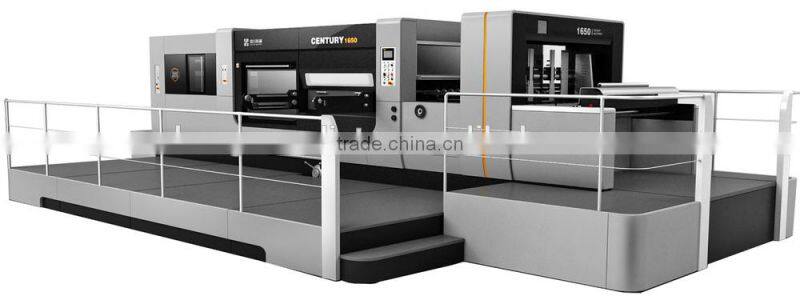

Lead Edge Automatic Die Cutting Machine With Stripping Section

Specifications:

Model	1300Q	1500Q	1650Q	1700Q
Max.paper size	1330*980mm	1500*1100mm	1650*1200mm	1700*1200mm
Min.paper size	550*480mm	600*500mm	650*500mm	700*500mm
Max.cutting size	1300*960mm	1480*1080mm	1630*1180mm	1680*1180mm
Max.cutting pressure	250*10000N	320*10000N	400*10000N	400*10000N
Stock range	1mm<= corrugated board <=8.5mm
Cutting precision	±0.5mm	±0.5mm	±0.5mm	±0.5mm
chanical speed	4800 s/h	4800 s/h	4500 s/h	4200 s/h
Cutting rule height	23.8mm	23.8mm	23.8mm	23.8mm
Pressure adjusting range	±1.5mm	±1.5mm	±1.5mm	±1.5mm
Min.front margin	10mm	10mm	10mm	10mm
inner chase size	1330*980mm	1500*1100mm	1650*1200mm	1700*1200mm
Total power	32kw (Double-servo without air compressor)	35.5kw (Double-servo without air compressor)	39kw (Double-servo without air compressor)	39kw (Double-servo without air compressor)
Machine Dimension	9520*4550*2440mm (include the work platform)	10075*5170*2460mm (include the work platform)	10575*5372*2550mm (include the work platform)	10575*5522*2550mm (include the work platform)
Machine Dimension	9020*2470*2400mm (exclude the work platform die change frame)	9505*2820*2460mm (exclude the work platform die change frame)	10005*2920*2550mm (exclude the work platform die change frame)	10005*2970*2550mm (exclude the work platform die change frame)
Total weight	~28t	~31t	~38t	~40t

Advantage:

Feeding Section: High speed and precision lead edge feeder, scratches can be advoided during feeding. Frequency conversion control wind volume adjustment, can adopt to different requirement of the different paper. Wind suction area can adjust according to the paper size with high-power fan.

Feed table: Adopts left and right push side lay to fulfill different printing registration requirement. adjustable rubber wheel and brush wheel to ensure precise positioning to enter into front and side lay.

Die cutting Section: Adopts pneumatic lock-up system on die cutting chase to increase efficiency. Computerized control display system and 3D touch screen operation can immediately trace and visualize machine status and possible machine stop causes. Equipped with 3 cam index box device and overloading protection clutch for perfect registration.

Stripping Section: Double-action movement structure with upper and lower stripping frame facilitates die changes, motorized upper frame suspending hoist. Male/female die are available for different stripping jobs. Equipped with full  stripping device for higher production efficiency. Adopts centerline registration system, reduce die change time, accurate positioning can increase production feeiciency.

Delivery section: Adopt non-stop delivery system to insure stable and fast paper delivery. Safety photoelectric device to insure tidy paper delivery.

Series Two:

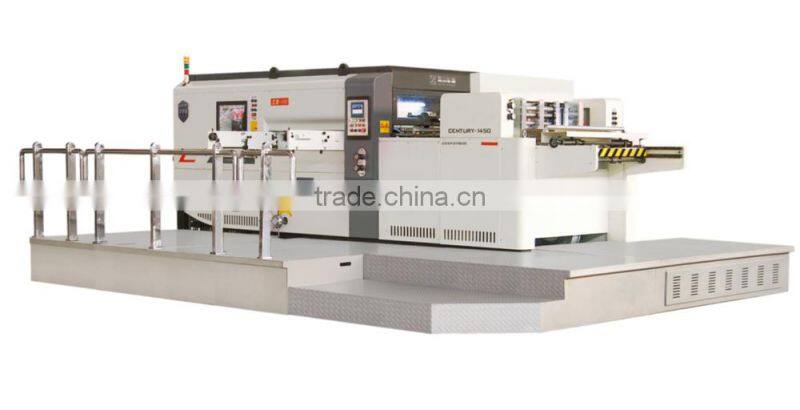

Lead Edge Automatic Die Dutting Machine with Semi-stripping Section

Specifications:

Model	1160Q	1300Q	1450Q	1620Q
Max.paper size	1180*900mm	1330*980mm	1480*1080mm	1650*1210mm
Min.paper size	500*480mm	550*480mm	600*500mm	650*500mm
Max.cutting size	1160*880mm	1300*960mm	1450*1050mm	1620*1190mm
Max.cutting pressure	200*10000N	250*10000N	300*10000N	300*10000N
Stock range	corrugated board 1-7MM	1mm<= corrugated board <=8.5mm
Cutting precision	±0.5mm	±0.5mm	±0.5mm	±0.5mm
chanical speed	4200 s/h	4200 s/h	4000 s/h	4000 s/h
Cutting rule height	23.8mm	23.8mm	23.8mm	23.8mm
Pressure adjusting range	±1mm	±1mm	±1mm	±1mm
Min.front margin	8mm	8mm	8mm	8mm
inner chase size	1190*910mm	1330*990mm	1480*1080mm	1646*1220mm
Total power	22.7kw (exclude air compressor)	26.2kw (exclude air compressor)	33.7kw (exclude air compressor)	37.2kw (exclude air compressor)
Machine Dimension	7275*4280*2195mm (include the work platform)	7645*4645*2220mm (include the work platform)	8195*4856*2235mm (include the work platform)	8896*5241*2295mm (include the work platform)
Machine Dimension	7125*2385*2195mm (exclude the work platform die change frame)	7430*2600*2220mm (exclude the work platform die change frame)	7750*2670*2235mm (exclude the work platform die change frame)	8170*2840*2295mm (exclude the work platform die change frame)
Total weight	~17t	~20t	~22t	~27t

Series Three:

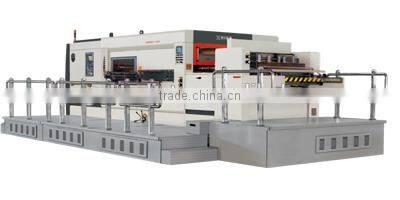

Lead  Edge Feeder Automatic Die Cutting Machine With Stripping Section(High-Speed Machine)
