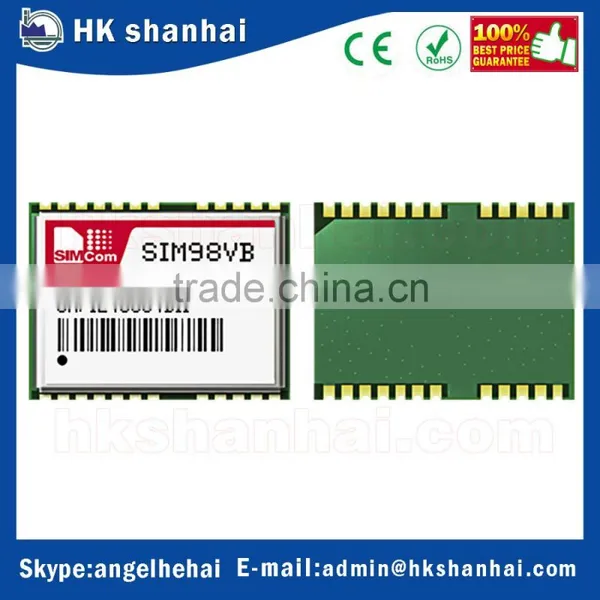

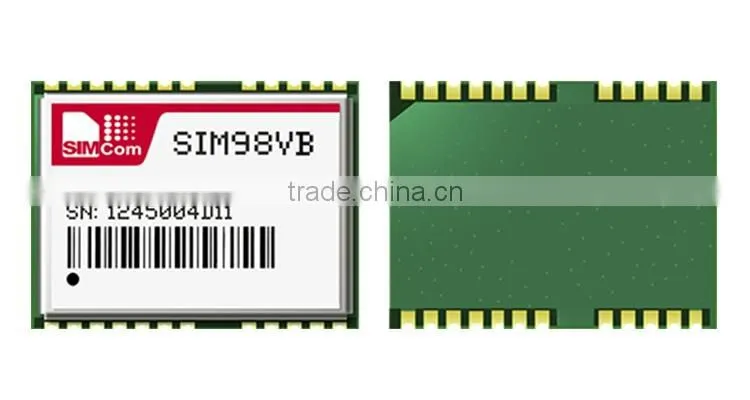

SIM98VB is a support for the 2 generation Beidou module, you can support both the 2 generation and L1 GPS band receiver and analytical positioning. The module uses the HD8020 platform, which has the characteristics of low power consumption, high sensitivity, high positioning accuracy and short first time. SIM98VB module size 16*12.2*2.4mm, using SMT LCC package, the production process requirements are low, can be easily integrated into the customer's products.
Mechanical data
• Dimensions: 16*12.2*2.4mm
• Weight: 1gFeatures
• Support GPS/BD2
• Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
• With LAN
• Support antenna detection
Interfaces
• Serial interfaces
- UART
- Digital I/O
- EINT0 input
- Pulse-per-second (PPS)
• Protocols
- NMEA
Electrical data
• Power supply: 2.8V~4.5V
• Backup power: 1.6V~3.6V
• Power consumption2,6
- Acquisition :58.5mA
- Tracking :32.5mA
- AlwaysLocateTM:TBD
- Backup :14uA
• Antenna type
- Active and passive
• Antenna power
- External or internal VCC_RF
Performance data
• Receiver type
- 48tracking/24 acquisition-channel GNSS receive• Max. update rate: 5Hz
• Sensitivity1
- Tracking:-162 dBm
- Reacquisition: -157dBm
- Cold starts: -146 dBm
• Operation temperature: -40℃~+85 ℃
• Time-To-First-Fix2
- Cold starts: 32 s
- Warm start:3.3 s
- Hot starts: 1.7s
• Accuracy
- Automatic Position3:<2.5m CEP
- peed4: 0.1m/s
Packing
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx , The shipping cost can prepaid in my side or Use your courier account to pay .
