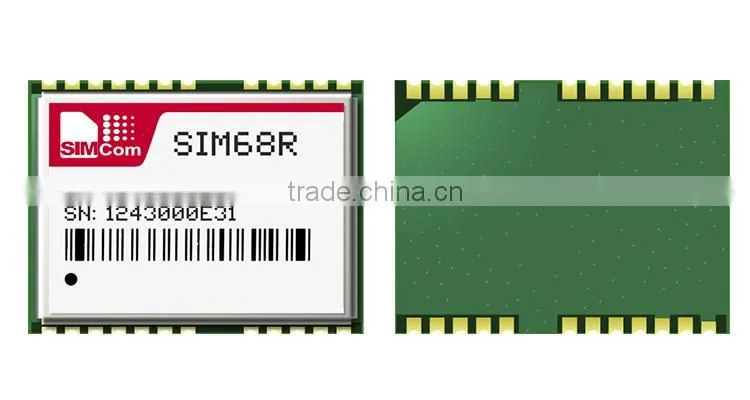

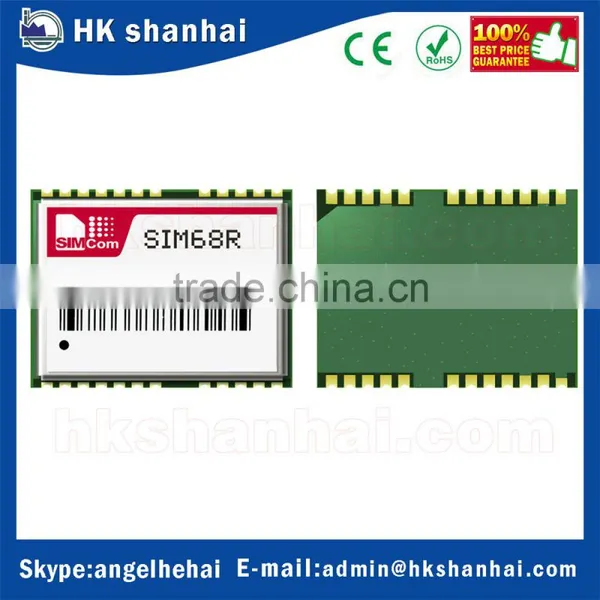

SIMCom presents a high performance and reliable GNSS module - SIM68R. This is a standalone L1 frequency GNSS module in a SMT type with MTK's high sensitivity navigation engine, which allows you to achieve the industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.
Mechanical data
•Dimensions: 22.4*17*2.7mm
• Weight: 2gFeatures
• Support GPS/GLONASS/Galileo/QZSS
• Support EASYTM self-generated orbit prediction
• Support EPOTM orbit prediction
• Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
• Support Jamming removing function
• Support DGPS (RTCM)
Interfaces
• Serial interfaces
- UART
- I2C
• Digital I/O
- EINT0 input
- AADET_IN
- Pulse-per-second(PPS)
• Protocols
- NMEA
- PMTK
Electrical data
• Power supply (VCC): +2.8V ~4.3V
• Backup power: +2.3V ~4.6V
• Power consumption2,6
- Acquisition: 34mA
- Tracking: 30mA
- AlwaysLocateTM: <440uA
- Backup: 14μA
• Antenna type: Active and Passive
• Antenna power: External or internal VCC_RF
Support evaluation products
• SIM68 EVB KIT with USB V2.0 full speed interface
Certifications
• CE
Performance data
• Receiver type: 33 tracking / 99 acquisition- channel GNSS receiver
• Max.update rate: 10Hz
• Sensitivity1
- Tracking: -167dBm
- Reacquisition: -160dBm
- Cold starts: -148dBm
• Operation temperature: -40℃~+85 ℃
• Time-To-First-Fix1,2
- Cold starts: 28s
- Warm starts: 26s
- Hot starts: <1s
- EPO Assist: 13s(CTTFF)
• Accuracy
- Automatic Position3: 2.5m CEP
- Speed4: 0.1m/s
Packing
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx , The shipping cost can prepaid in my side or Use your courier account to pay .
