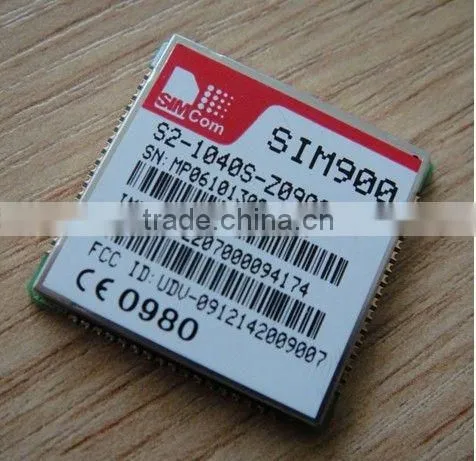

Hot Selling Gsm Gprs Module Sim900 Quad Band Gsm Module Home Alarm System in Stock Fast Delivery
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Simcom
Model Number:
Sim900
Payment & Shipping
Payment Methods:
Port of Shipment:
hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EVB-867 Evaluation Kit GSM Module GPRS ModemNegotiableMOQ: 2 Pieces -
Competive Price Multi Sim Gsm Modem Sim900 Gsm Module With BoardUS$ 7.5 - 8MOQ: 1 Piece
-
Programmable Sim900 Rohs Gsm ModuleUS$ 14 - 17MOQ: 5 Pieces
-
Wavecom GSM GPRS Module Q2406B Gsm Module Cheap PriceNegotiableMOQ: 1 Piece
-
Hotselling Tri-band in Stock Fast Delivery GSM Module Mc55i Module Gsm Module SmsNegotiableMOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
Simcom
Model Number
Sim900
Specifications
Gsm gprs module sim900 gsm module home alarm system1)SIM900 GSM GPRS module
2)Voice, SMS, Data, and Fax application
3)especi
gsm module home alarm system
Sim900,SIM900 Simcom wireless module,Simcom modules,modules
General features
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
- Class 4 (2 W @850/ 900 MHz)
- Class 1 (1 W @ 1800/1900MHz)
* Dimensions: 24mm x 24mm x 3mm
* Weight: 3.4g
* Control via AT commands (GSM 07.07 ,07.05 and
SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range : 3.1 ... 4.8V
* Low power consumption: 1.5mA(sleep mode)
* Operation temperature: -40°C to +85 °C
Specifications for Fax
* Group 3, class 1
* Group 3, class 1
Specifications for Data
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
Specifications for SMS via GSM/GPRS
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode
Software features
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP( available at late July ,2010)
* FOTA ( available at July ,2010)
* MMS (available at July ,2010)
* Embedded AT (available at Q3,2010)
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP( available at late July ,2010)
* FOTA ( available at July ,2010)
* MMS (available at July ,2010)
* Embedded AT (available at Q3,2010)
Specifications for Voice
* Tricodec
- Half rate (HR)
- Full rate (FR)
- Enhanced Full rate (EFR)
* Hands-free operation
(Echo suppression)
* AMR
- Half rate (HR)
- Full rate (FR)
* Tricodec
- Half rate (HR)
- Full rate (FR)
- Enhanced Full rate (EFR)
* Hands-free operation
(Echo suppression)
* AMR
- Half rate (HR)
- Full rate (FR)
Interfaces
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Antenna pad
* I2C
* GPIO
* PWM
* ADC
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Antenna pad
* I2C
* GPIO
* PWM
* ADC
Compatibility
* AT cellular command interface
* AT cellular command interface
Certificates:
* CE
* FCC
* ROHS
* PTCRB
* GCF
* IC
* ICASA
* TA
* REACH
* CE
* FCC
* ROHS
* PTCRB
* GCF
* IC
* ICASA
* TA
* REACH
We have other simcom module in stock as follows,
