2016 Original New Lowest Price Low Power Consumption Simcom Gps Module Sim28ml Electronic Component of Gps Gsm Module

2016 Original New Lowest Price Low Power Consumption Simcom Gps Module Sim28ml Electronic Component of Gps Gsm Module thumbnail-1
2016 Original New Lowest Price Low Power Consumption Simcom Gps Module Sim28ml Electronic Component of Gps Gsm Module photo-1
US$ 5.9 - 6.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SIMCOM
Model Number:
SIM28ML
Contact Supplier Request Quote Chat Now
Shenzhen Shanhai Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SIMCOM
Model Number SIM28ML
Product Description

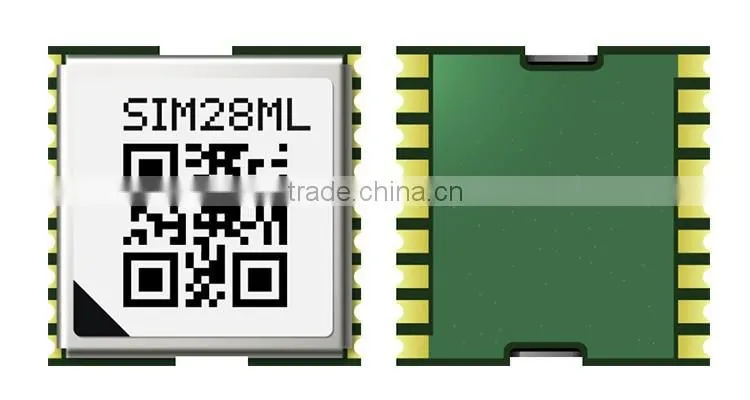

SIMCom presents a small, high performance and reliable assisted GPS module-SIM28ML. This is a standalone L1 frequency GPS module in a SMT type and it is designed with MTK high sensitivity navigation engine, which allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption.

Mechanical data

• Dimensions: 10.1*9.7*2.5 mm
• Weight: 0.5g

Features

• Support EPOTM orbit prediction
• Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
• Support Jamming removing function
• Low-noise amplifier has been integrated

Interfaces

• Serial interfaces
- UART
• Digital I/O
- TIMEMARK (PPS)
- GPIO
• Protocols
- NMEA
- PMTK

Electrical data

• Power supply: +2.8V ~4.3V
• Backup power: +2.0V ~4.3V
• Power consumption
- Acquisition: 17mA
- Tracking: 16mA
- Backup: 8μA
• Antenna type: Active and Passive
• Antenna power: External

Support evaluation products

• SIM28EVB KIT with USB V2.0 full speed interface

Certifications

• CE

Performance data

• Receiver type
22 tracking / 66 acquisition- channel GPS receiver
GPS L1, C/A Code
• Max.update rate: 5Hz
• Sensitivity1
- Tracking: -165 dBm
- Reacquisition: -160 dBm
- Cold starts: -148 dBm
• Time-To-First-Fix2
- Cold starts: 32s (typical)

- Warm starts: 3s
- Hot starts: <1s
- EPO Assist: 13s (CTTFF)
• Accuracy
- Automatic Position3: 2.5m CEP
- Speed4: 0.1m/s
• Operation temperature: -40℃~+85 ℃

relation product
Product comparison

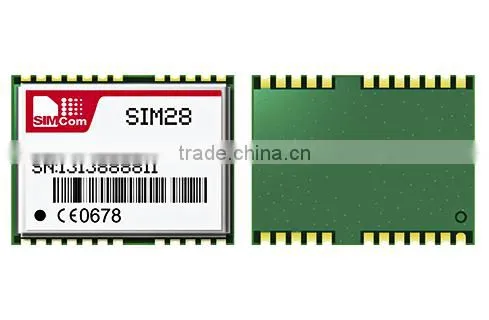

SIM28

SIM28M


SIM28ML
SIM28
SIM28M
SIM28ML
Dimensions:
16*12.2*2.4mm
10.1*9.7*2.5mm
10.1*9.7*2.5mm
Weight:
1g
0.5g
0.5g
Features:
Support EASYTM self-generated orbit prediction
Support EASYTM self-generated orbit prediction
_
_
Support AGPS
_
Support products:
SIM28-TE
_
_
Power consumption:
 Acquisition: 24mA
Acquisition: 17mA
Acquisition: 17mA
Tracking: 19mA
Tracking: 16mA
Tracking: 16mA
Standby mode: <200μA
 Backup: 8μA
 Backup: 8μA
Antenna power:
External or internal
External or internal
External
 VCC_RF
_
_
Max.update rate:
10Hz
10Hz
5Hz
Time-To-First-Fix2
Cold starts with EASY: 13s
_
_
Warm starts with EASY: 1~2s
_
_
_
Warm starts: 30s
Warm starts: 3s
Cold starts with EPO Assist: 12.5s
EPO Assist: 13s (CTTFF)
EPO Assist: 13s (CTTFF)
Our Company
Shipping

Packing

1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx , The shipping cost can prepaid in my side or Use your courier account to pay .
