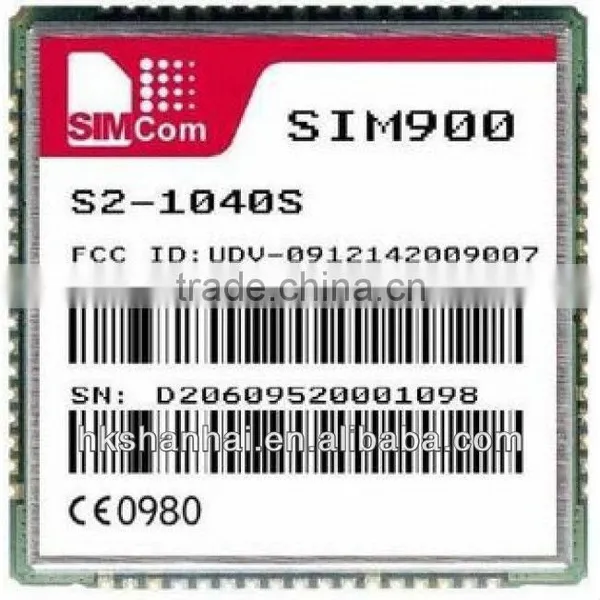

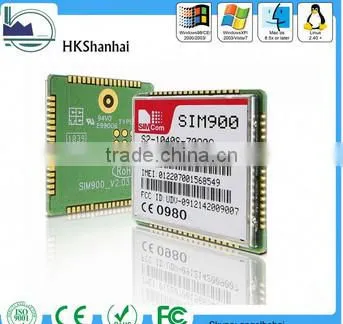

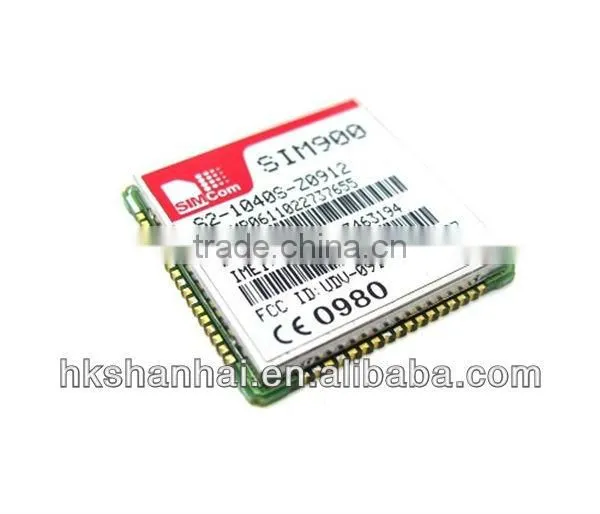

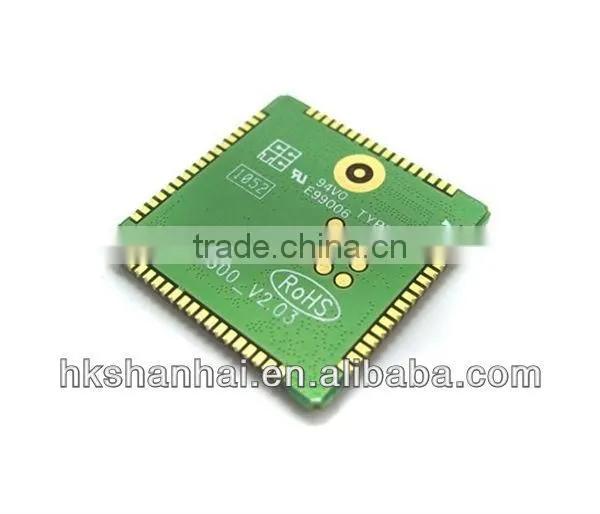

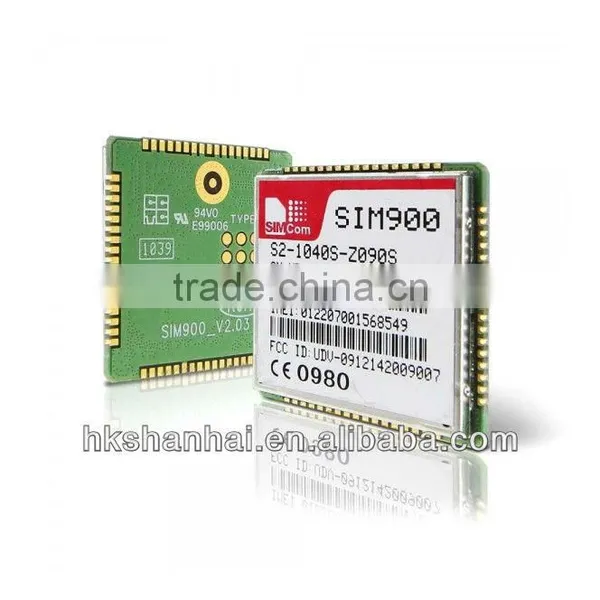

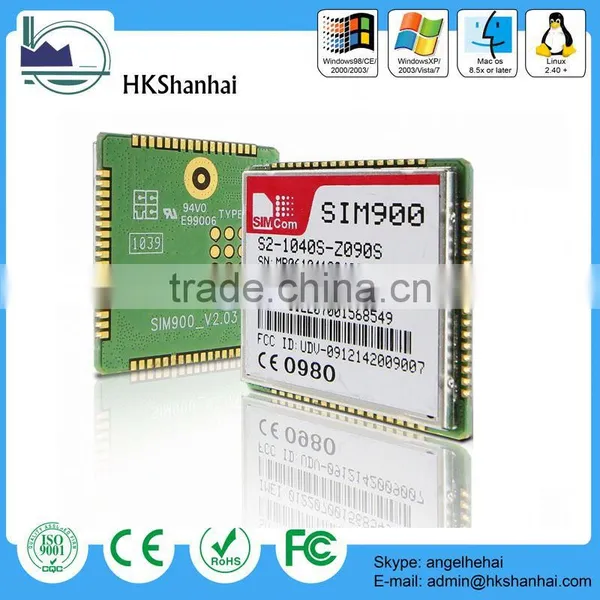

Competive price multi sim gsm modem sim900 gsm module with board
What is Features Competitive price muti sim gsm modem sim900 gsm module with board
What is Features of our Competive price multi sim gsm modem sim900 gsm module with board
Software features:
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP( available at late July ,2010)
* FOTA ( available at July ,2010)
* MMS (available at July ,2010)
* Embedded AT (available at Q3,2010)
Specifications for audio
* Tricodec
- Half rate (HR)
- Full rate (FR)
- Enhanced Full rate (EFR)
* Hands-free operation
(Echo suppression)
* AMR
- Half rate (HR)
- Full rate (FR)
Specifications for data transfer
GPRS class 8/10: max. 85.6 kbps (downlink)
PBCCH support
Coding schemes CS 1, 2, 3, 4
CSD up to 14.4 kbps
USSD
Non transparent mode
PPP-stack
Integrated TCP/IP stack
Specifications for Fax:
* Group 3, class 1 Specifications for Data
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
Specifications for SMS via GSM/GPRS:
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode
Interfaces
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Antenna pad
* I2C
* GPIO
* PWM
* ADC
Compatibility
* AT cellular command interface
Certificates:
* CE
* FCC
* ROHS
* PTCRB
* GCF
* IC
* IC
* ICASA
* TA
* REACH
What is Specifications Competitive price muti sim gsm modem sim900 gsm module with board
Specifications:
- 1)GSM/GPRS/GPS Combo module
- 2)SIM908 SIM908-C/SIM908C
- 3)Quad-Band 850/900/18001900MHz
- 4)integrated GPRS and GPS module
General features:
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
- Class 4 (2 W @850/ 900 MHz)
- Class 1 (1 W @ 1800/1900MHz)
* Dimensions: 24*24*3mm
* Weight: 3.4g
* Control via AT commands (GSM 07.07 ,07.05 and
SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range : 3.1 ... 4.8V
* Low power consumption: 1.5mA(sleep mode)
* Operation temperature: -40°C to +85 °C
*Auto water managermant
*Auto home alarm system
*whether report system
*Gas system
*Computer terminal equipment
*Radio
Product Photos
What is Packing Information of our 2014 new hot sale gsm module fast delivery technology support/ low price sim900 quad band module
What is application of our Competive price multi sim gsm modem sim900 gsm module with board
Our Certifications
What is Our Advantages?
1.Rapid response on any inquiry.
2.Competitive price.
3.Professional inspection department to guarantee quality.
4. we supply 1 year warranty , and free technology support .
FAQ(Frequently Asked Questions)
Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in metalized polypropylene film capacitor and polyesterfilm capacitor since 1986.
Q:How is your product quality?
A:We have the guarantee from the material,even every procedure,all our products are as good as the samples that send you free for testing.
Q:Can you make sure all of the products consistent?
A:Yes,we have passed the ISO9000 certification,all products will be as good as the samples.
Why choose Shenzhen shanhai technology Co;LTD ?
Professional:Since 2004 specailzed in GSM GPRS modem module
Honor: 5 Years old gold supplier of Alibaba,6 years old export experience
