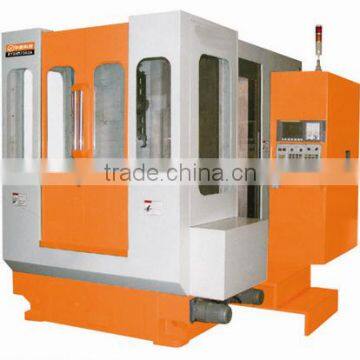

HYHM7060 uses international popular inverted T-shape uprights mobile structure, which is modern processing machine tool with aut

HYHM7060

CNC series horizontal machining center



Product adaptation:

HYHM7060 uses international popular inverted T-shape uprights mobile structure, which is modern processing machine tool with automatic tool changer and three/four linkage control system. Workpiece can milling, drill, enlarge, hank and tapping on four surface automatically and continuously after a clamping, apply to medium mass production of a variety of flat, holes, surfaces of complex shapes. It is ideal processing equipment for automotive manufacturing, aerospace and aviation, electronics industry, ordnance industry as it can save tooling, shorten production cycle, and improve processing strength.

The machine tool uses inverted T-shape, post mobile, and good rigidity.

The spindle adopts ample motor driving, that make torque large.

Indexing table is 1°X360, positioning by rat tooth plate and positioning accuracy is high.

NC rotary table is continuous indexing. It adopts INA plate type trust radial ball bearings imported from Germany to ensure a good transmission rigidity and stability, precision circular grating detection to ensure high positioning accuracy.

Three-way in feed drive chooses large inertia wide speed AC servo motor directly connected with the rolling screw. Couplings use Italy Sit Company’s no clearance couplings to achieve seamless transmission and rapid traverse of 15m/min due to it’s good rigidity and shock absorption greatly improve the dynamic stiffness of the transmission system.

Tool changer uses Taiwanese magazine cam robot, tool change time is short and performance is reliable.

Main parameters:

MMain specification

HYHM7060C

hH HYHM7060C1

HYHM7060C2

HYHM7060C3







Travel

X Travel

mm

700

Y Travel

mm

600

Z Travel

mm

600

Distance from spindle center line to working table surface



mm



100-700



80-680



100-700



800-680

Distance from spindle end face to working table surface



mm

50~750(BT40)

120~720(BT50)





Table

Table size

mm

500*500

Max. load

kg

500

Min. indexing angle

degree

1°x360 Rotary table

NC Rotary table 0.001°

T-slot

(Number*Width*Pitch)



5-18*100



Spindle

Spindle speed

 rpm

20-6000

Spindle taper



ISO7:24 Taper:No.40/50(Optional)

    Spindle diameter

 mm

φ80(BT40)φ100(BT50)

Spindle motor

 KW

9/11 (30min continuously)

Feed speed

Rapid traverse (X/Y/Z)

mm/min

15000

Cutting feed speed

mm/min

1-6000





ATC automatic tool changer

     Tool number



24/30/32/40

Type of tool handle/

draw bar



MAS403/BT40

MAS403/BT50(Optional)

Max.tool diameter/length/weight



φ77mm/320mm/8kg(BT40)

φ125mm/350mm/15kg(BT50)

Max. tool diameter

(no tool in neighbor)

mm

φ130(BT40)

φ200(BT50)

Tool selection way



Random

Tool change time

(tool to tool)

s

3



APC pallet change

Number of pallet

piece

2

Pallet change type



Rotary type

Pallet change time

  s

15

Other

Power capacity

KVA

20


Air source;Air pressure

MPA

250L/min  0.5-0.7MPa


Cutting liquid reservoirs capacity

L

260


Machine weight

(NW/GW)

kg

12000/13000

13000/14000

12000/13000

13000/14000


Carton size

mm

4920*2300*2700



Standard configuration:

24 disk cam manipulator magazine;

Rotary automatic chip removal device;

Cooling system (chip flutes);

Automatic lubrication;

Table indexing 1°x360;

Full protection.

Select configuration:

30 disk cam manipulator magazine;

40 disk cam manipulator magazine;

Bt50 spindle;

Chain slat automatic chip removal device;

Large flow cooling system;

Table indexing 5°x72;

Simple Protection;

Full-closed loop;

Spindle tool coolant system.

CNC system FANUC Oi-MD;

Display unit 8.4 liquid crystal;

Servo motor X:α12/3000i;

Z: α22/3000i;

Y: α30/3000i;

4-axis: α8/3000i;

Spindle servo motorαp18(9/11KW);

Hand-held operating unit.

CNC system SIEMENS 802D/810DE;

Display unit 10.4 liquid crystal;

Servo motor X:11Nm;

Z:18Nm;

Y:27Nm;

4-axis: 8Nm;

Spindle servo motor 1PH7 12/16KW;

Hand-held operating unit

(Electronic hand wheel).
