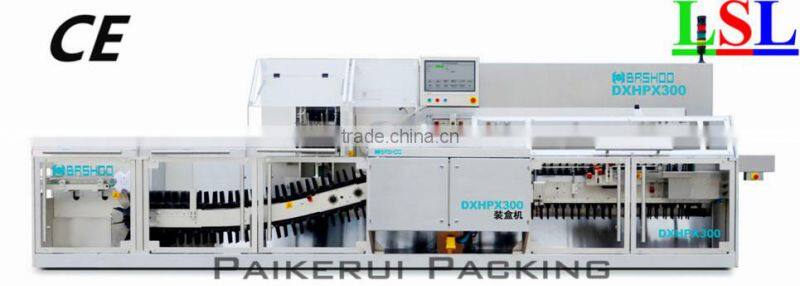

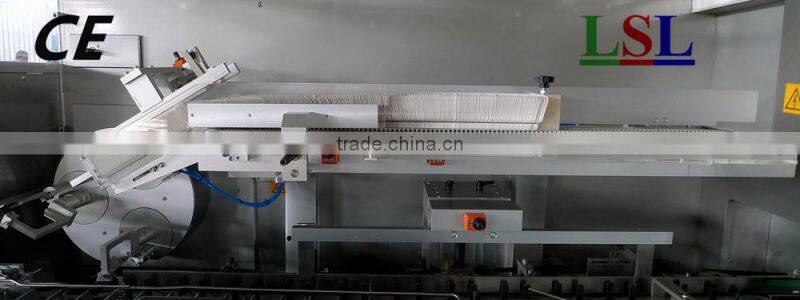

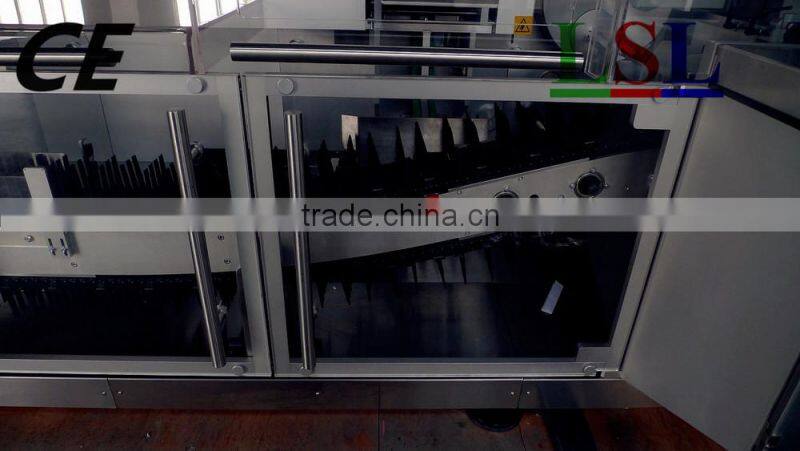

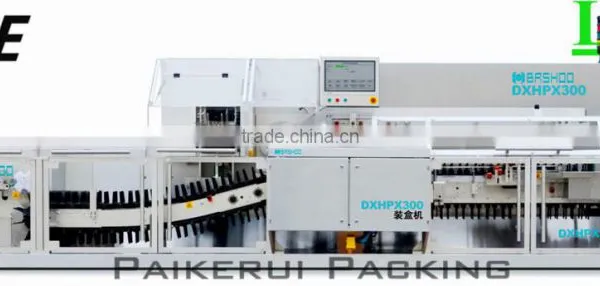

HIGH EFFICIENT CARTONING MACHINE
This machine is applied to pack drug board, bottle, tube, etc. Can fold the instructions automatically and accomplish box shaping and batch NO printing in the same time. According to the actual production, we will customize the most suitable feeding system for your products. Completely follow the GMP&FDA requirements.
GENERAL FEATURES
- Consistent with world advanced structure, ensure machine stability and rationality, keeping speed at 300box/min.

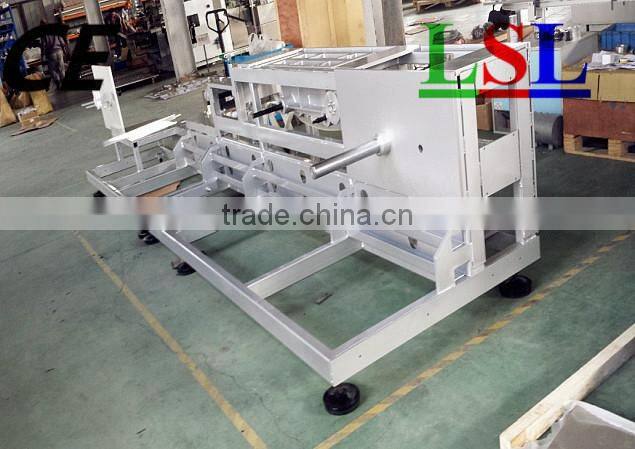

- Base frame adopts integrated steel welding, insure installation precision and smooth operation
- Occuply Germany BECKHOFF servomotor control system, enhance running stability.
- Using high quality HMI surface, display setting parameters and malfuction.
- Fits various of medicine plate, bottle, sachet, tube, aluminum board, cosmetic, food and electronic product pakcing.
PRODUCT |
DXHPX300 |
|
MAX capacity(box/min) |
300 |
|
BOX |
paper |
250—300g/m2 |
|
Dimension (mm) |
70~150 × 30~80 × 15~90 mm |
|
Instruction |
Paper |
55~65 g/m2 |
|
Dimension (mm) |
110~180 mm x 130~290 mm |
|
Electric |
AC380V/3Ph/ 50Hz Power: 7kW |
|
AIr |
Pressure:0.5~0.8 MPa consume:<1 m3/h |
|
Dimension (mm) |
5400×1800×1800mm |
|
Weight (kg) |
2500 |
|
90 DAYS SHIPMENT & FUMIGATING FREE WOODEN BOX
24 Hs Responding & Globle Trained Engineer Services
Shanghai Packing Machinery Co.,Ltd. owns independent RD department and adopts advanced technology and material from top level of suppliers .We mainly supply automatic counting and packing line machinery, which including bottle umcrabler, capping device, cap screwing, labeler, magnetism sealing and ect,.
Our products accuracy and speed is considerably reliable, we bold breakthrough in the structure and processing technology, making standardization and intensive concept of production cost control into pharmaceutical equipment filed effectively. It is able to decrease cost during production. We always comply with the requirements from clients and never stop innovating in excellent integrated services.
