1. ZK5140B and Z5140B-1 are universal drilling machine.the max drilling diameter is 40mm.
2.ZK5150B and Z5150B-1 Column Drill are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
Specification
Specification | Unit | Z5140B | Z5140B-1 | Z5150B | Z5150B-1 |
Max drilling diameter | mm | 40 | 50 | ||
Spindle taper | MT4 | MT5 | |||
Stroke of spindle quill | mm | 250 | |||
Spindle box travel(manual) | mm | 200 | |||
Spindle speed steps | 12 | ||||
Spindle speed range | r.p.m | 31.5-1400 | |||
Spindle feed steps | 9 | ||||
spindle feed range | mm/r | 0.056-1.80 | |||
Table size | mm | 560 x 480 | 800 x 320 | 560 x 480 | 800 x 320 |
Longitudinal/cross travel | mm | - | 450/300 | - | 450/300 |
Vertical travel | mm | 300 | |||
Max distance between spindle and table surface | mm | 750 | 550 | 750 | 550 |
Main motor power | kw | 3 | |||
Overall size | mm | 1090x905x2465 | 1300x1200x2465 | 1090x905x2465 | 1300x1200x2465 |
Net weight | kg | 1250 | 1350 | 1250 | 1350 |

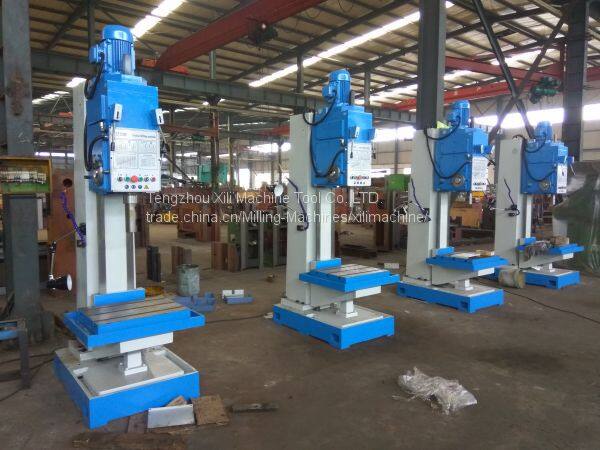

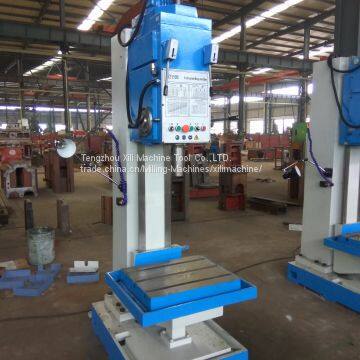

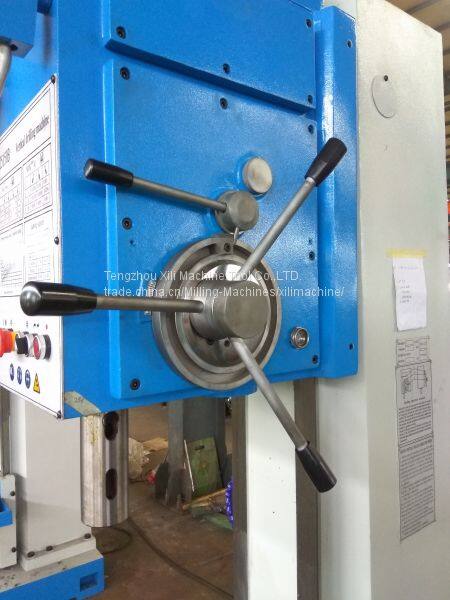

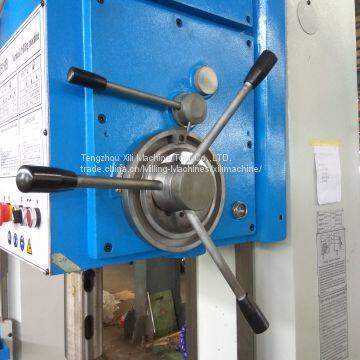

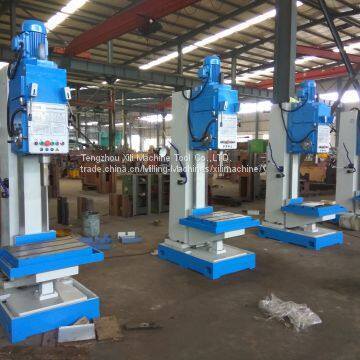

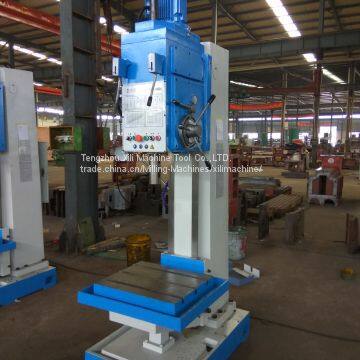

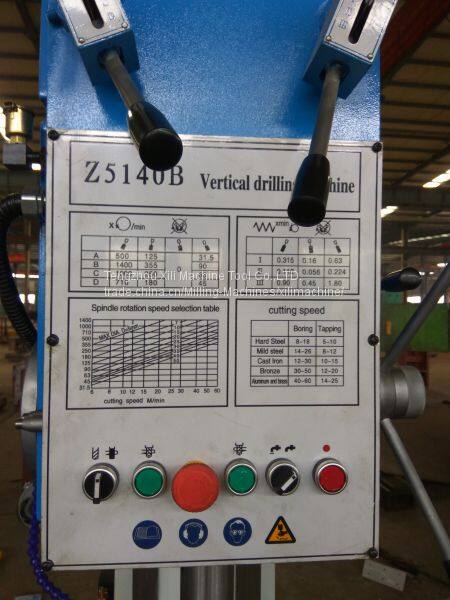

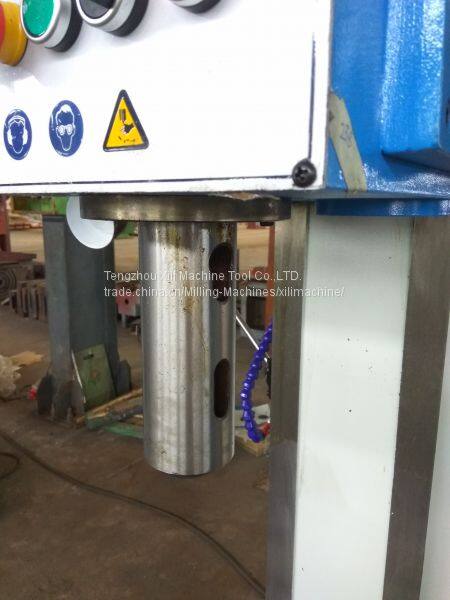

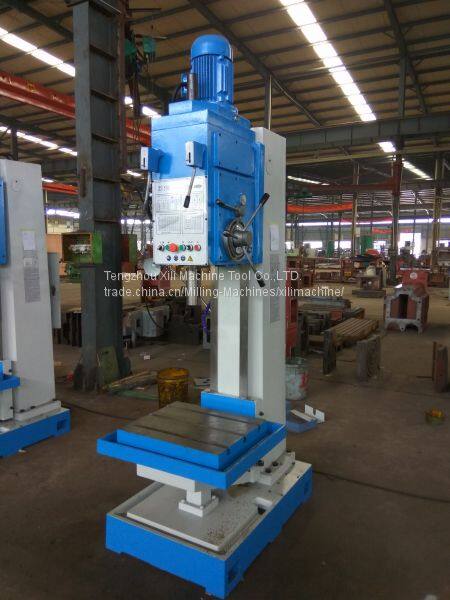

Photos of vertical drilling machine
Company information
Tengzhou Xili Machine Tool Co., Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer not trading company.All our products passed CE, ISO9001. Our main customer like: Germany KNUTH, Austria Bernardo. You can trust our quality and service.
Hope we can built long-term business relationship with you.
