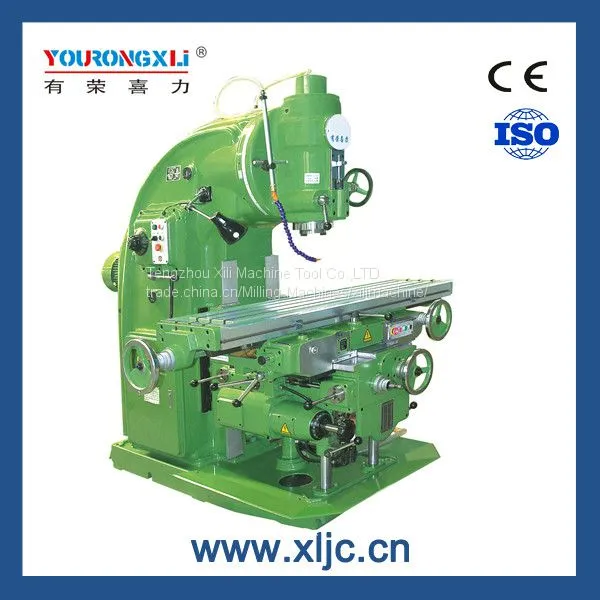

X5040 Vertical knee type milling machine
1.CNC System can be installed
2.4th axis:cnc rotary table, cnc dividing head is available
Specification
Specification |
Unit |
X5040 |
Table size |
mm |
400X1700 |
T-slots |
3/18/90 |
|
Longitudinal travel(manual/auto) |
mm |
900/880 |
Cross travel(manual/auto) |
mm |
315/300 |
Vertical travel(manual/auto) |
mm |
385/365 |
Rapid feed speed |
mm/min |
2300/1540/770 |
Max load |
kg |
800 |
Spindle taper |
7:24 ISO50 |
|
Spindle speed range |
r/min |
30~1500 |
Spindle speed step |
steps |
18 |
Spindle travel |
mm |
85 |
Max.swivel angle of vertical milling head |
±45° |
|
Distance between spindle nose and table surface |
mm |
115/500 |
Main motor Power |
kw |
11 |
Overall dimensions(L×W×H) |
mm |
2556×2159×2258 |
Net weight |
kg |
4250 |
Standard Accessories
Name |
Specification Model |
Qty |
Drawbar |
1set |
|
ISO50 Mill chuck |
4,5,6,8,10,12,14,16 |
8 pieces/set |
ISO50 Cutter arbor Cutter arbor |
φ40 |
1 piece |
7：24 The middle set of |
7：24 ISO50/MS4 |
1piece |
Oil gun |
1 piece |
|
Inner hexagon spanner |
6 |
1 piece |
Double-ended wrench |
17x19 |
1 piece |
Double-ended wrench |
22x24 |
1 piece |
Double-ended wrench |
27x30 |
1 piece |
Double-ended wrench |
32x36 |
1 piece |
Single head spanner |
14 |
1 piece |
Single head spanner |
50 |
1 piece |
Inner hexagonal wrench |
5 |
1 piece |
Inner hexagonal wrench |
8 |
1 piece |
Inner hexagonal wrench |
10 |
1 piece |

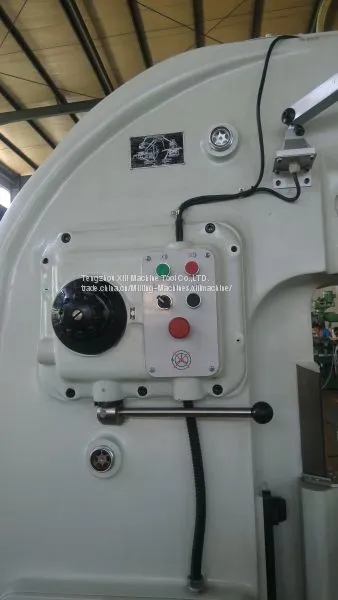

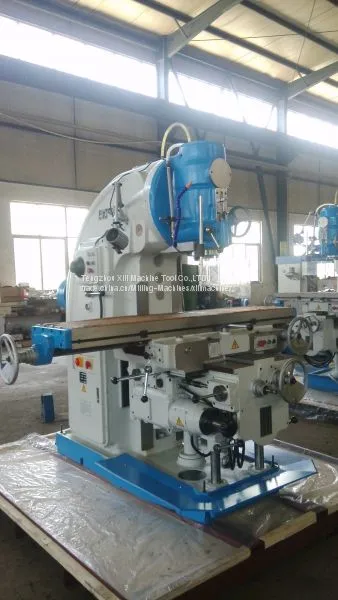

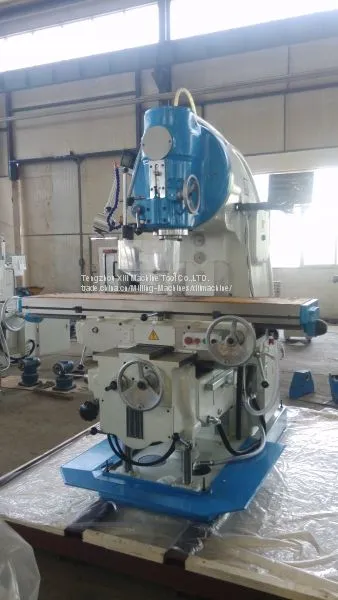

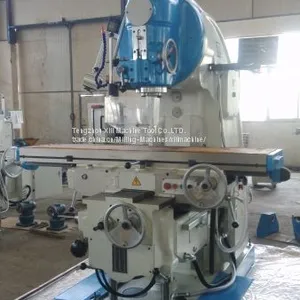

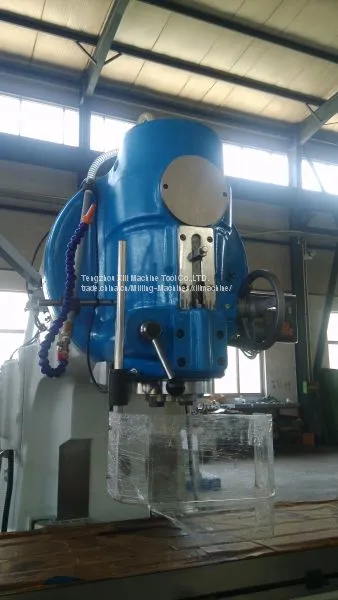

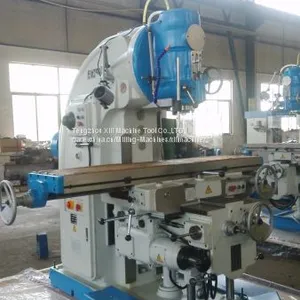

XL5040 Photos
Company information
Tengzhou Xili Machine Tool Co., Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer not trading company.All our products passed CE, ISO9001. Our main customer like: Germany KNUTH, Austria Bernardo. You can trust our quality and service.
Hope we can built long-term business relationship with you.
Our service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Any Question, Feel free contact me
Whatsapp: 86 15263023710
