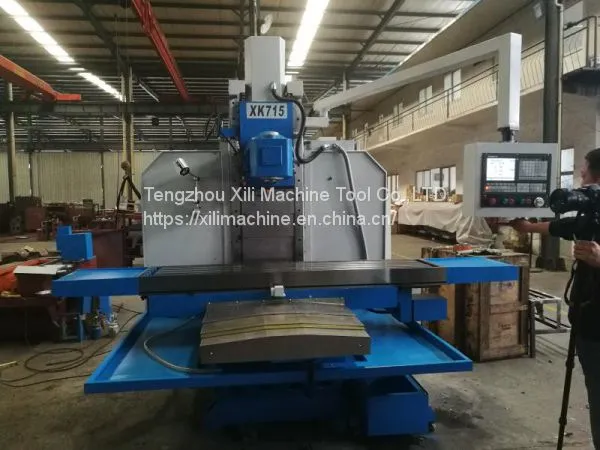

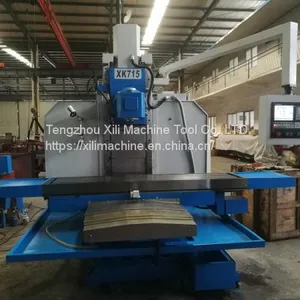

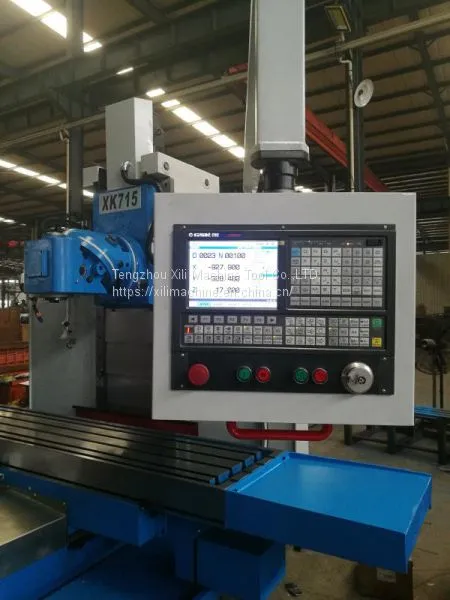

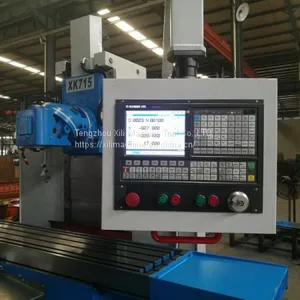

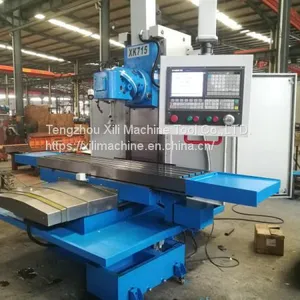

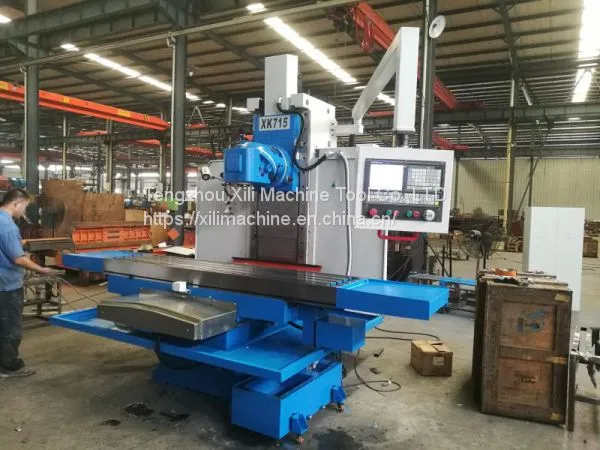

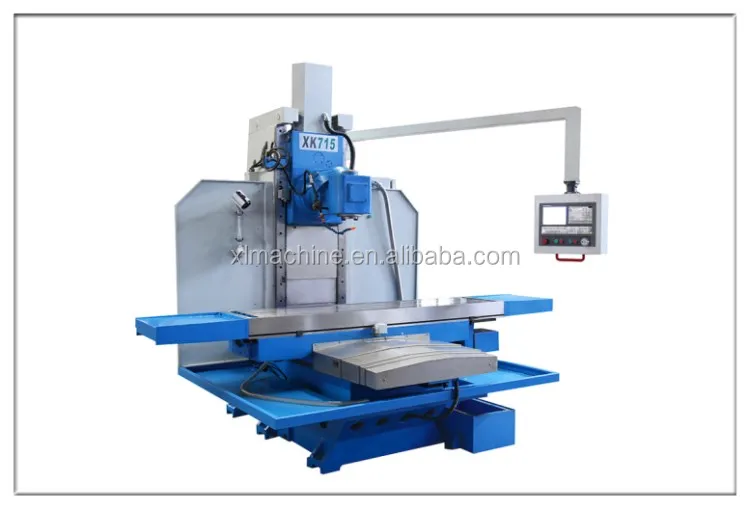

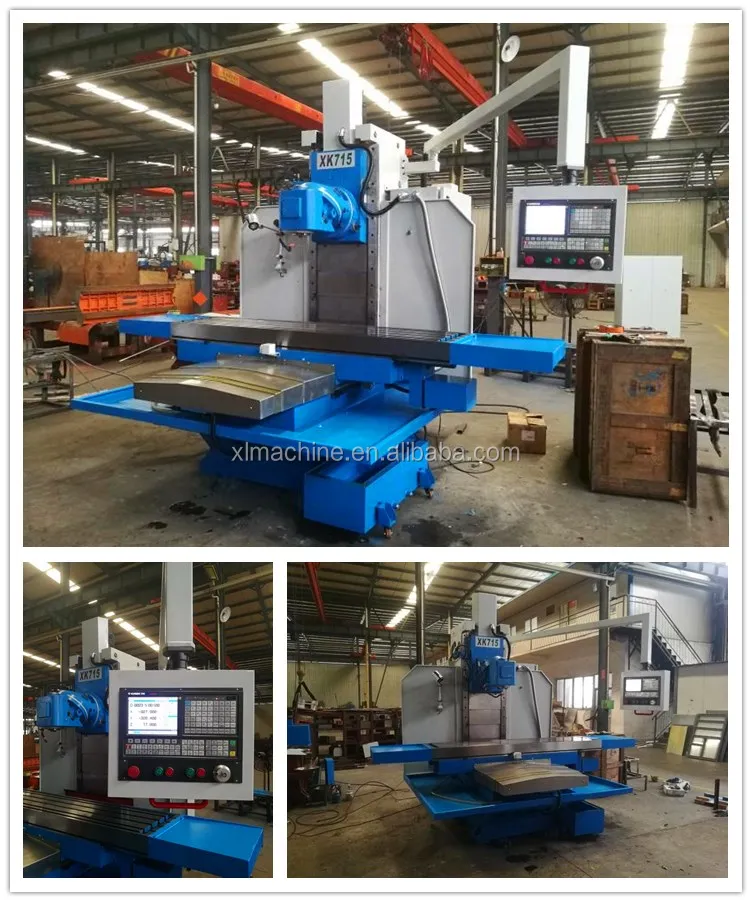

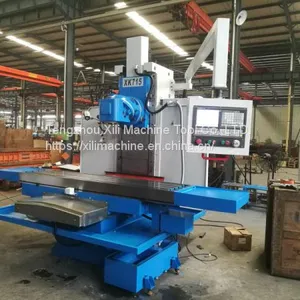

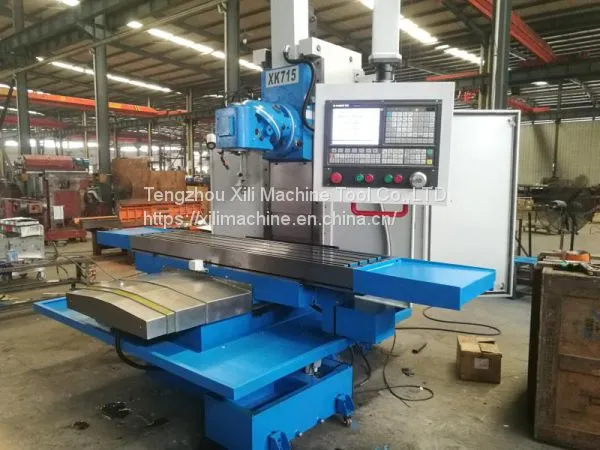

XK715 CNC bed type milling machine
1.Machine Features
(1). Variable spindle speeds in 2 steps
(2). Ball screws on X,Y and Z axes
(3). Servo motor on X, Y and Z axes
(4).X715 Bed type milling machine /Swivel head milling machiner is equipped with 3-axis digital readout system. It improves the machining accuracy and processing convenience.
2.Specifications of XK715 CNC bed type milling machine
Specifications |
Unit |
XK715 |
Spindle hole taper |
mm |
7:24 ISO50 |
Spindle speed range |
r/min |
Variable 6-300,30-1500 |
Distance between spindle axis and column guideway |
mm |
610 |
Distance between spindle nose and table surface(V) |
mm |
0-650 |
Distance between spindle axis and table surface(H) |
mm |
8-660 |
Table size |
mm |
2200*500 |
T slots |
mm |
4/20/100 |
Table travel-X |
mm |
1500 |
Table travel-Y |
mm |
650 |
Table feed-X/Y |
mm/min |
2.5-3000 |
Table feed-Z |
mm/min |
2.5-2500 |
Table rapid feed X/Y/Z |
mm/min |
6000/6000/3000 |
Main motor power |
Kw |
11 |
Torque of X/Y/Z axis AC servo motor |
Nm |
18/23/18 |
Cooling pump motor power |
w |
90 |
Overall size |
mm |
3220*2420*2800 |
weight |
kg |
7300 |

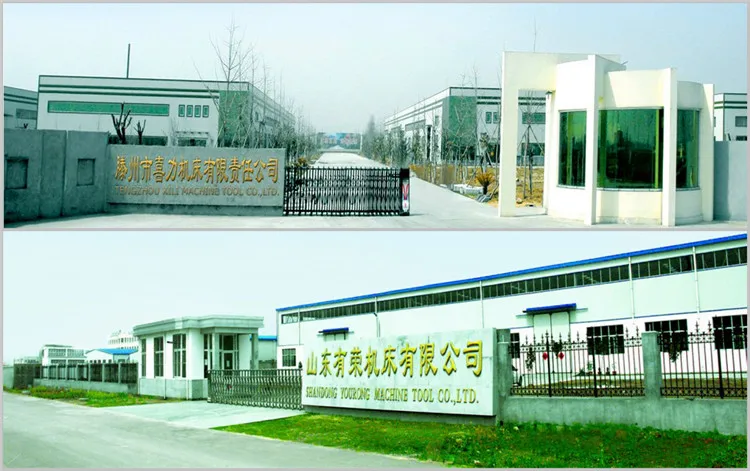

3.Factory of XILI Machine Tool
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. are one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience, only focus on milling machines.
We are manufacturer. All our products passed CE, ISO9001.
Hope we can built long-term business relationship with you.
4.Certification
5.Team work and Client.
6.Contact Us
WeChat: 152 6302 3710
